Olivetti d-Color MF201 Service Manual

20. Parts layout drawing Field Service Ver. 1.0 Jun. 2008
370
Appendix

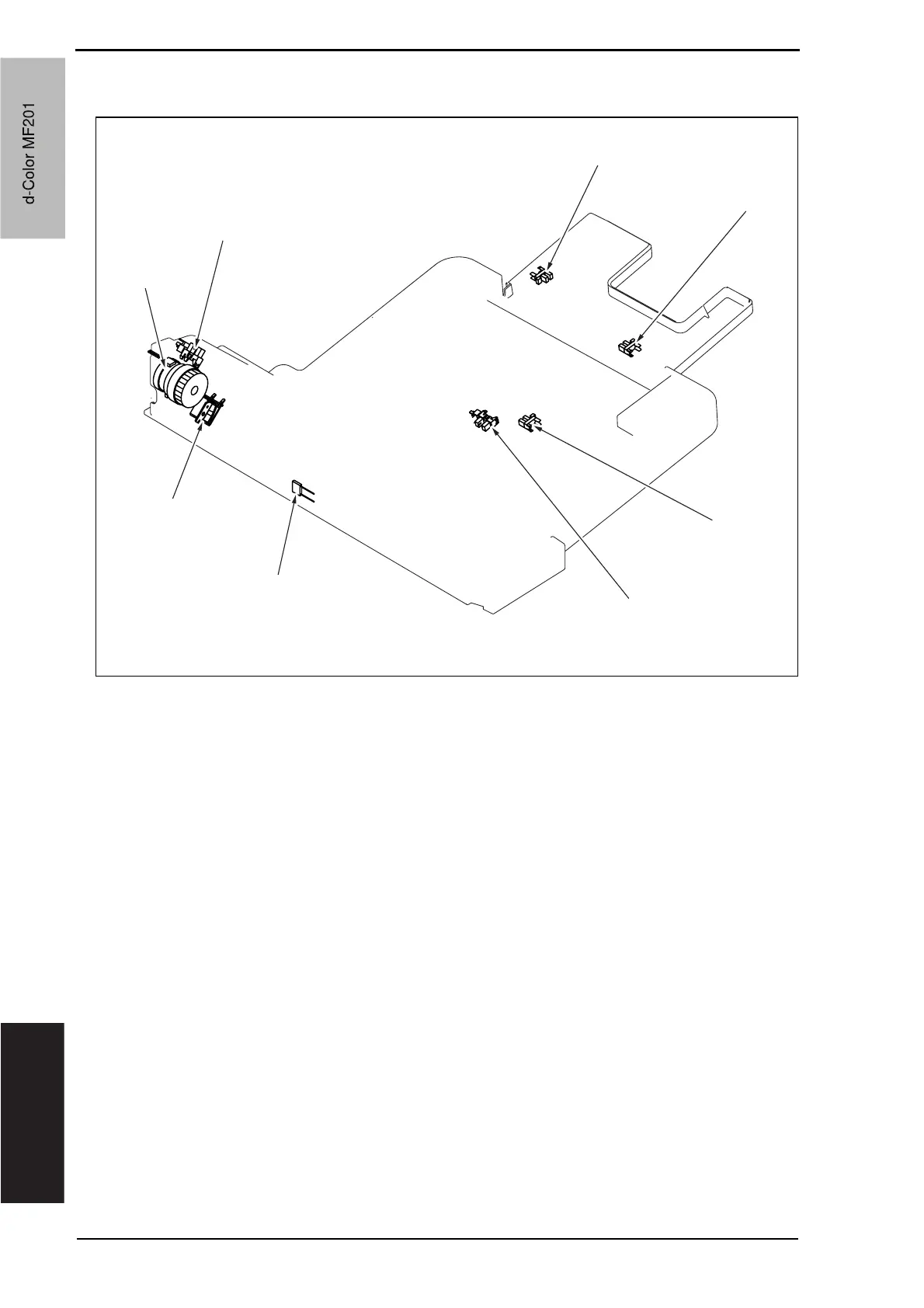

20.3 MB-502 (option)
[1] FD size sensor/3 (PS22) [5] Paper width detection resistor (VR1)
[2] FD size sensor/2 (PS21) [6] Manual pick-up solenoid (SD2)
[3] FD size sensor/1 (PS20) [7] Paper feed clutch (CL5)
[4] Paper empty sensor (PS13) [8] Lift-up position sensor (PS14)
A0EPF5C500DA
[4]
[3]
[2]
[1]
[5]
[6]
[8]
[7]
d-Color MF201
Service Manual Y109660-1
d-Color MF201
