Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
82
Maintenance

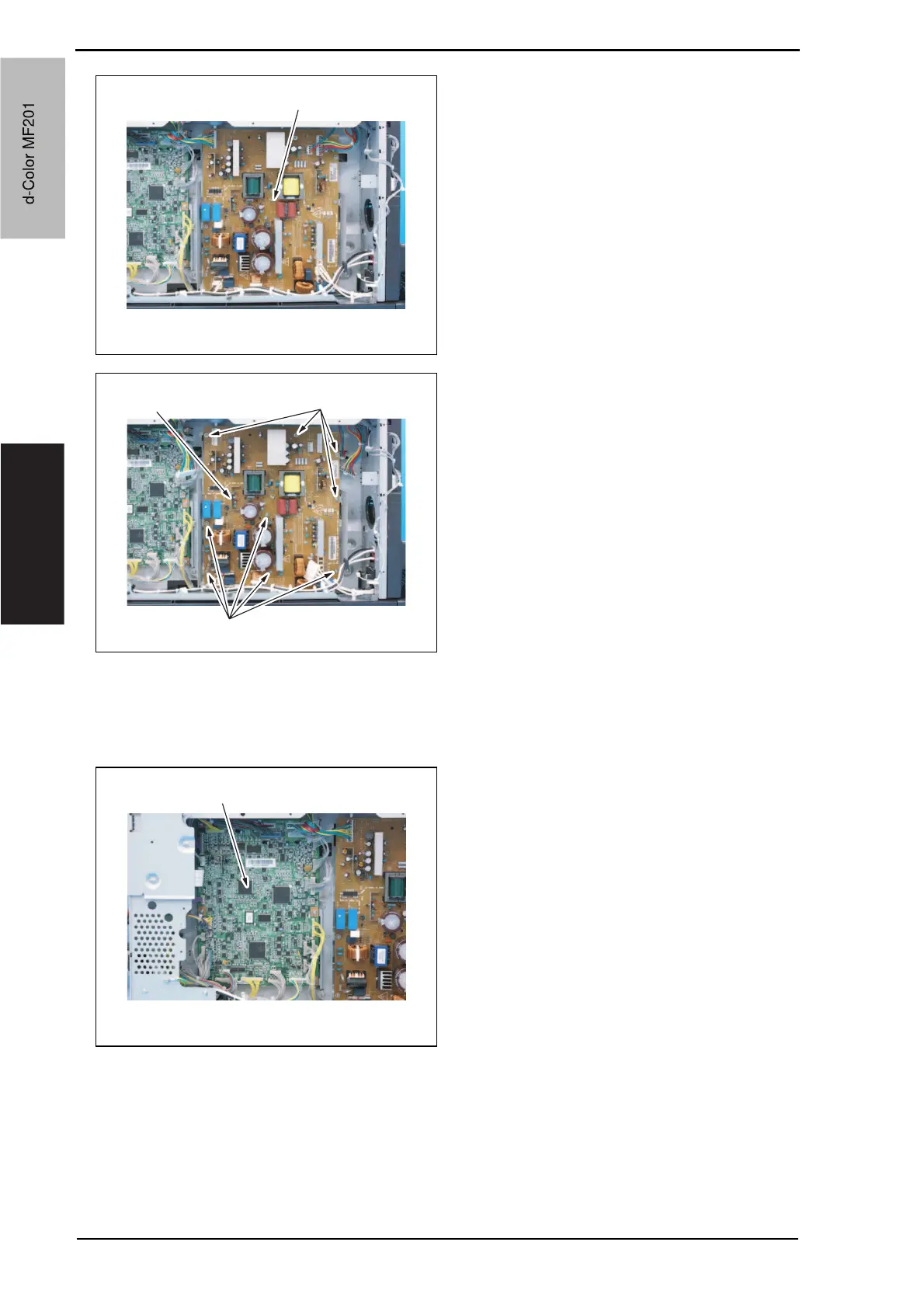

5. Remove all the connectors on the
DC power supply [1].
6. Remove nine screws [1], and remove
the DC power supply [2].
6.3.35 Printer control board (PRCB)
1. Remove the left shield cover.
See P.42
2. Remove all the connectors on the
printer control board [1].
A02FF2C070DA
[1]
A02FF2C071DA
[1]
[2] [1]
A02FF2C072DA
[1]
d-Color MF201
Service Manual Y109660-1
