Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 6. Other
95
Maintenance

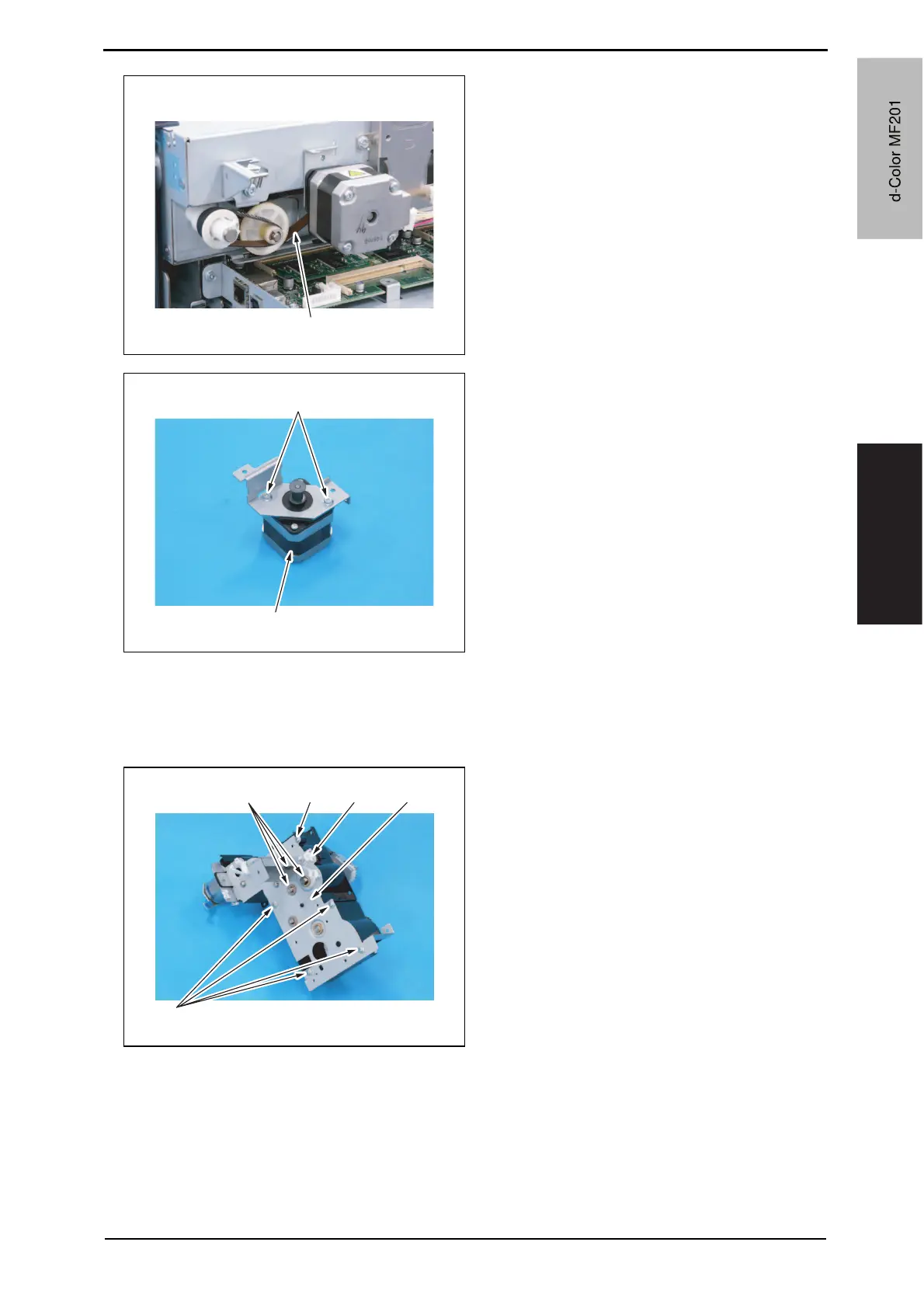

6. Remove the belt [1] hanging on the
motor.
7. Remove two screws [1], and remove
the scanner motor [2].
6.3.50 Transfer belt pressure retraction clutch (CL3)
1. Remove the fusing drive unit.
See P.67
2. Disconnect the connector [2],
remove three E-rings [1] and five
screws [3], and remove the metal
plate [4].
A02FF2C118DA
[1]
A02FF2C119DA
[1]
[2]
A02FF2C085DA
[1]
[2]
[3]
[3]
[4]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
