Olivetti d-Color MF201 - 16 Jam Display

Field Service Ver. 1.0 Jun. 2008 16. Jam display
277
Troubleshooting
Troubleshooting
16. Jam display

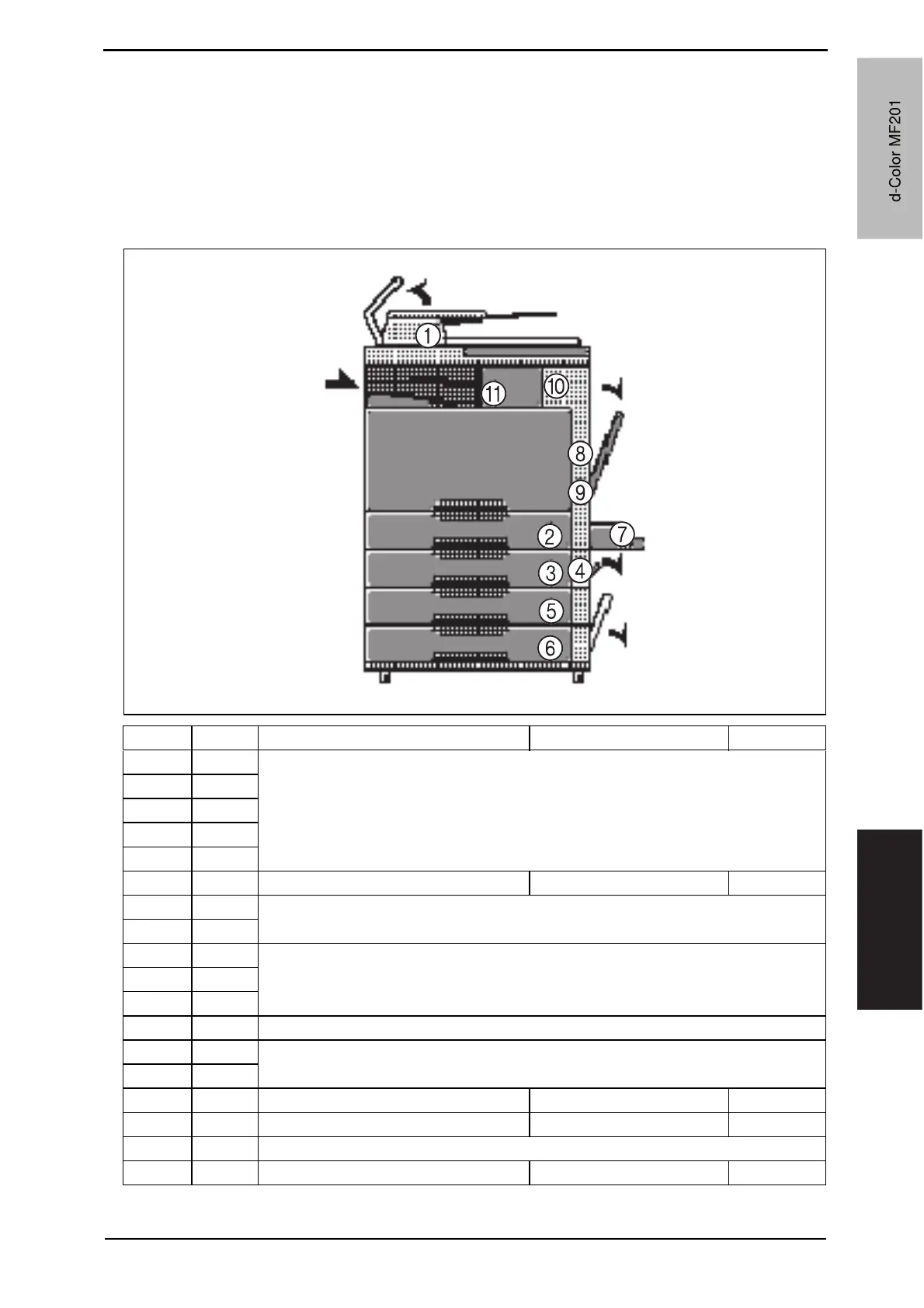

16.1 Misfeed display
• When a paper misfeed occurs, the misfeed message, misfeed location, and paper loca-
tion are displayed on the control panel of the machine.
Display Code *1 Jam type Misfeed processing location Action
[1] 6601 See P.43 of the DF-612/SP-503/MS-501 service manual.
[1] 6602
[1] 6603
[1] 6604
[1] 6605
[2] 1101 Misfeed at tray 1 feed section Right door P. 2 8 1
[3] 1201 See P.29 of the PC-105 service manual.
[4] 2001
[5] 1301 See P.23 of the PC-104/204 service manual.
[4] 2001
[6] 1401
[7] 1001 See P.21 of the MB-502 service manual.
[8] 9201 See P.15 of the AD-505 service manual.
[8] 9301
[9] 3001 Misfeed at 2nd image transfer section Right door P. 2 8 2
[10] 3201 Misfeed at exit section Right door P. 2 8 3
[11] 7216 See P.19 of the JS-505 service manual.
 9901 Controller jam  P. 2 8 4
