17. Malfunction code Field Service Ver. 1.0 Jun. 2008
290
Troubleshooting
17.3 Trouble code

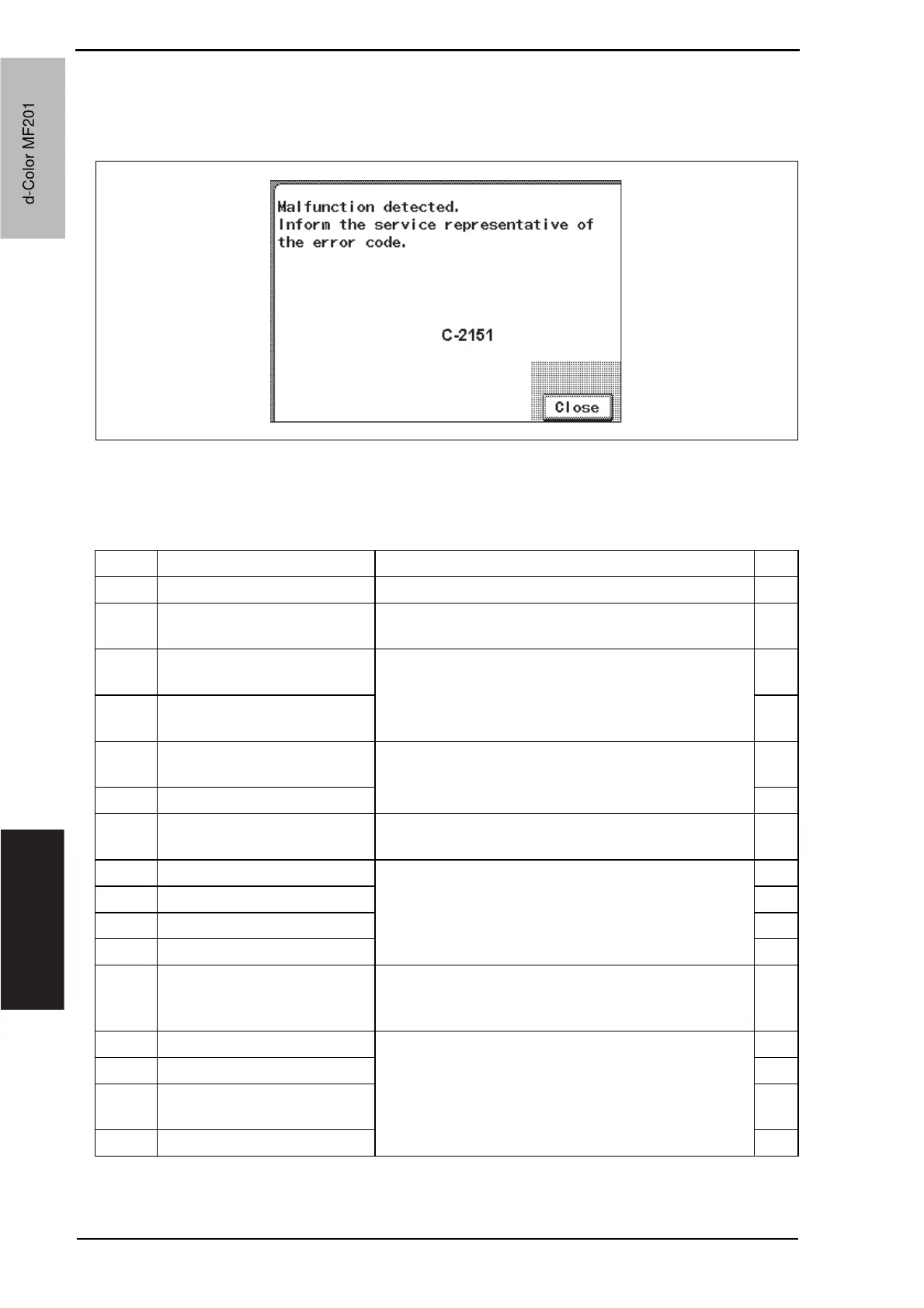

• The machine’s CPU performs a self-diagnostics function that, on detecting a malfunction,
gives the corresponding malfunction code on the control panel.
17.3.1 Trouble code list
* For the details of the malfunction codes of the options, see the Service Manual for the cor-
responding option.
A02FF4E505DA
Code Item Detection timing
Rank
C0001 LCT connection failed See P.33 of the PC-405 service manual. C
C0204 Tray 2 feeder up/down
abnormality
See P.33 of the PC-105 service manual.
B
C0206 Tray 3 feeder up/down
abnormality
See P.28 of the PC-104/204 service manual.
B
C0208 Tray 4 feeder up/down
abnormality
B
C0209 LCT elevator motor
malfunction
See P.33 of the PC-405 service manual.
B
C0210 LCT ascent motion failure B
C0211 Manual feed up/down
abnormality
See P.24 of the MB-502 service manual.
B
C0212 LCT ejection failure See P.33 of the PC-405 service manual. B
C0213 LCT shift gate malfunction B
C0214 LCT shifting failure B
C0215 LCT shift motor malfunction B
C0301 Suction fan motor’s failure to
turn
• The fan lock signal remains HIGH for a predeter-
mined continuous period of time while the motor
remains stationary.
B
C1004 FNS communication error See P.23 of the JS-505 service manual. C
C1182 Shift motor mechanism failure B
C11A1 Finishing option exit roller
pressure/retraction failure
B
C11E0 Route switch malfunction B
d-Color MF201
Service Manual Y109660-1
d-Color MF201
To Next Page
