3. Periodical check Field Service Ver. 1.0 Jun. 2008
22
Maintenance

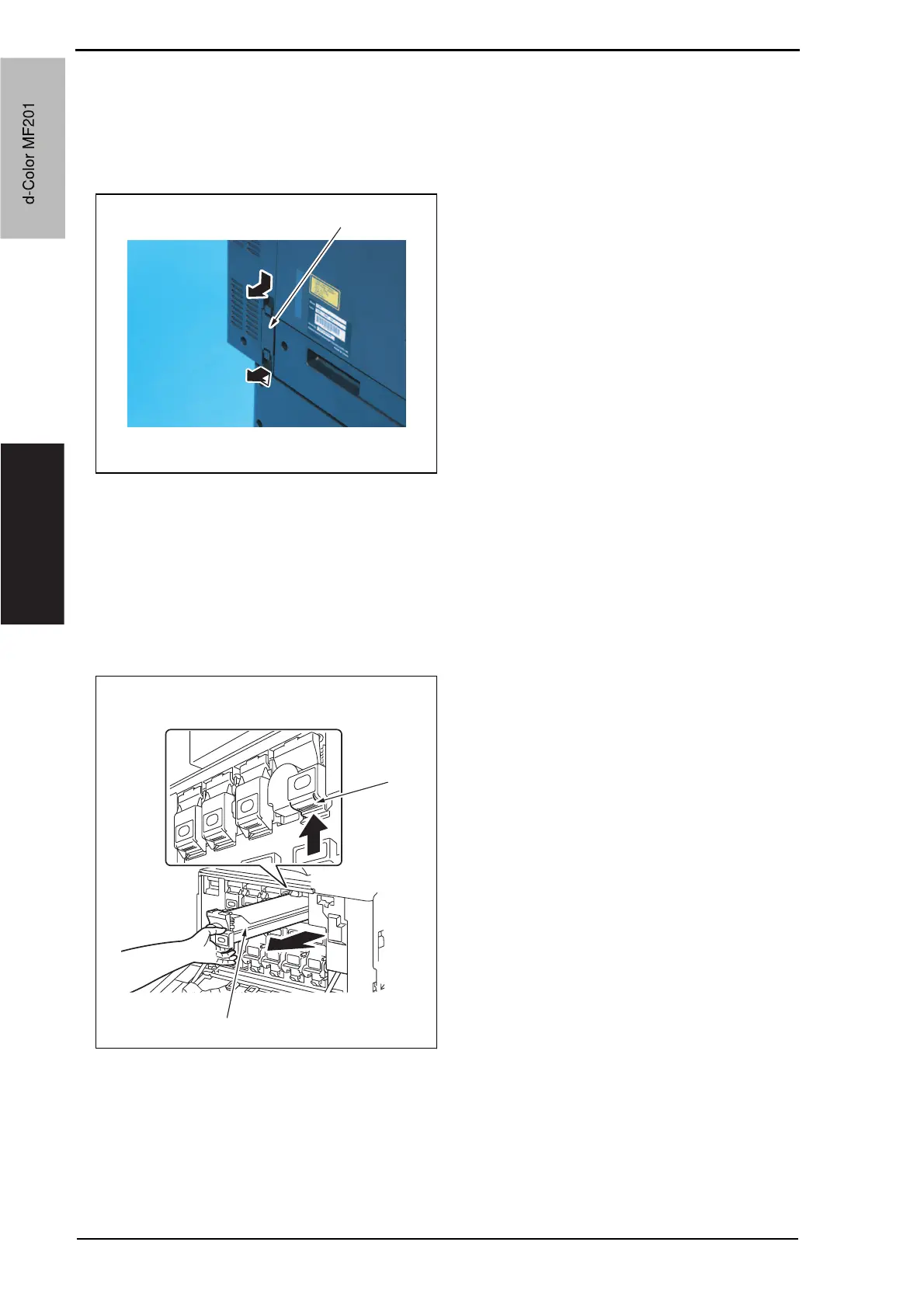

3.4.6 Replacing the ozone filter
A. Periodically replacing parts/cycle
• Ozone filter: Every 120,000 prints
B. Procedure
1. Grip the handle on the ozone filter [1]
and slide it out of the main body.
3.4.7 Replacing the toner cartridge
A. Periodically replacing parts/cycle
• Toner cartridge Y,M,C : Every 18,500 prints
• Toner cartridge K : Every 24,000 prints
B. Removal procedure
1. Open the front door.
2. Pull up the locking tab [2] of the
empty toner cartridge [1] to unlock it.
3. Pull out the toner cartridge [1] as far
as possible, and then pull it up to
remove it.
A02FF2C005DA
[1]
A02EF2C517DA
[2]
[1]
d-Color MF201
Service Manual Y109660-1
