Maintenance
6.3.55 Scanner drive wires
A. Removal procedure
1. Remove the original glass assy.
See P.51
2. Remove the ADF glass assy.
See P.52
3. Remove the IR rear cover.
See P.44
4. Remove the IR left cover.
See P.50
5. Remove the IR right cover.
See P.51
6. Remove the exposure unit.
See P.74
7. Remove the scanner motor.
See P.94

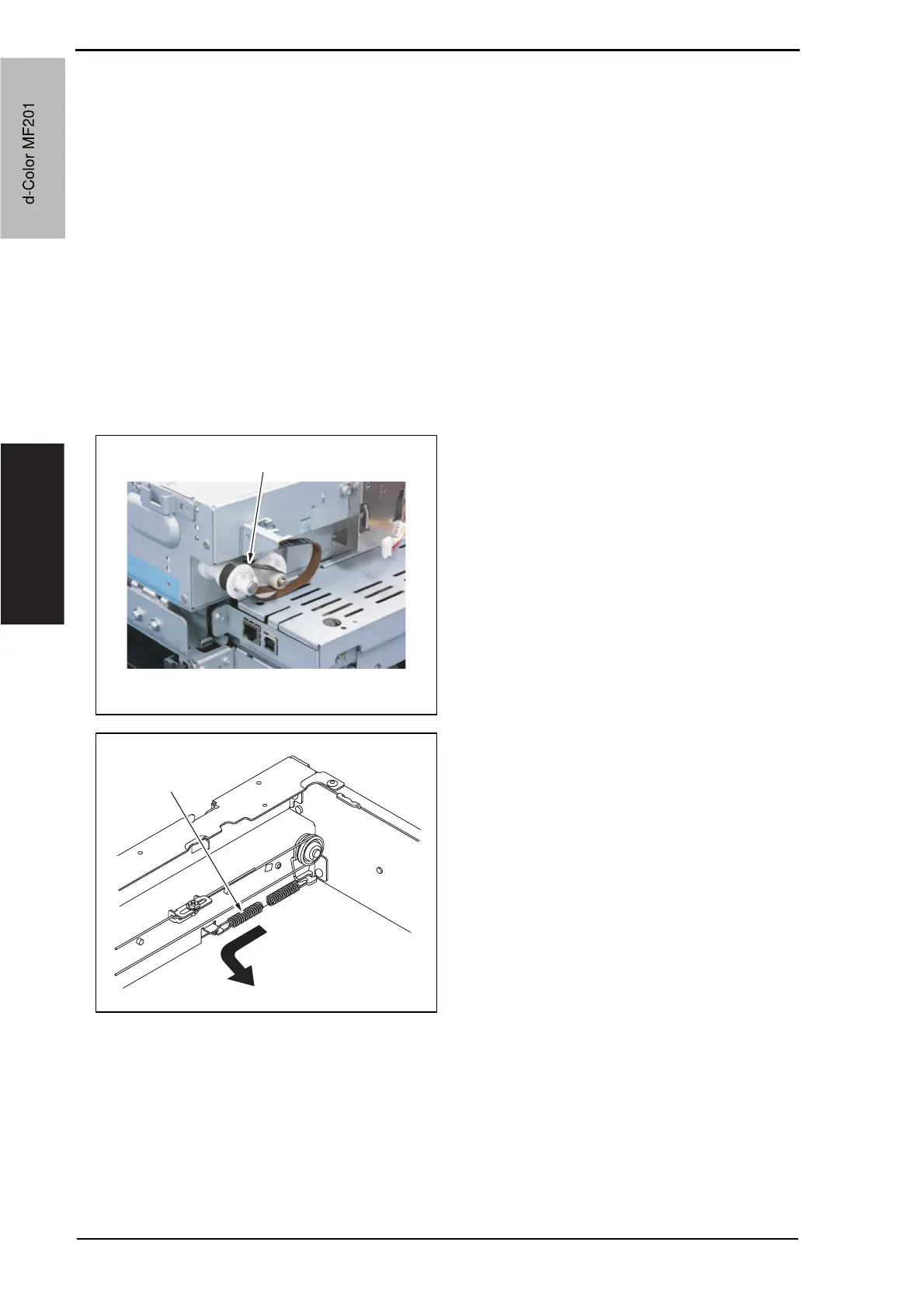

8. Remove the timing belt [1].
9. Remove the pulley springs [1] of the
drive pulley (both front and rear).
10. Remove the scanner drive wires
along the route.
A02FF2C129DA
[1]
A02FF2C518DA
[1]
d-Color MF201
Service Manual Y109660-1
