Field Service Ver. 1.0 Jun. 2008 6. Other
101
Maintenance

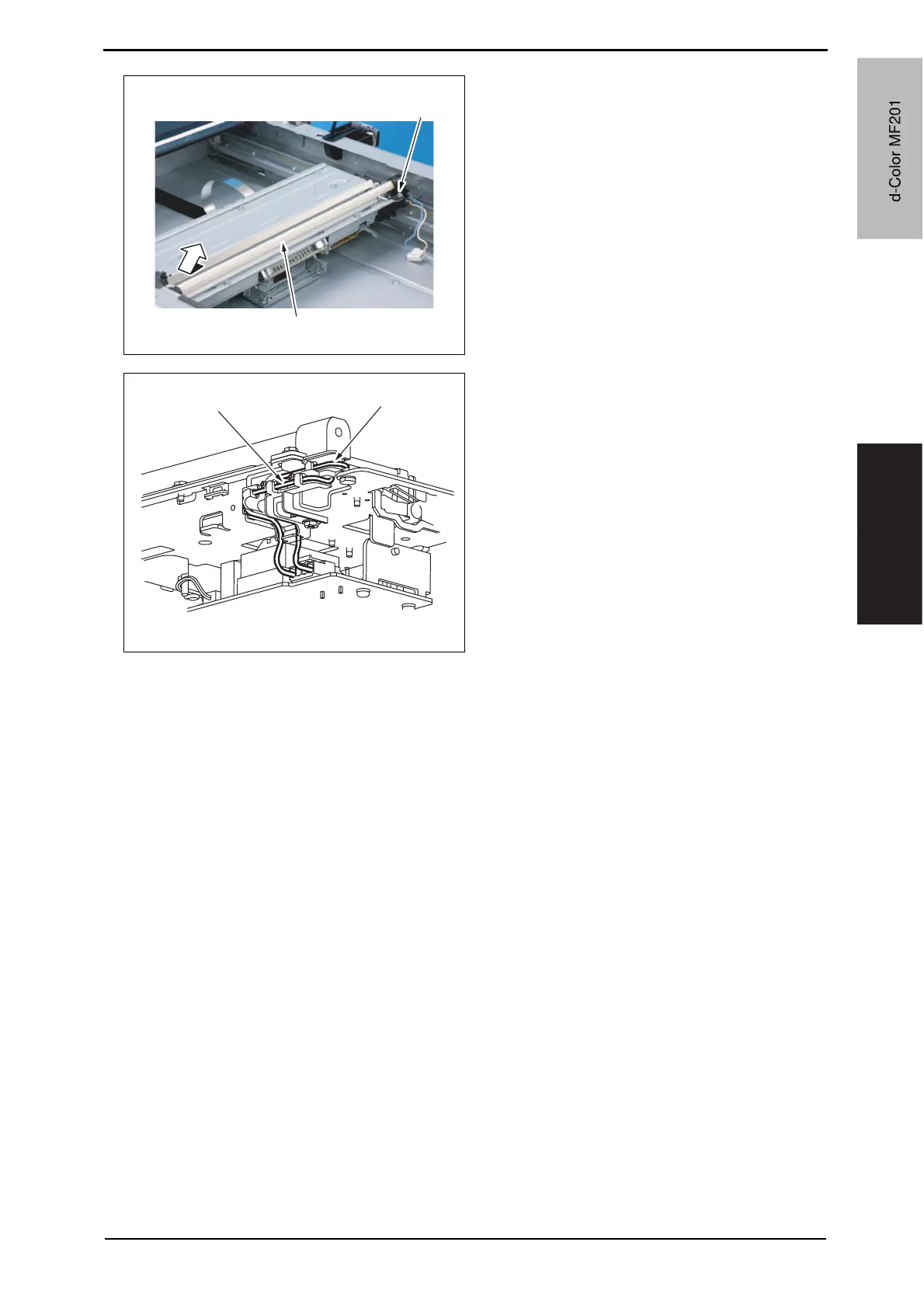

6. Remove the screw [1], and remove
the exposure lamp [2].
7. To reinstall, reverse the order of
removal.
NOTE
• Take care so as not to mistake the
blue and white routing of the lamp
cables.
A02FF2C128DA
[1]
[2]
A02FF2C517DA
White
Blue
d-Color MF201
Y109660-1 Sevice Manual
