Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
46
Maintenance
6.3.12 Control panel assy

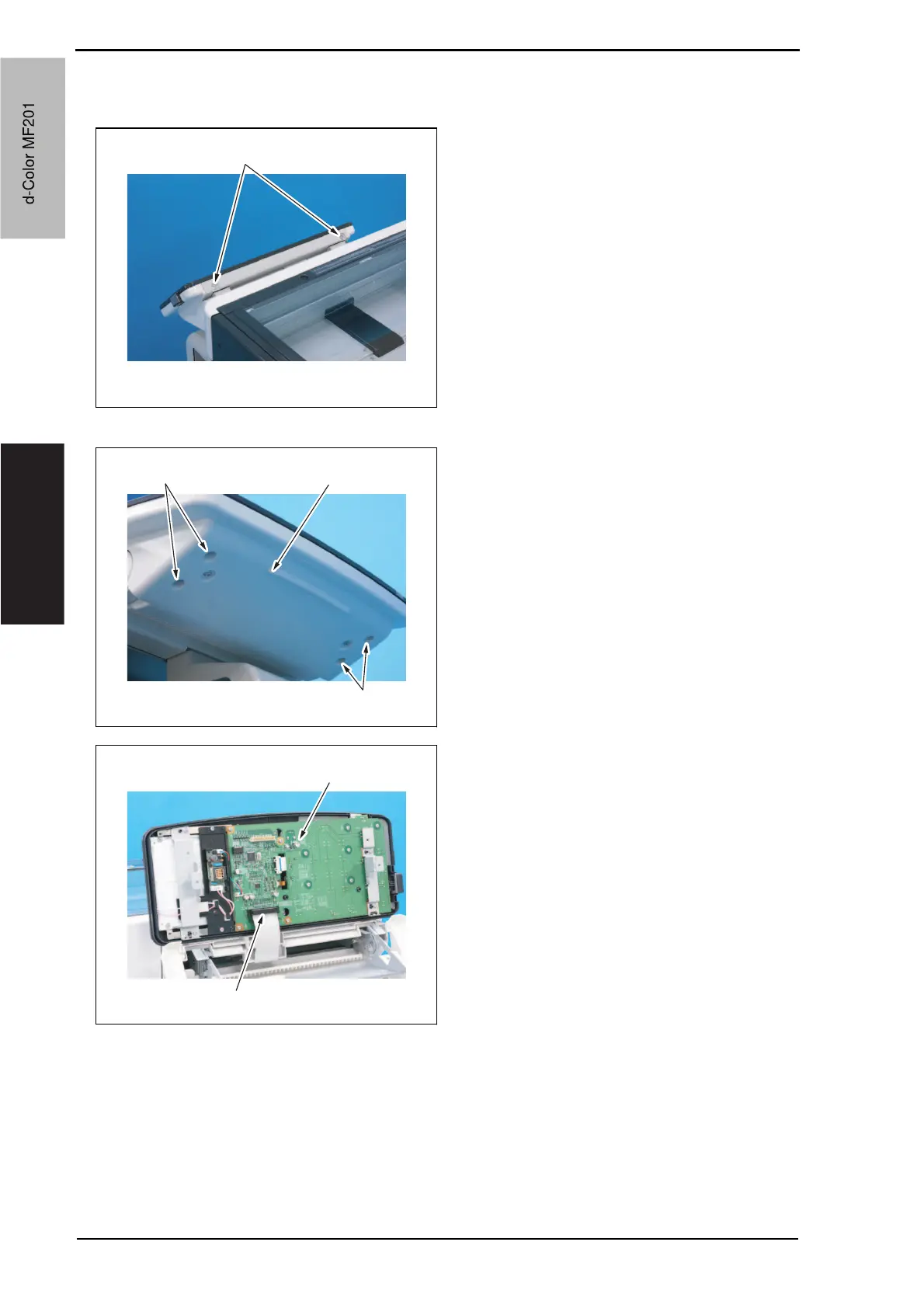

1. Lower the control panel down to the bottommost position.
2. Remove two screws [1].
3. Raise the control panel to the topmost position.
4. Remove four screws [1], and remove
the control panel lower cover [2].
5. Disconnect the connector [1] of the
flat cable, and remove the control
panel assy [2].
A02FF2C025DA
[1]
A02FF2C026DB
[1]
[1]
[2]
A02FF2C027DA
[1]
[2]
d-Color MF201
Service Manual Y109660-1
