3. Periodical check Field Service Ver. 1.0 Jun. 2008
28
Maintenance
3.4.12 Cleaning of the exposure lamp
A. Periodically cleaning parts/cycle
• Exposure lamp: Every 120,000 sheets scan
B. Procedure
1. Remove the original glass assy.
See P.51

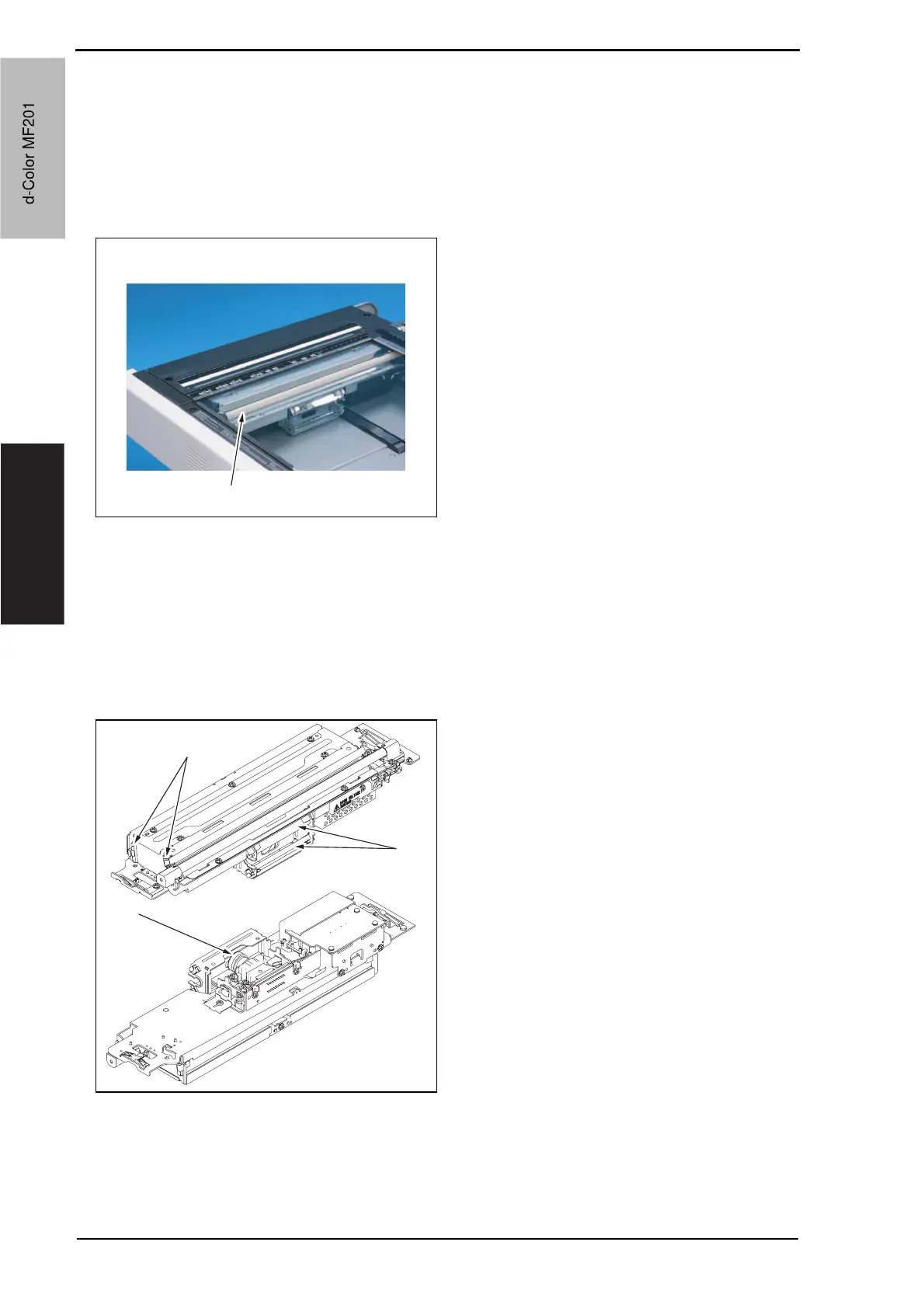

2. Wipe the exposure lamp [1] clean of
dirt using a cleaning pad.
3.4.13 Cleaning of the each mirror and the lens
A. Periodically cleaning parts/cycle
• Each mirror and lens: Every 120,000 sheets scan
B. Procedure
1. Remove the exposure unit.
See P.74
2. Wipe the each mirror [1] and the lens
[2] clean of dirt using a cleaning pad.
A02FF2C533DA
[1]
A02FF2C534DA
[2]
[1]
[1]
d-Color MF201
Service Manual Y109660-1
