Olivetti d-Color MF201 - PC-405 (Option)

Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
373
Appendix

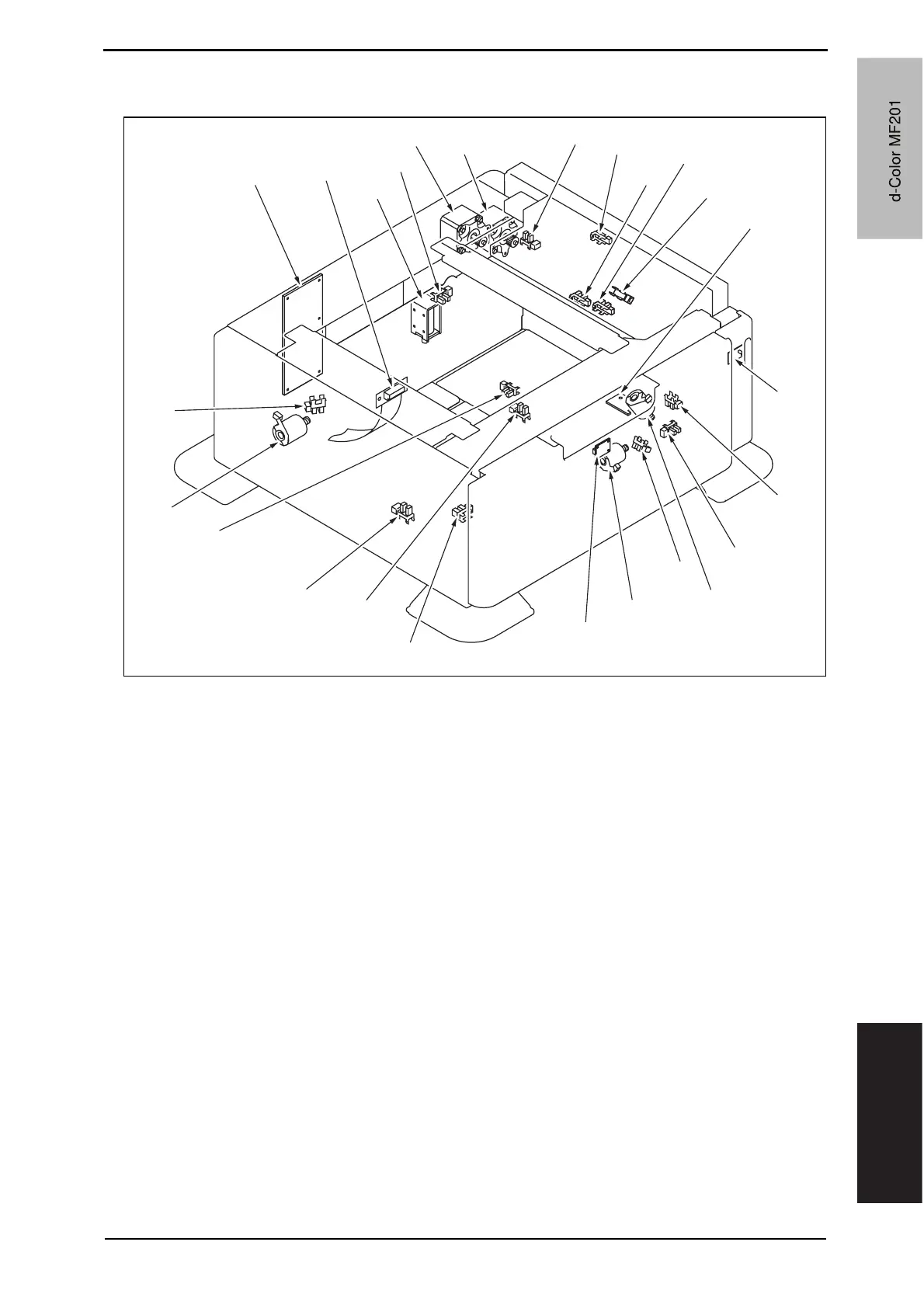

20.6 PC-405 (option)
[1] Door sensor (PS5) [14] Shift tray empty sensor (PS9)
[2] Vertical transport sensor (PS2) [15] Shift tray stop sensor (PS11)
[3] Lift-up upper sensor (PS4) [16] Shift tray home sensor (PS12)
[4] Paper empty sensor (PS3) [17] Lift-up lower sensor (PS13)
[5] Paper feed sensor (PS1) [18] Division board position motor (M3)
[6] Main tray paper empty board (MTPEB) [19] Division board position sensor (PS14)
[7] Paper feed tray3 paper empty indicator board
(PEIB/1)
[20] PC control board (PCCB)
[8] Elevator motor pulse sensor (PS10) [21] Relay board (REYB)
[9] Lower over run sensor (PS7) [22] Tray lock solenoid (SD1)
[10] Elevator motor (M5) [23] Cassette open sensor (PS6)
[11] Shift motor pulse sensor (PS8) [24] Paper feed motor (M1)
[12] Shift motor (M4) [25] Vertical transport motor (M2)
[13] Manual down control board (MDCB)
A093F5E503DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
