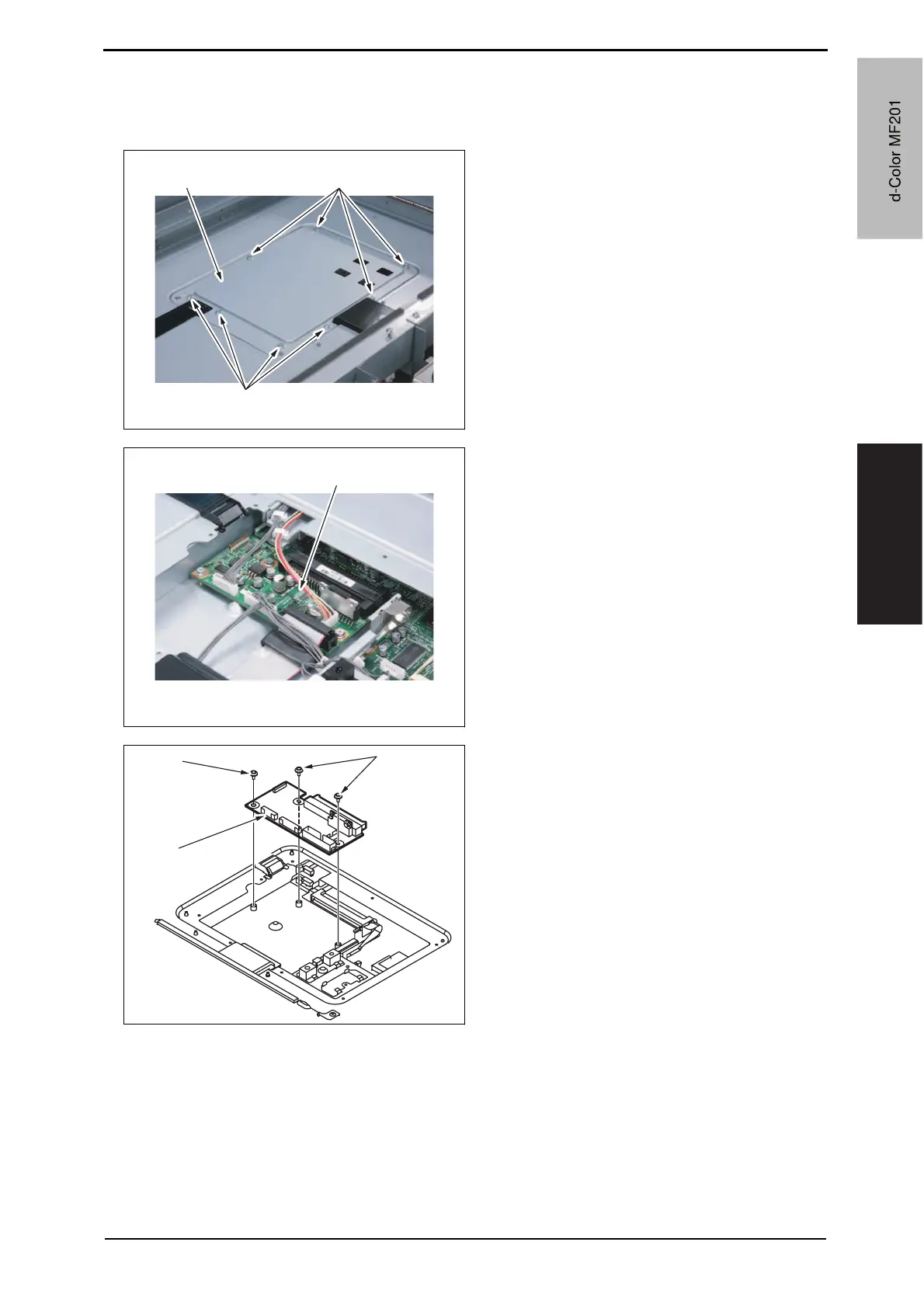

6.3.41 BCRU board (BCRUB)
1. Remove the original glass assy.
See P.51
2. Remove eight screws [1], and
remove the BCRU shield cover [2].
3. Disconnect all connectors and flat
cables on the BCRU board [1].
4. Remove three screws [1], and
remove the BCRU board [2].
A02FF2C101DA
[1]
[1]
[2]
A02FF2C121DA
[1]
A02FF2C512DA
[1]
[2]
[1]
d-Color MF201
Y109660-1 Sevice Manual
