Olivetti d-Color MF201 Service Manual

6. Other Field Service Ver. 1.0 Jun. 2008
88
Maintenance

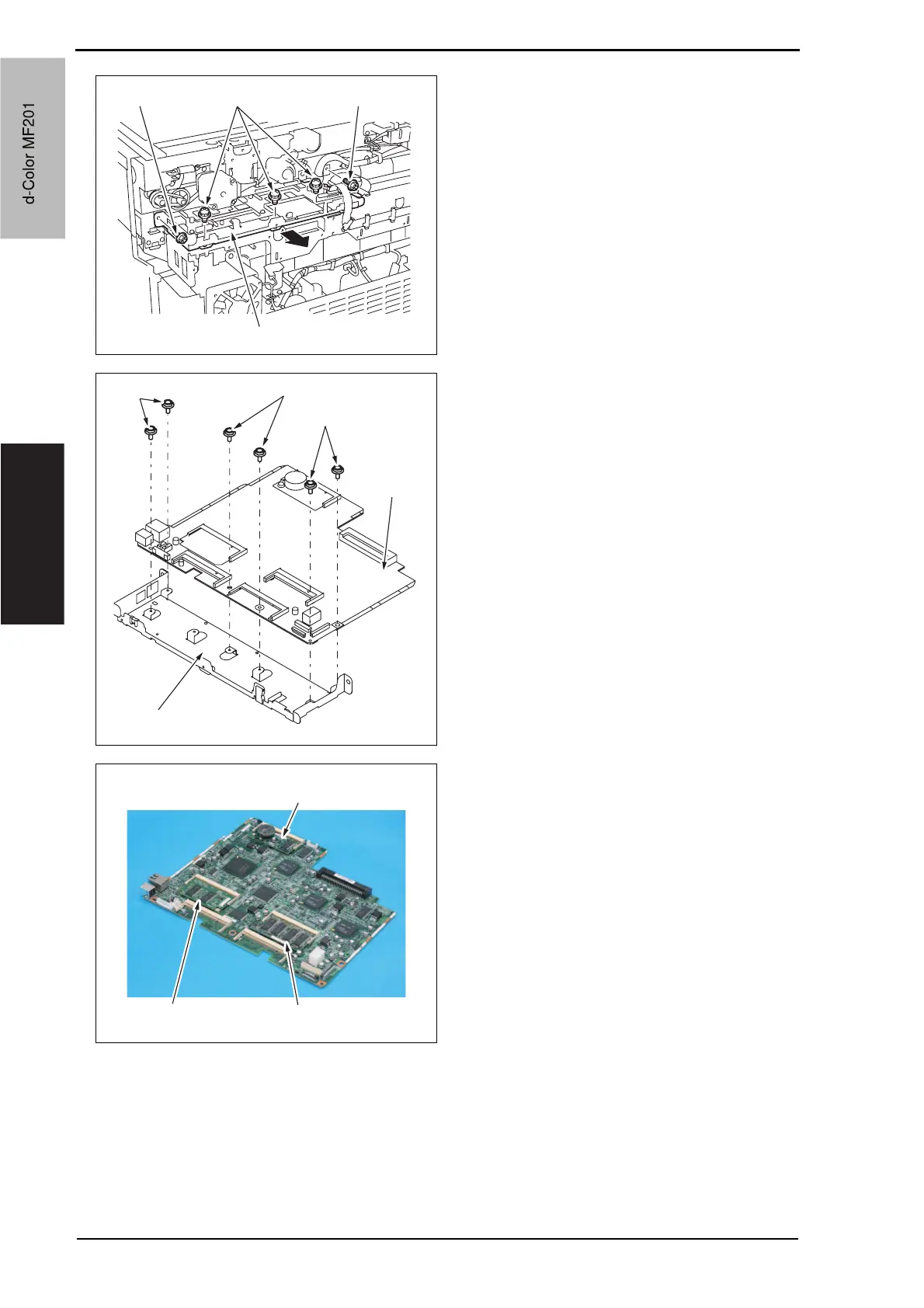

5. Remove five screws [1], and remove
the MFBU board assy [2].
6. Remove six screws [1], and remove
the MFBU board [2] from the MFBU
bracket [3].
7. Remove the MEMU/1 [1], MEMU/2
[2] and RAMU board [3] on the
MFBU board.
A02FF2C511DA
[1] [1][1]
[2]
A02FF2C521DA
[1]
[2]
[1]
[1]
[3]
A02FF2C120DA
[1] [2]
[3]
