Field Service Ver. 1.0 Jun. 2008 20. Parts layout drawing
363
Appendix
Appendix
20. Parts layout drawing
20.1 Main body

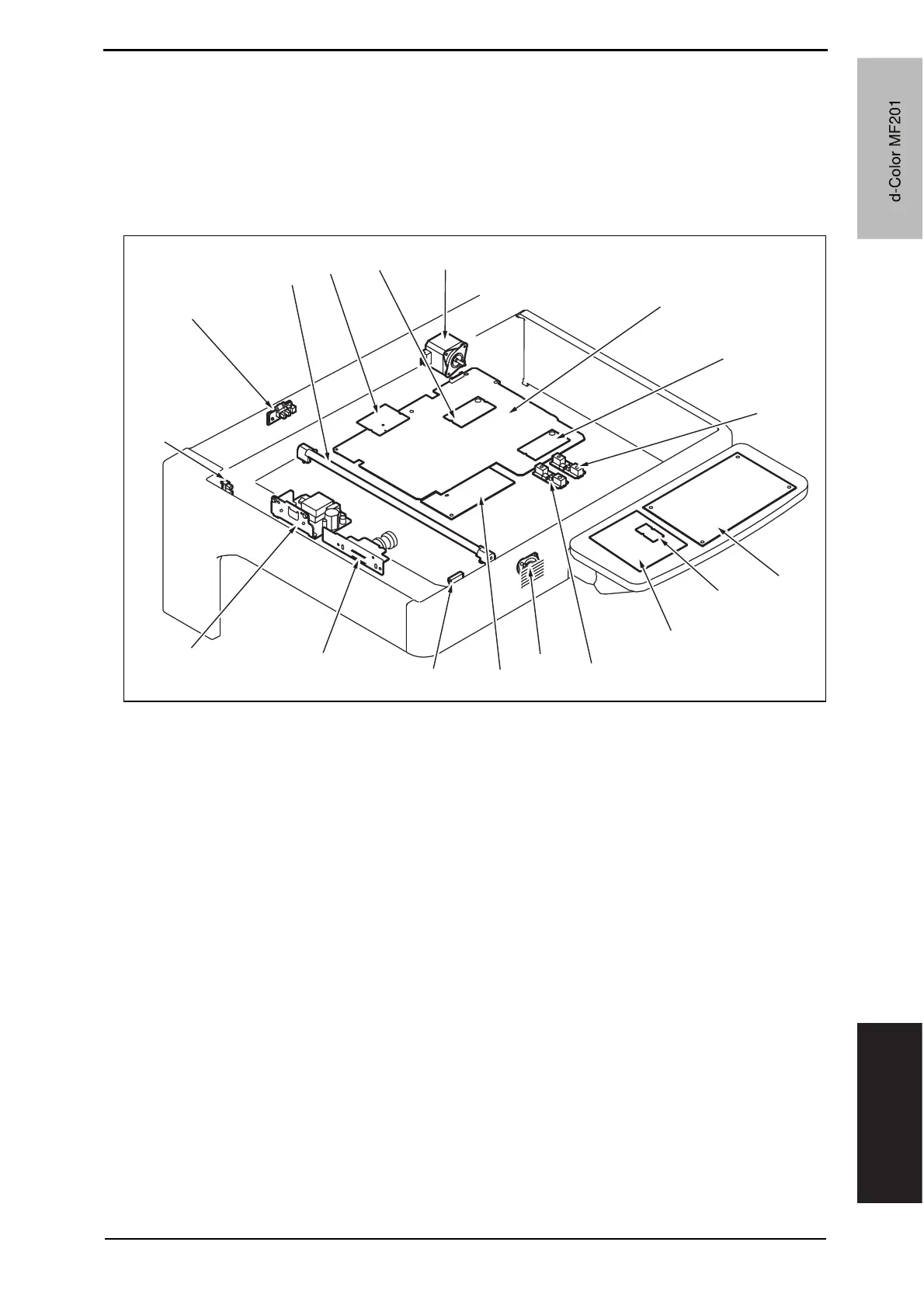

20.1.1 Scanner section
[1] Scanner motor (M201) [10] BCRU board (BCRUB)
[2] MFBU board (MFBUB) [11] Original cover sensor (PS205)
[3] RAMU board (RAMUB) [12] CCDU board (CCDUB)
[4] Original size detection sensor/2 (PS204) [13] Inverter board (INVB)
[5] OPEU board (OPEUB) [14] Home position sensor (PS201)
[6] LCD_INV board (LCDINVB) [15] 18 degree sensor (PS202)
[7] LCD board (LCDB) [16] Exposure lamp (FL201)
[8] Original size detection sensor/1 (PS203) [17] ADCU board (ADCUB)
[9] Speaker (SP) [18] MEMU/1 (MEMU/1)
A02FF5C506DA
[1]
[16]
[17]
[18]
[15]
[14]
[2]
[3]
[4]
[8]
[9]
[5]
[6]
[7]
[10]
[11]
[12]
[13]
