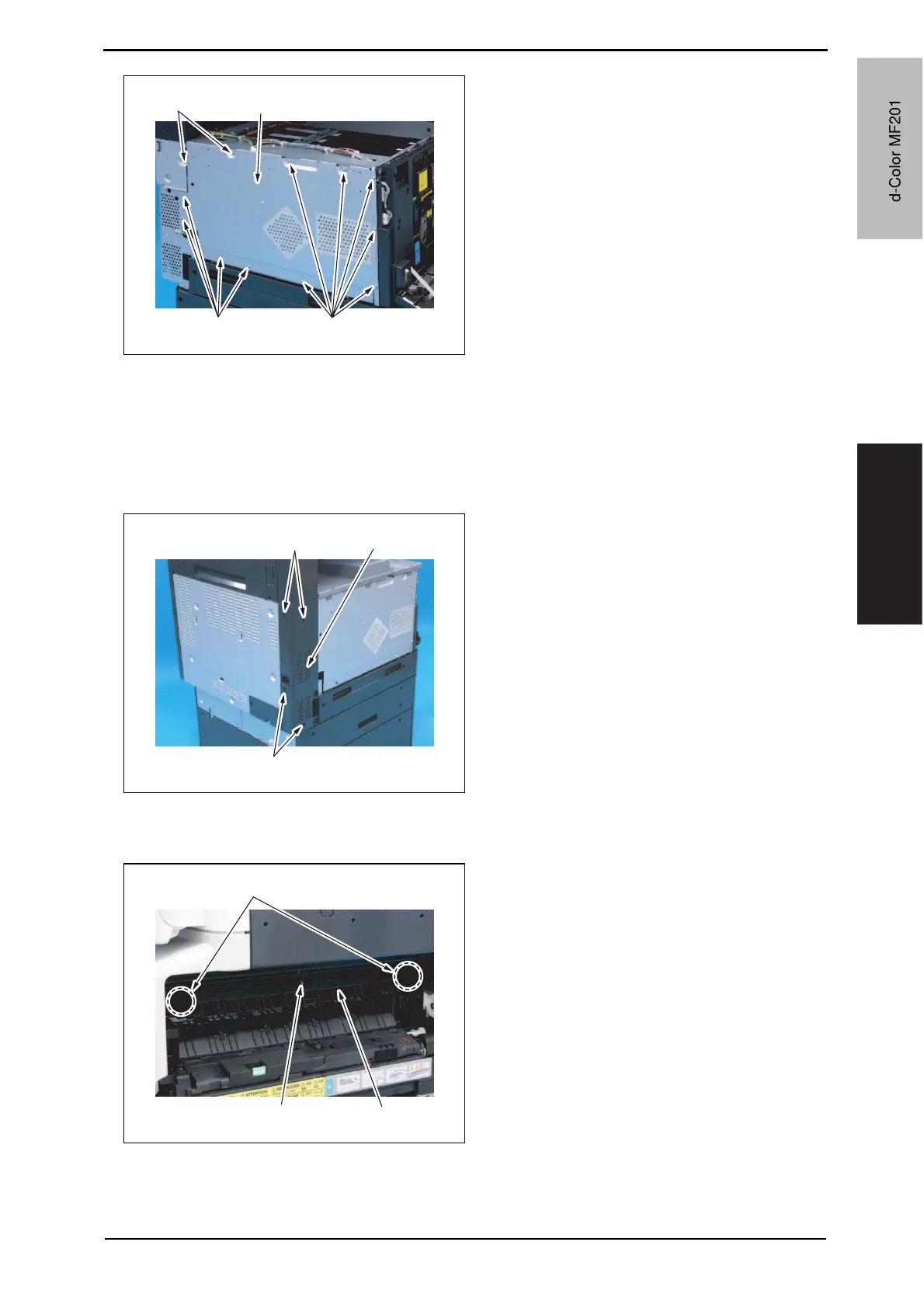

Maintenance
4. Remove twelve screws [1], and
remove the left shield cover [2].
6.3.6 Rear left cover
1. Remove the ozone filter.
See P.22
2. Remove the left cover.
See P.42
3. Remove four screws [1], and remove
the rear left cover [2].
6.3.7 Exit cover
1. Remove the screw [1], unhook two
tabs [2], and remove the paper exit
cover [3].
A02FF2C019DA
[1]
[2][1]
[1]
A02FF2C020DA
[1]
[1]
[2]
A02FF2C021DA
[1]
[2]
[3]
