Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 6. Other
77
Maintenance

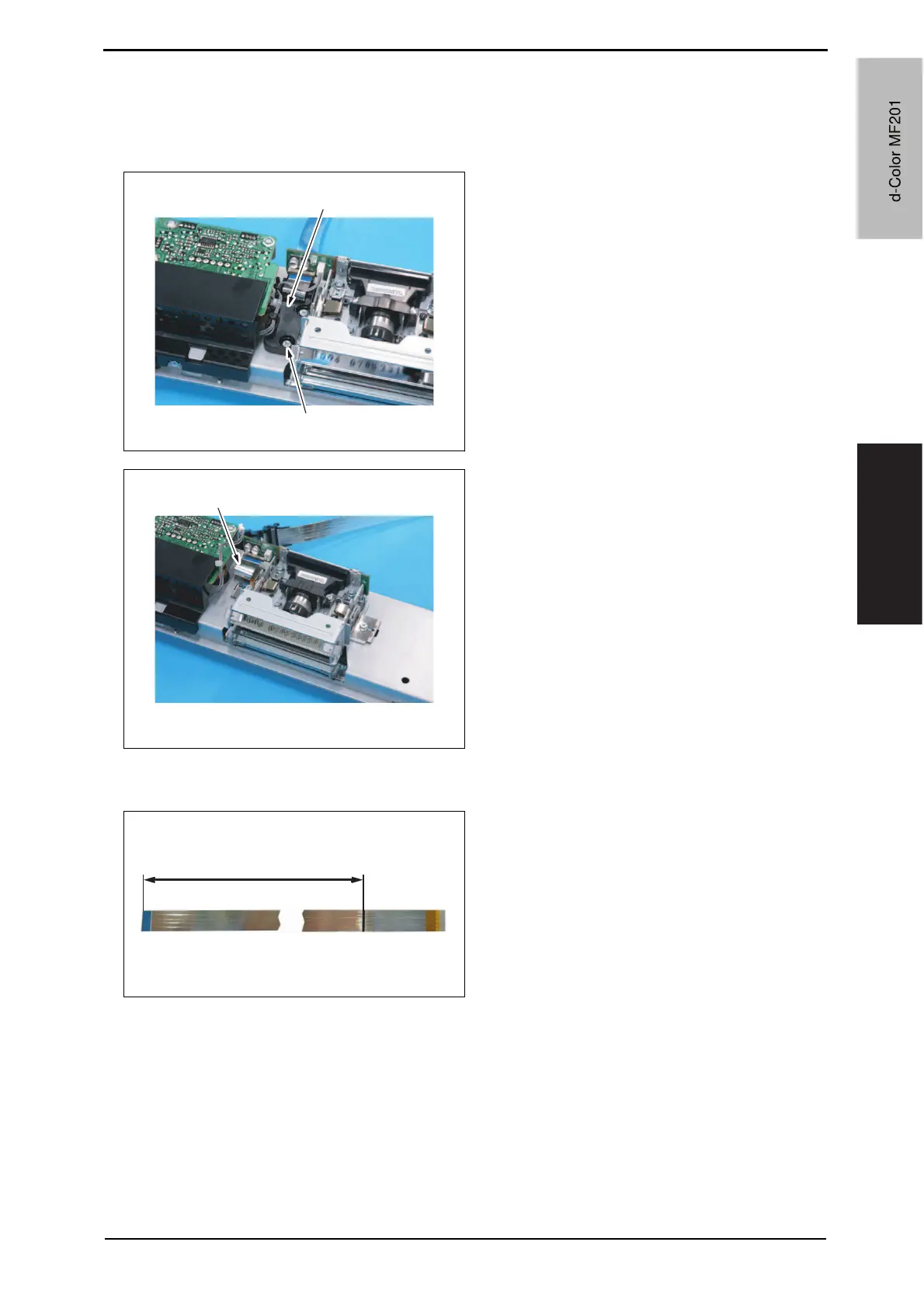

6.3.32 Flat cable of the exposure unit
A. Removal procedure
1. Remove the exposure unit.
See P.74
2. Remove the screw [1], and remove
the cable guide [2].
3. Disconnect the flat cable [1].
B. Reinstall procedure
1. Mark the flat cable at the position as
shown in the left illustration.
A02FF2C133DA
[1]
[2]
A02FF2C537DA
[1]
A02FF2C523DA
320 mm ±1 mm
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
