6. Other Field Service Ver. 1.0 Jun. 2008
76
Maintenance
8. Move the exposure unit rightward, and remove the wire bracket from the exposure unit.

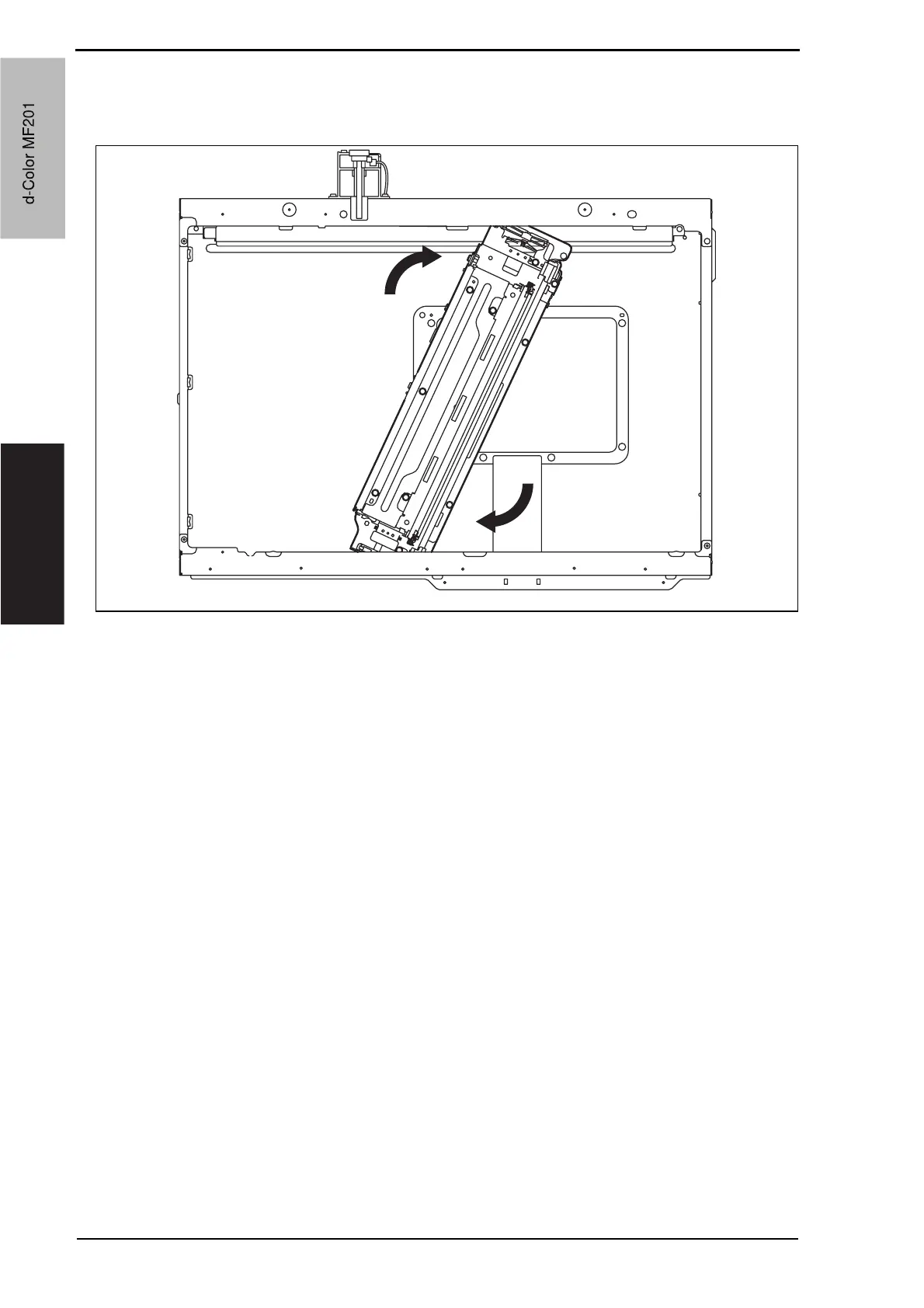

9. Rotate the exposure unit center clockwise toward the center, and remove from the
scanner chassis.
NOTE
• Take care not to damage or bend the flat cable while working.
10. To reinstall, reverse the order of removal.
NOTE
• When fixing the wire bracket at the unit front, align with the memory position when
removing.
11. After mounting, while taking copy images, adjust the wire bracket fixing position at the
exposure unit front so as to prevent tilting.
12. After tilt adjustment, attach the screw lock to the wire bracket (front), and fix it.
13. If the leading edge or zoom ratio deviates, perform the following settings.
[Service Mode] o [Machine Adjustment] o [Scan Area] o [BK-S Adjustment]
A02FF2C514DA
d-Color MF201
Service Manual Y109660-1
d-Color MF201
