Olivetti d-Color MF201 Service Manual

Field Service Ver. 1.0 Jun. 2008 6. Other
75
Maintenance

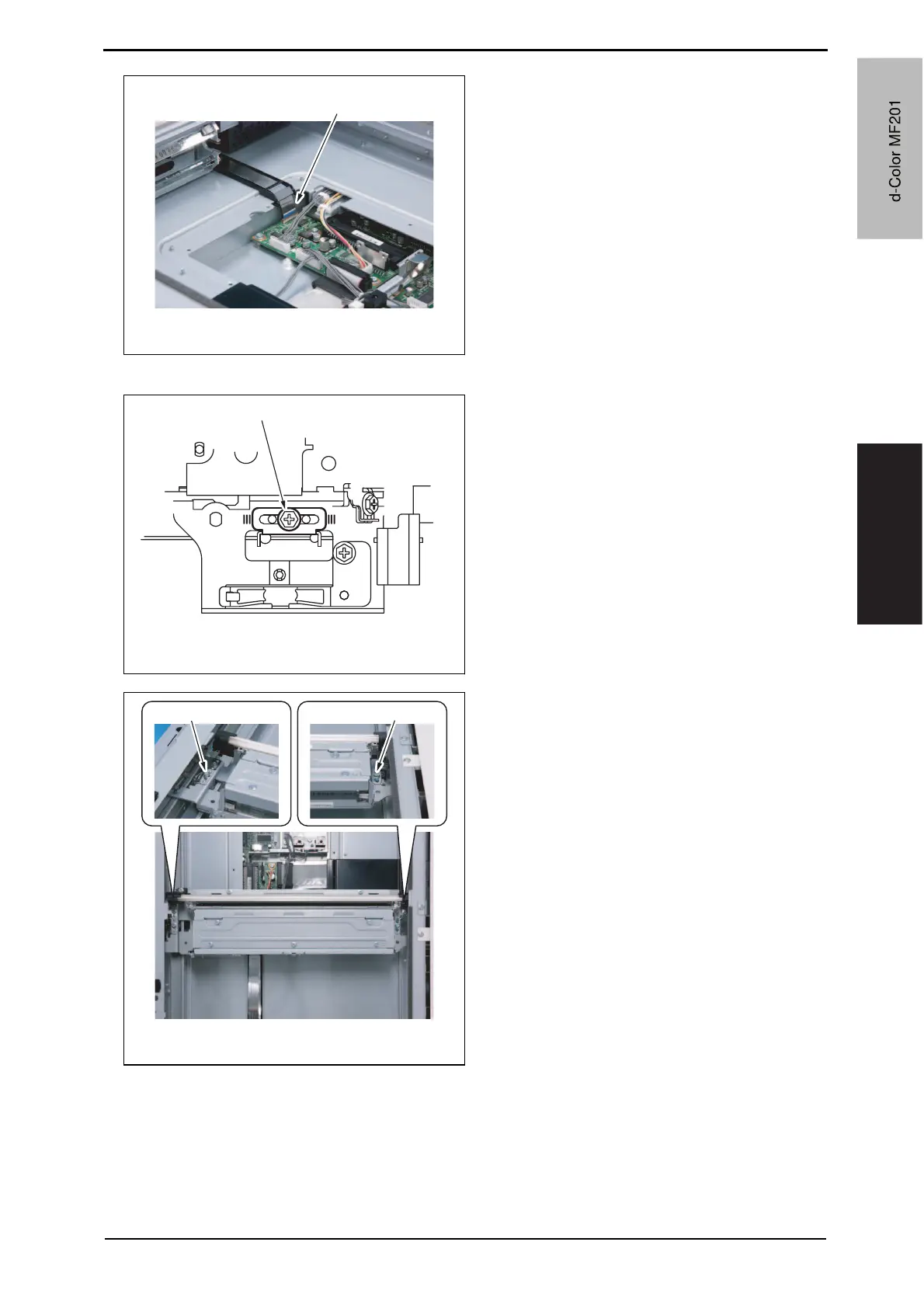

4. Disconnect the flat cable [1].
5. Move the exposure unit near the center of the scanner chassis.
6. Confirm the fixing position [1] of the
wire bracket at the front of the expo-
sure unit.
7. Remove the screws [1] at the expo-
sure unit rear/front, and lower the
wire bracket to the bottom side of the
exposure unit.
A02FF2C122DA
[1]
A02FF2C513DA
[1]
A02FF2C123DA
[1] [1]
d-Color MF201
Y109660-1 Sevice Manual
d-Color MF201
