Field Service Ver. 1.0 Jun. 2008 6. Other
103
Maintenance

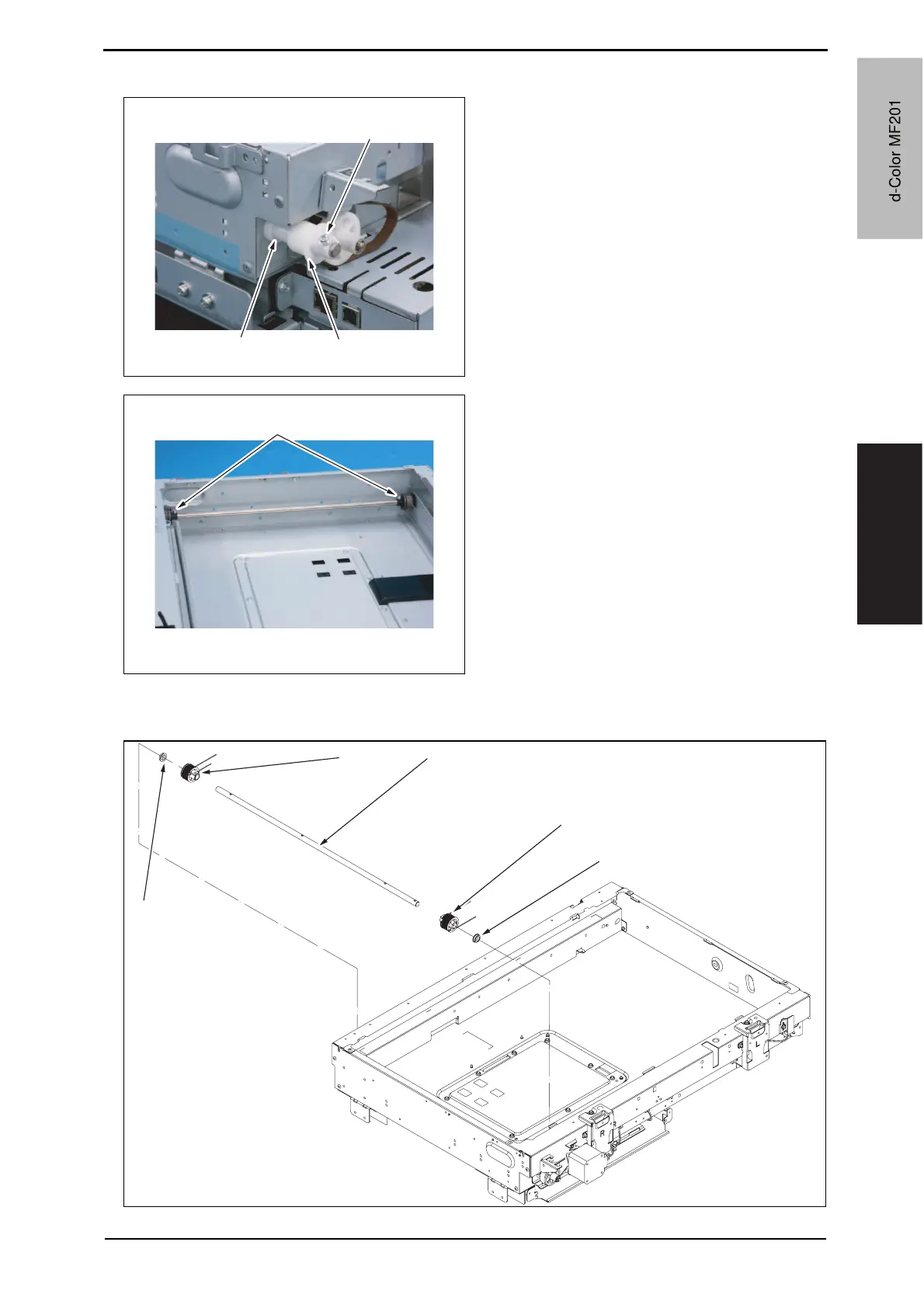

B. Reinstall procedure
• Remove the pulleys and a pulley shaft
before winding the scanner drive
wires.
1. Remove the screw [1], and remove
the pulley [2] and the spacer [3].
2. Remove two screws [1] fixing the
pulley shaft.
3. Remove bearings [1] in the front and rear, pull out the pulley shaft [2], and pull out pul-
leys [3] and pulley shaft [2] from the inside of the scanner.
A02FF2C130DA
[1]
[2][3]
A02FF2C131DA
[1]
A02FF2C524DA
[2]
[3]
[3]
[1]
[1]
