Quantum Superloader 3 User Manual

Chapter 1 Introduction
Internal View
10 SuperLoader User’s Guide

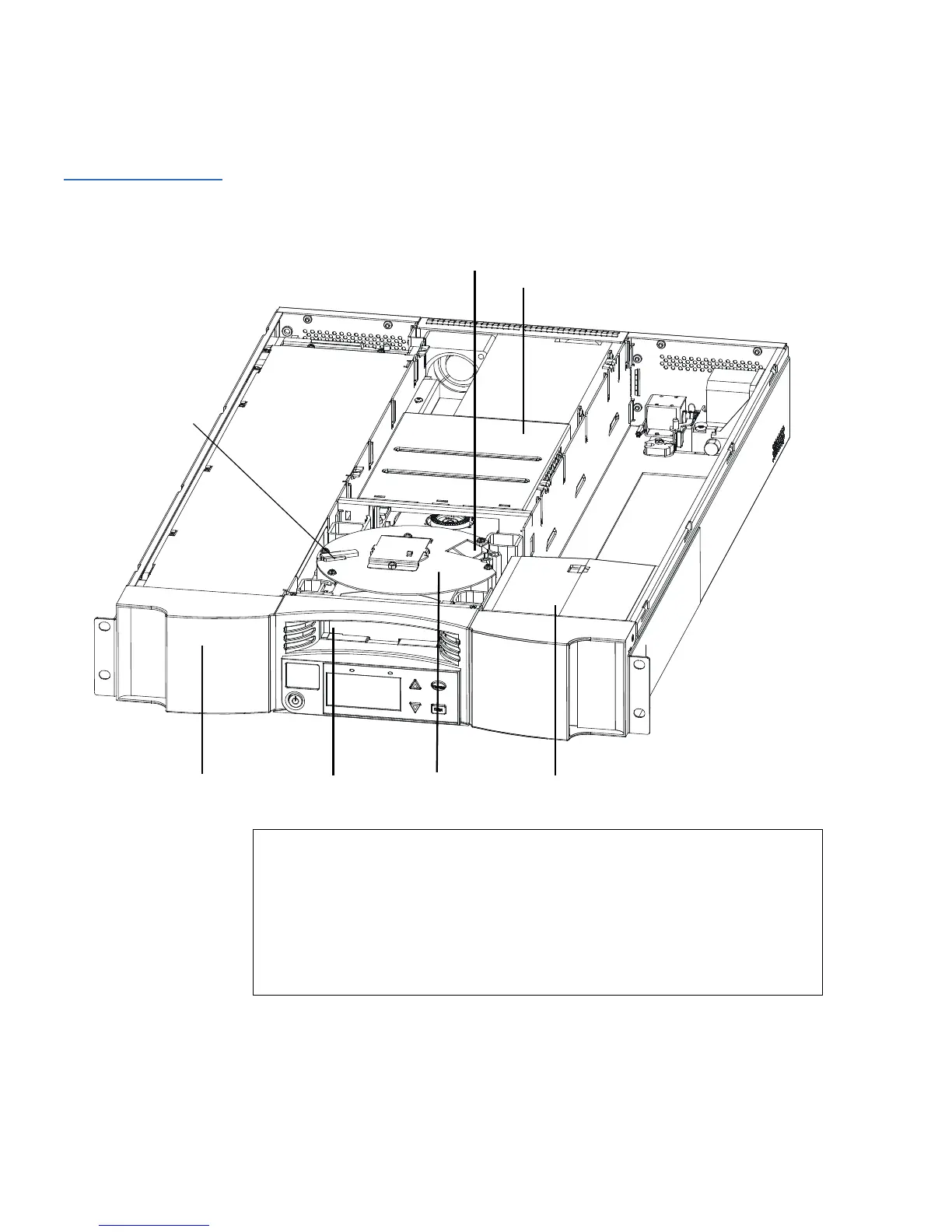

Figure 9 Internal View
of the SuperLoader
Note: Due to the nature of their similarities, unless noted otherwise,
these illustrations are for the SuperLoader DLT and the
SuperLoader LTO. Many component parts are not
interchangeable. These include the magazines, cartridges,
drive carrier assembly, magazine blank, magazine handle, and
the bar code scanner. Please order the appropriate part
numbers when replacing these items.
DCA
Bar code reader bay
Magazine
Mailslot
Picker Magazine blank
Picker with
misinsertion feature
and turret spreader

Quantum Superloader 3 Specifications

General

Product Type	Tape Autoloader
Number of Tape Drives Installed	1
Number of Cartridge Slots	8
Tape Technology	LTO Ultrium
Data Compression Ratio	2:1
Native Capacity	12 TB
Compressed Capacity	24 TB
Interfaces	SAS
Humidity	20% to 80% non-condensing
Operating Temperature	10°C to 35°C
Supported Media	LTO-5, LTO-4
