Chapter 2 Installation and Configuration
Rack Mounting the SuperLoader
SuperLoader User’s Guide 25
6 While the other installer holds the front end of the SuperLoader,
secure the SuperLoader in the rack by doing the following:
a Secure the front end of the SuperLoader to the rack using four
rack screws (two per tab) as shown in figure 16
. Tighten the
screws just enough to secure the SuperLoader to the front rails.

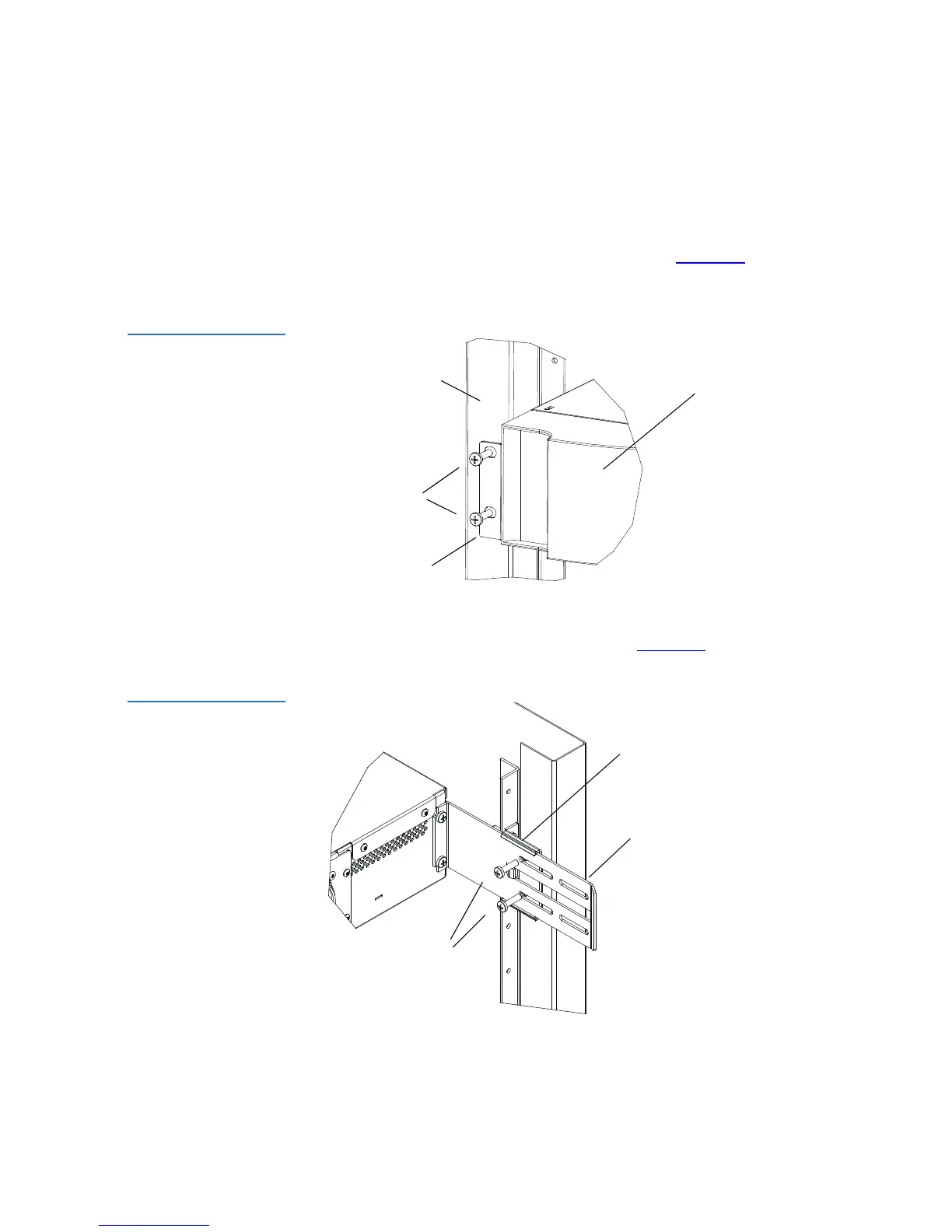

Figure 16 Front
Alignment
b Install four screws (two per side) to secure the support brackets
to the SuperLoader brackets (see figure 17
).
Figure 17 Connecting
Support Brackets
7 Verify that the SuperLoader is level. Adjust as needed.
Front rail
Tab (one
SuperLoader (front)
Rack
screws
per side)
SuperLoader
Support bracket
bracket
Screws
