Quantum Superloader 3 - Figure 12 Installing Two Clip Nuts

Chapter 2 Installation and Configuration
Rack Mounting the SuperLoader
SuperLoader User’s Guide 21

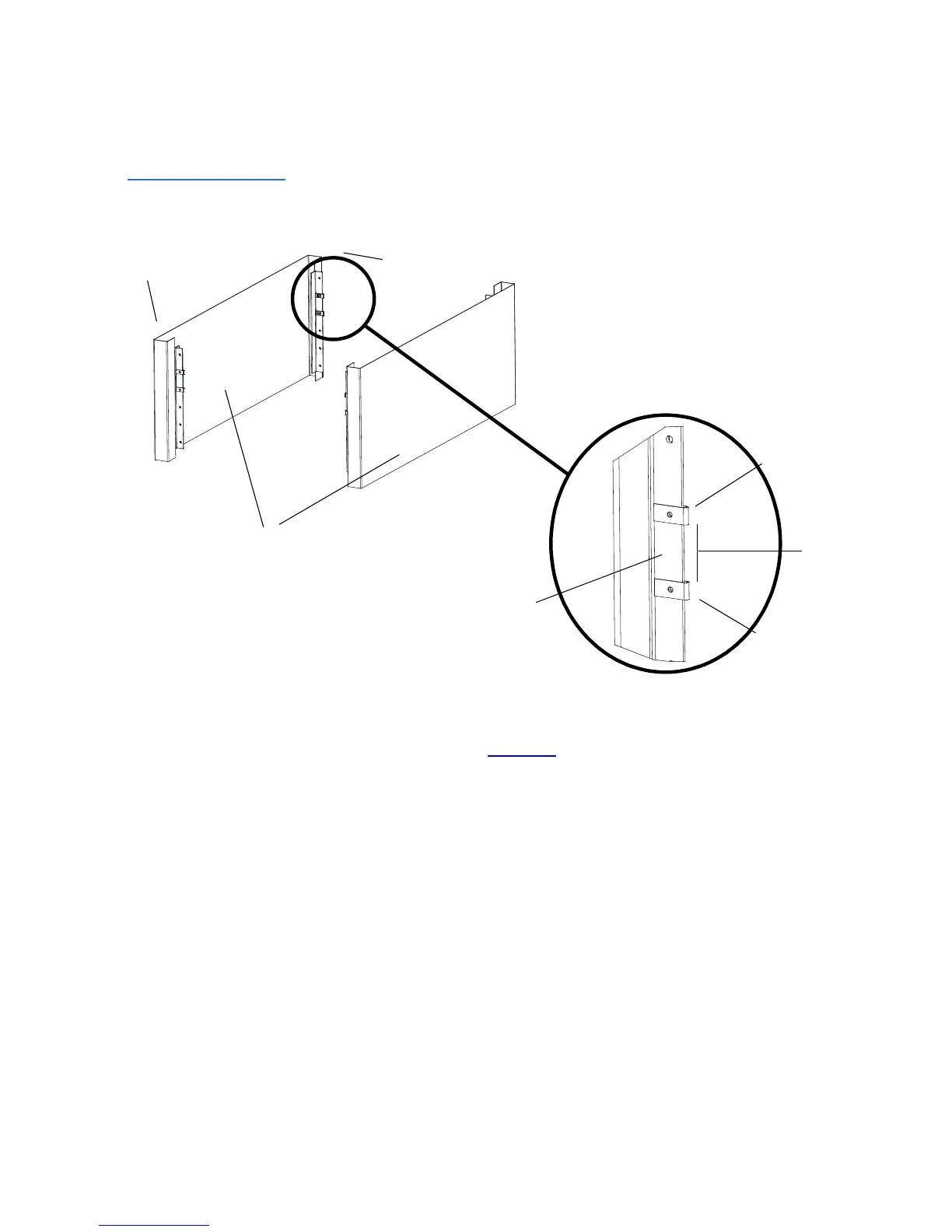

Figure 12 Installing
Two Clip Nuts
3 Select the long or short SuperLoader brackets (depending on the
depth of the rack), and then attach them to the rear of the
SuperLoader (see figure 13
).
Clip nut
Outer covers
of the rack
Rail
Rail
Rail
1.75 in
(44.45 mm)
Clip nut
