To display more detailed information about a particular output, click the
corresponding INFO button.
To edit the settings of an output, click the GEAR button (see also "Con-
figuring Outputs" on page169.)
To refresh the information displayed, click the REFRESH button (circling
arrows icon on the right side of the screen).
On the rear panel illustration, click on an output connector to highlight its
list entry.

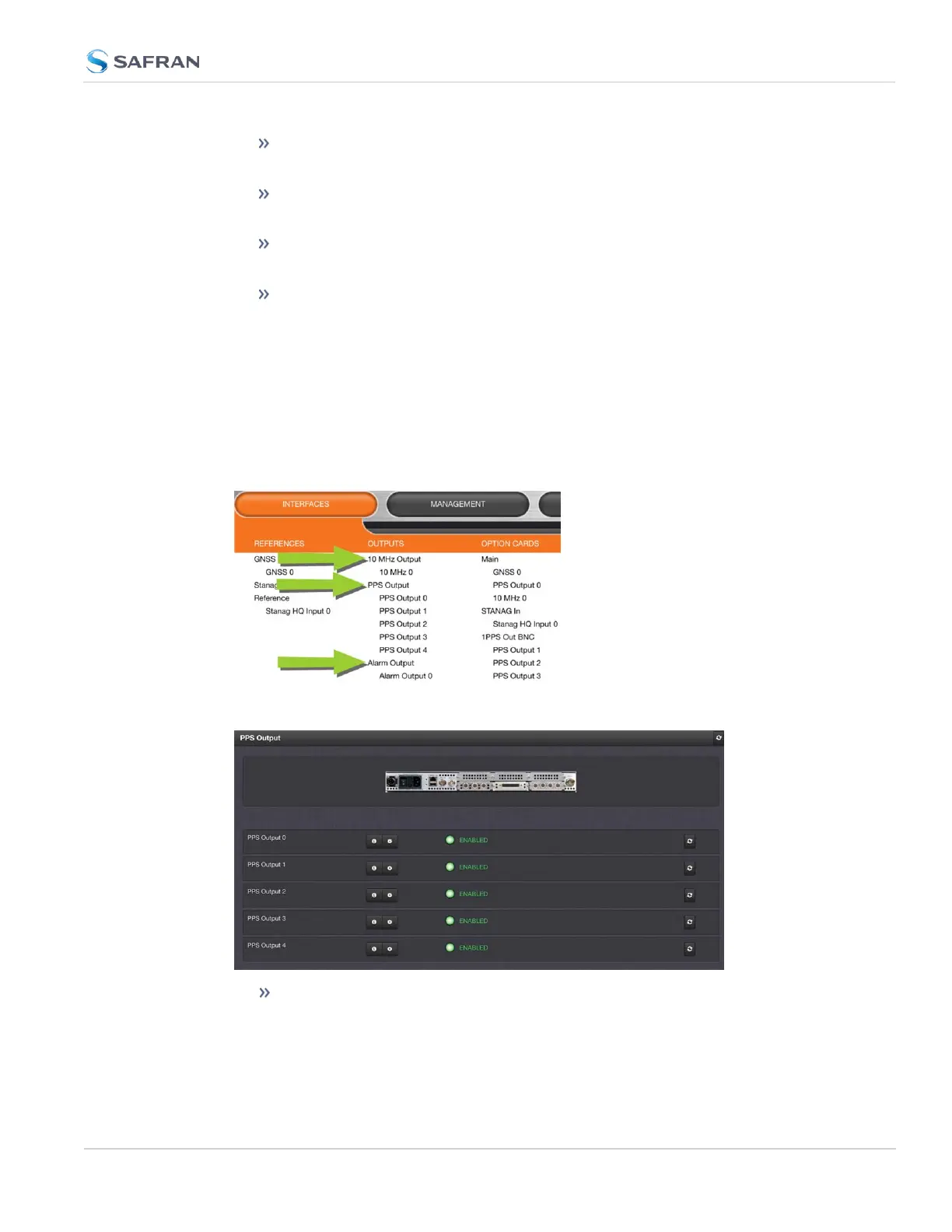

Monitoring all outputs of a specific type
To monitor all the outputs of a particular category (PPS, for example) sim-
ultaneously:
1.
Navigate to INTERFACES > OUTPUTS, and click the desired output category
(not recessed e.g., PPS Output):
2. The Status window will display a list of all outputs of the selected category:
To display more detailed information about a particular output, click the
corresponding INFO button.
