5.2.5.4 STANAG In [1204-1D, -24]
The STANAG Input option cards 1204-1D and 1204-24 STANAG provide (2) con-
figurable STANAG inputs and (1) 1PPS input for the SecureSync platform.
STANAG In [1204-1D, -24]: Specifications
Inputs: (2) STANAG Inputs, (1) 1PPS Input
Signal Type and Connector: TTL or RS-485 level (user selectable) for
STANAG and 1PPS input. DB25.
Formats Supported:
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Accuracy: 100ns
Maximum Number of Cards: 6
Ordering Information: 1204-1D (for non-isolated board); 1204-24 (for isol-
ated board)

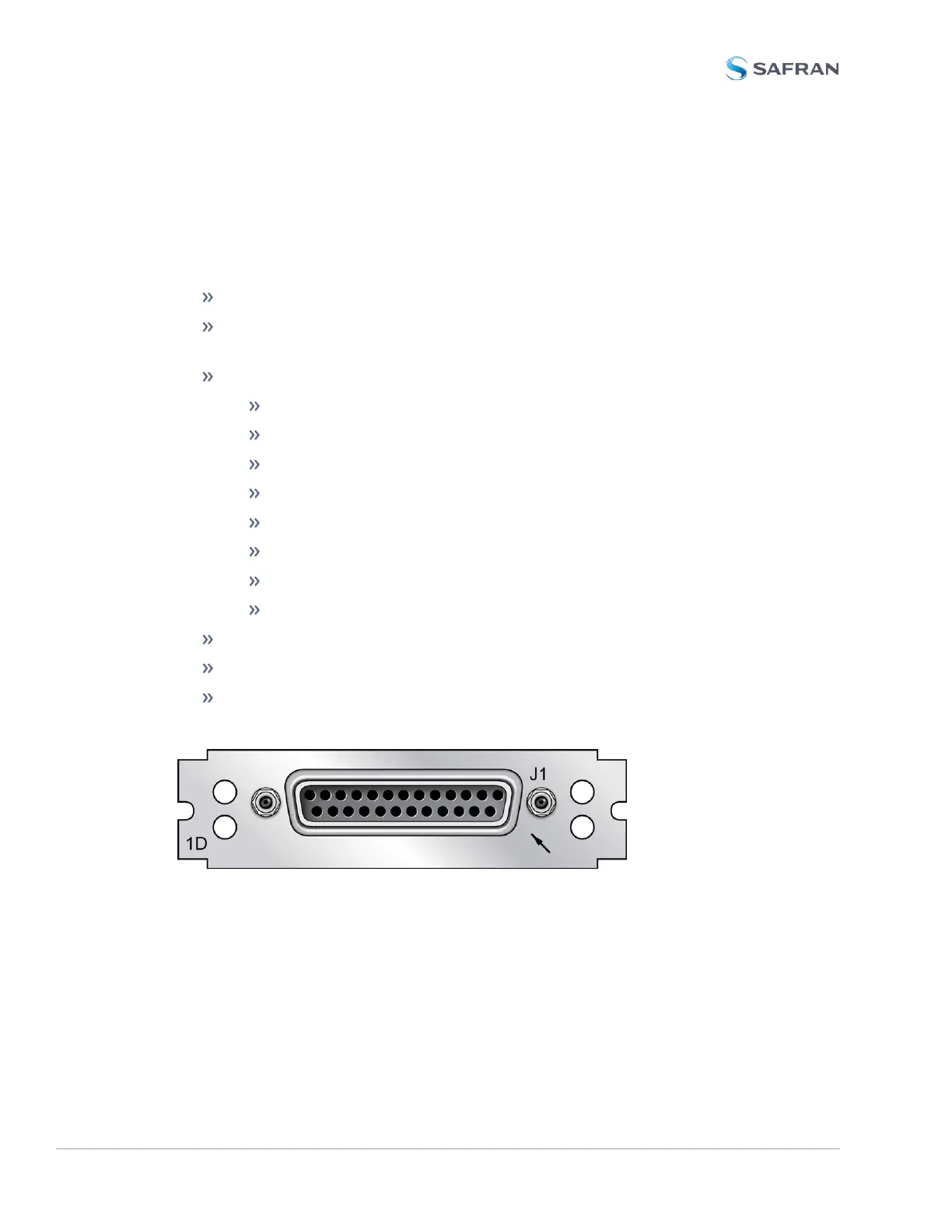

Figure 5-45: Model 1204-1D option card rear plate
