Safran SecureSync 2400 - Specifications; Input Power

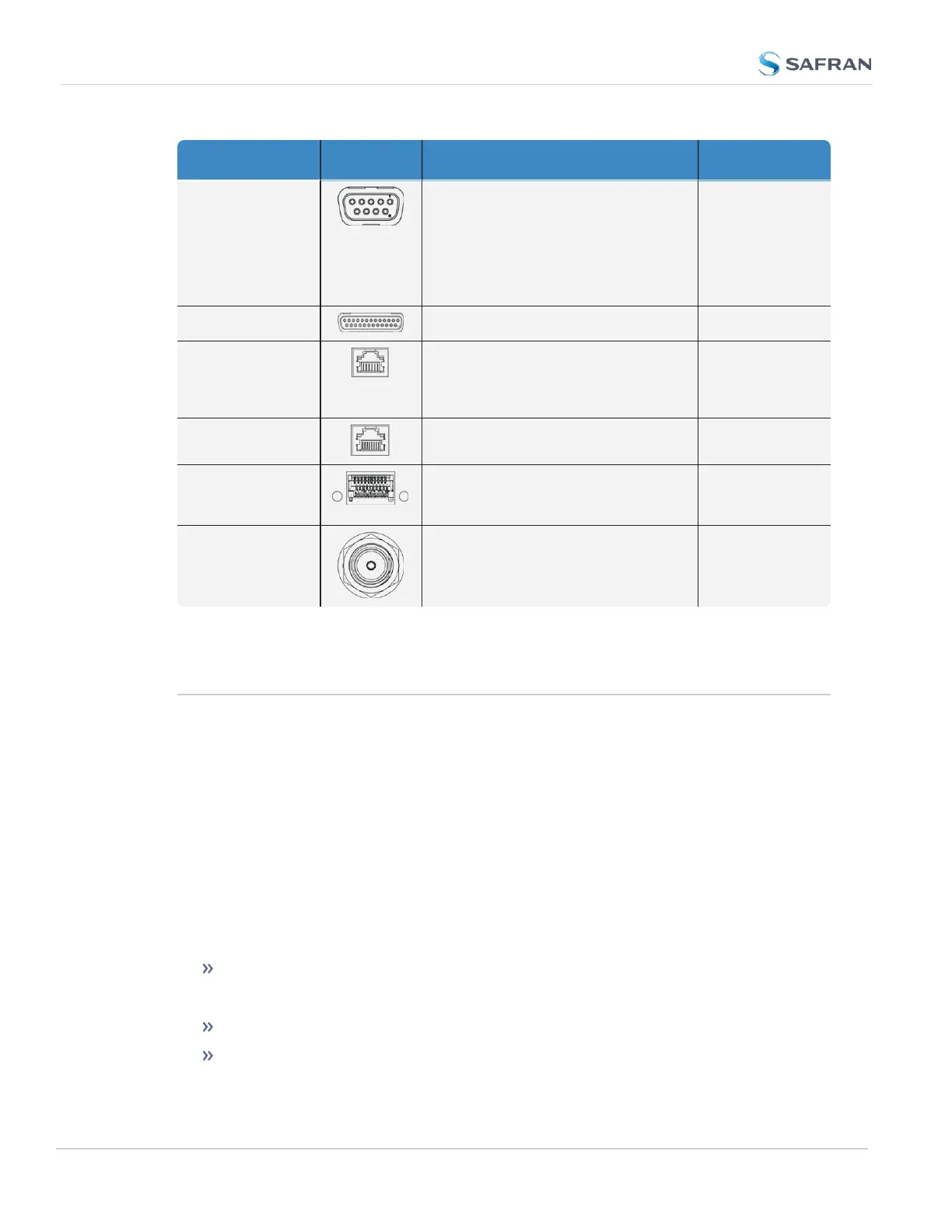

Connector Illustration Electr. Signals Timing signals
DB-9 RS-232, RS-485 ASCIItime code,
GPS NMEA, data
clocks,
CTCSS fre-
quency,
1PPS, Alarm sig-
nal
DB-25 Differential TTL xV, RS-485 STANAG
RJ-12 RS-485 data clock,
CTCSS fre-
quency,
1PPS, Alarm
RJ-45 Gb-Ethernet PTP timing signal
SFP Ethernet NTP timing sig-
nal, PTP timing
signal
SMA RF, differential TTL xV, sine wave, pro-
gramm. square wave, AM sine wave,
DCLS
1PPS, frequency
1.6 Specifications
The specifications listed below apply to the SecureSync standard model, i.e. not
including any option cards, and are based on “normal” operation, with
SecureSync synchronized to valid Time and 1PPS input references (in the case of
GNSS input, this is with the GNSS receiver operating in Stationary mode).
Specifications for the available option cards are provided in their corresponding
topics;see "Option Cards Overview" on page17.
1.6.1 Input Power
AC power source:
100 to 240 V
AC
, ±10 %, 50/60 Hz
DC power source (option):
12-17 V
DC
-15%, +20%, or
21-60 V
DC
-15%, +20%, secure locking device
24
CHAPTER 1 • SecureSync 2400 User Manual Rev. 5.2
1.6 Specifications
