The Oscillator History Panel
The Oscillator History Panel offers real- time graphical monitoring of
SecureSync’s internal timing. The following graphs plot key oscillator-relevant
data over time::
Phase Error Magnitude: See 1PPS Phase Error
Frequency Error: See 10_MHz_Frequency_Error
Scaled DAC Value: See DAC Step
Oscillator Temperature, which has an effect on oscillator accuracy, and
therefore can be used to interpret oscillator performance.
You can zoom in on any of the graphs by grabbing the handles at either end and
pulling them inwards. The graph will focus in on the time interval you choose in
real time.
Clicking on the Delete icon in the top-right hand corner will erase all current oscil-
lator log data.
Clicking on the Download arrow icon will download the latest oscillator log data
as a .csv file.

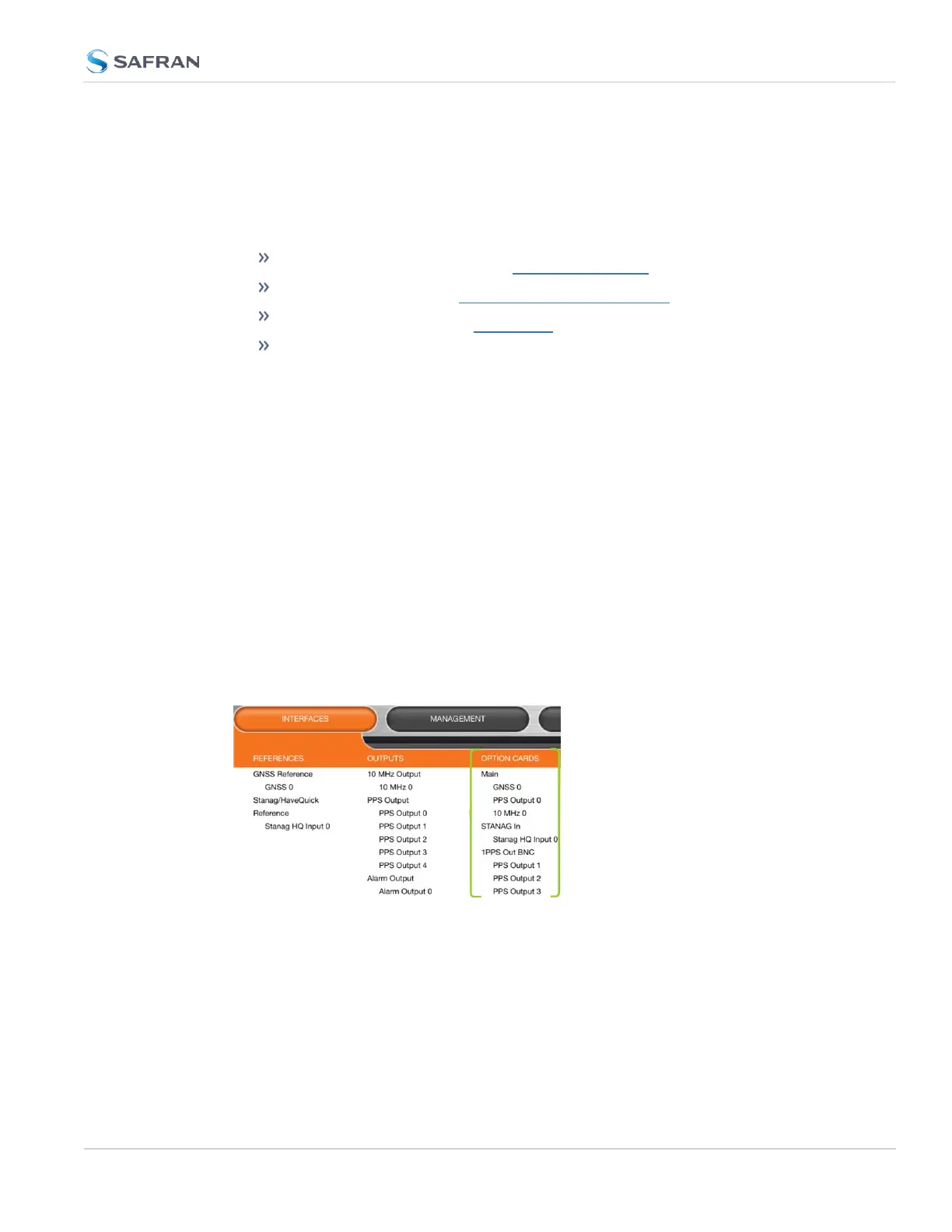

4.5.1.8 Monitoring the Status of Option Cards
SecureSync’s installed option cards can be monitored in real time through the
INTERFACES > OPTION CARDS drop- down menu. The menu will populate
dynamically, depending on which option cards are installed.
Monitoring ALL Option Cards
To monitor all option cards, or a specific option card installed in your SecureSync:
4.5 Quality Management
CHAPTER 4 • SecureSync 2400 User Manual Rev. 5.2
315
