Safran SecureSync 2400 - Option Card Connectors

Card
ID*
Card Name Name in UI See ...
2F Programmable Frequency
Output module (TTL)
Prog Freq Out,
TTL
"Programmable Frequency
Out [1204-13, -2F, -30]" on
page406
30 Programmable Frequency
Output module (RS-485)
Prog Freq Out,
RS-485
"Programmable Frequency
Out [1204-13, -2F, -30]" on
page406
32 1Gb PTP module Gb PTP
"PTP Grandmaster [1204-32]"
on page499
3E STL input module STL
"STL Option Module [1204-
3E]" on page518
49 Dual 1 Gb NTP Server Dual 1GBE
"NTP and Networking [4A,
49]" on page495
4A Quad 1 Gb NTP Server Quad 1GBE
"NTP and Networking [4A,
49]" on page495
4C Differential Terminal Block
4 Port E1/T1 module
E1/T1 Out Quad
Terminal
"T1/E1 Out [1204-09, -0A, -4C,
-53]" on page424
53 Single-ended BNC 4 port
E1/T1 module
E1/T1 Out Quad
BNC
"T1/E1 Out [1204-09, -0A, -4C,
-53]" on page424

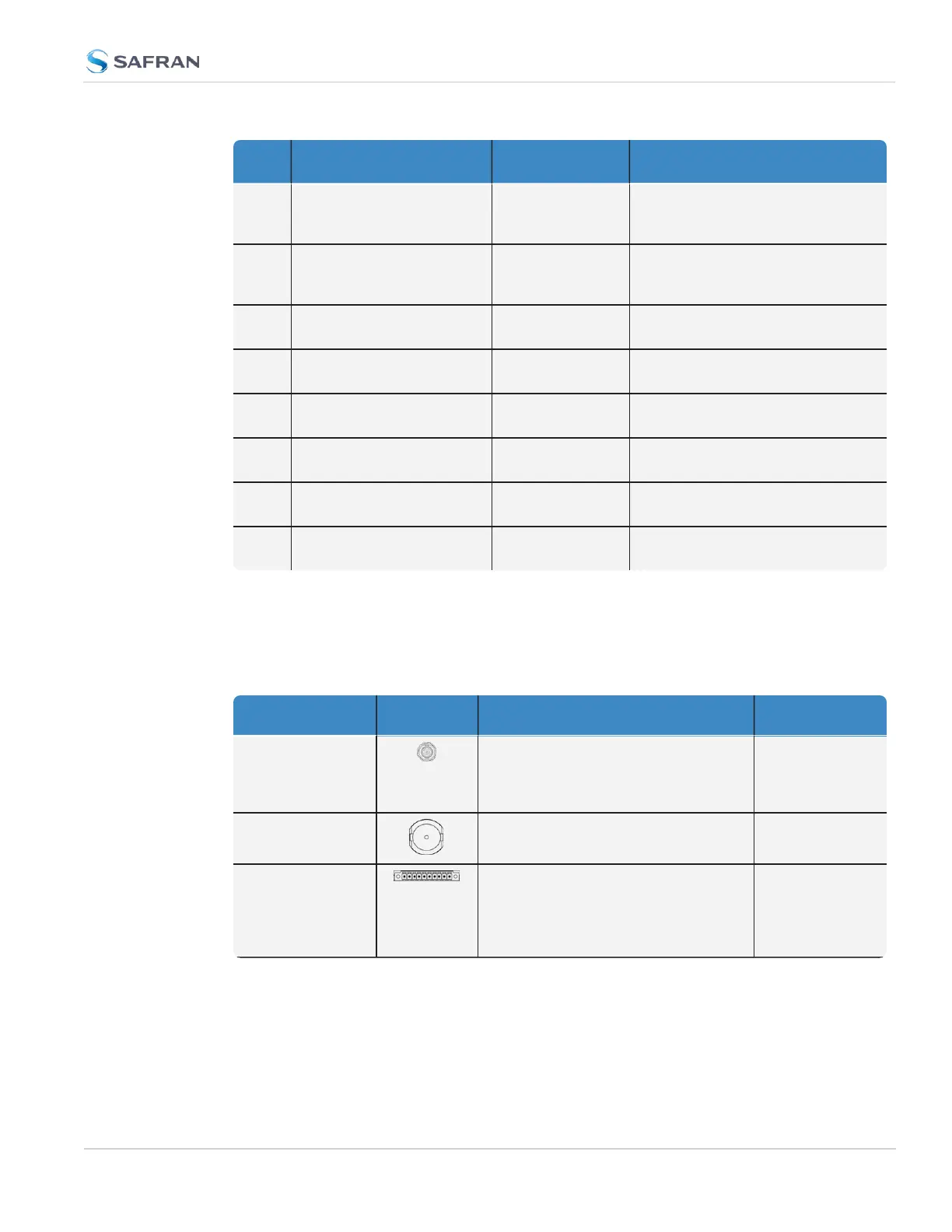

1.5.3 Option Card Connectors
The table below lists the connector types used in SecureSync option cards.
Table 1-6: Option card connectors
Connector Illustration Electr. Signals Timing signals
BNC Differential TTL xV, sine wave, pro-
gramm. square wave, AM sine wave,
DCLS
1PPS, frequency,
IRIG, HAVE
QUICK,
PTP
ST Fiber Optic AM sine wave, DCLS IRIG, 1PPS
Terminal Block
[
Recommended
mating connector:
Phoenix Contact,
part no. 1827787]
RS-485 1PPS, frequency,
ASCIItime code,
IRIG,
HAVEQUICK,
Alarm, T1/E1
