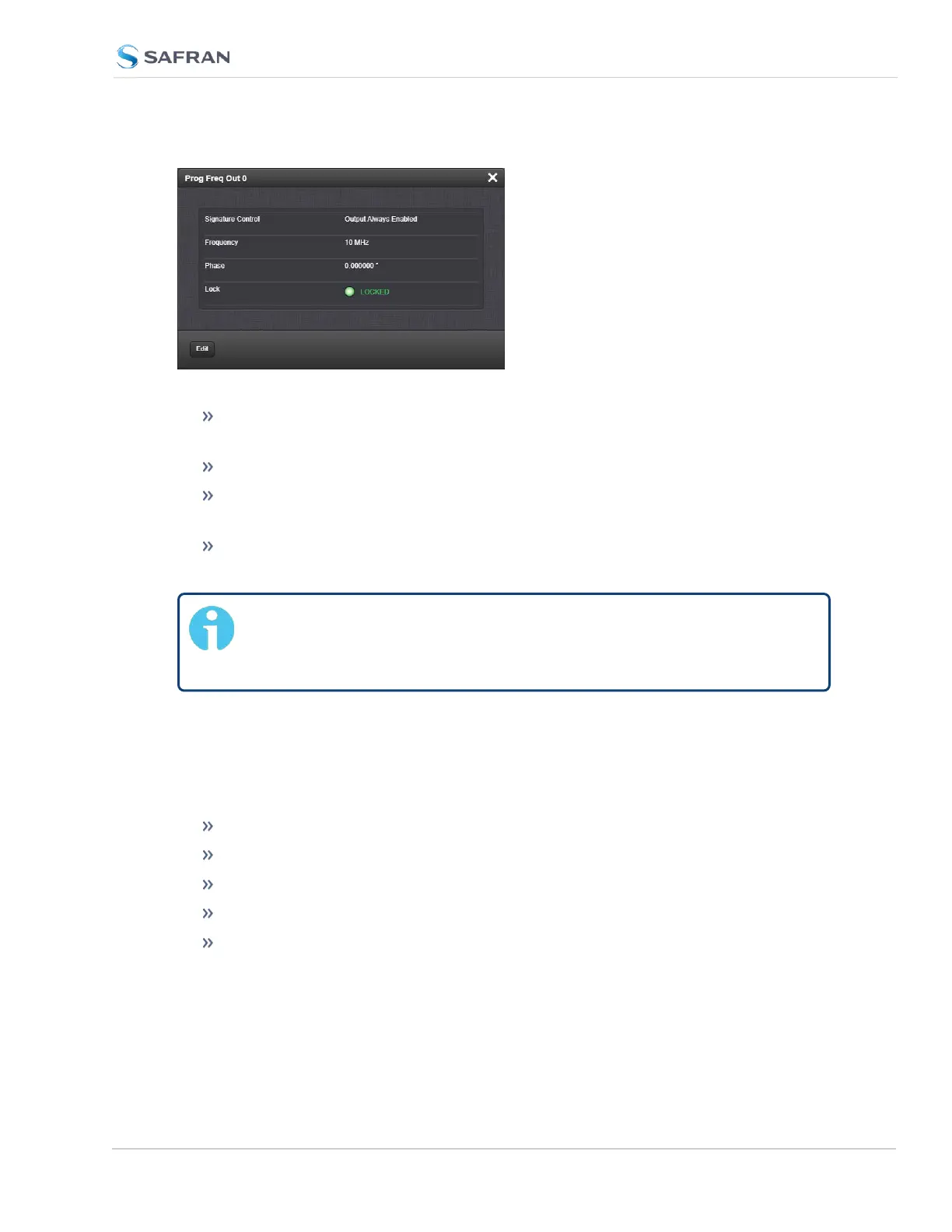

The Status window displays the following settings:
Signature Control: Controls when the output will be present. See also: "Sig-
nature Control" on page183.
Frequency: Indicates the configured frequency.
Phase: Displays the configured phase offset (e.g., to account for delays
caused by different cable lengths, or other latencies).
Lock: Shows, if the output frequency is locked to the SecureSync system-
disciplined oscillator.
Note: Even if an output frequency status is LOCKED, it will not be
available at the output port, if the Signature Control for that port has
been DISABLED.
5.2.3.6 Programmable Square Wave Out [1204-17]
The Model 1204- 17 Square Wave output Option Card provides four pro-
grammable square wave outputs for the SecureSync platform.
Inputs/Outputs: (4) Programmable square wave outputs
Signal Type and Connector: TTL (BNC)
Accuracy: ±50ns (1σ)
Output Load Impedance: 50Ω
Rise Time to 90% of Level: <10ns
