Programmable Period: 100ns to 2,000,000,000ns in 5ns steps, or to
1,800,000,000μs in 1μs steps
Programmable Pulse Width: 20ns to 900ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-17: Square Wave Out

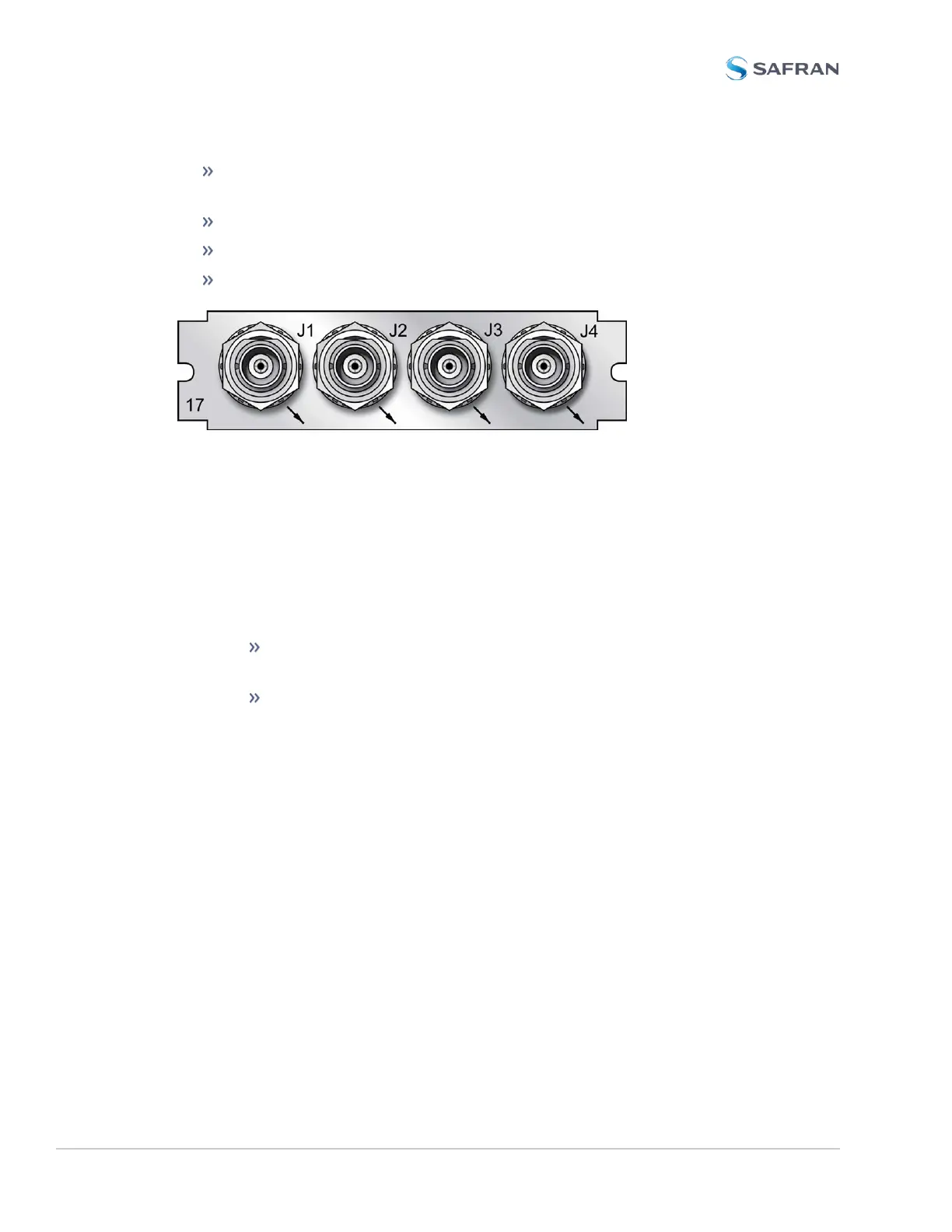

Figure 5-29: Model 1204-17 option card rear plate
Configuring a Square Wave Output
To configure one of the Square Wave Outputs:
1.
Navigate INTERFACES >OUTPUTS: Square Wave Output. The panel on
the right side of the screen displays all Sqr. Wv. Outputs and their statuses.
All outputs are numbered by signal type (e.g., 'pulse'), hence the numbering
may not start with 0.
To determine which output number is allocated to which connector
(J1–J4), hover your mouse pointer over the back panel image.
Click on the INFO button next to one of the outputs to open a
