5.2.1.4 Viewing an Input/Output Signal State
To view if an input or output is currently enabled or disabled, go to the option
card’s Status Summary panel:
1.
Identify the name of the option card, (e.g., PPSOUT, 4-BNC), and the name
of the input or output you want to configure (e.g., PPS Output 1).
Note: If you have only one input or output of any type,
SecureSync will number that input or output0. Additional
inputs or outputs will be numbered1 or above.
2.
Navigate to the INTERFACES > OPTION CARDS drop-down menu, and

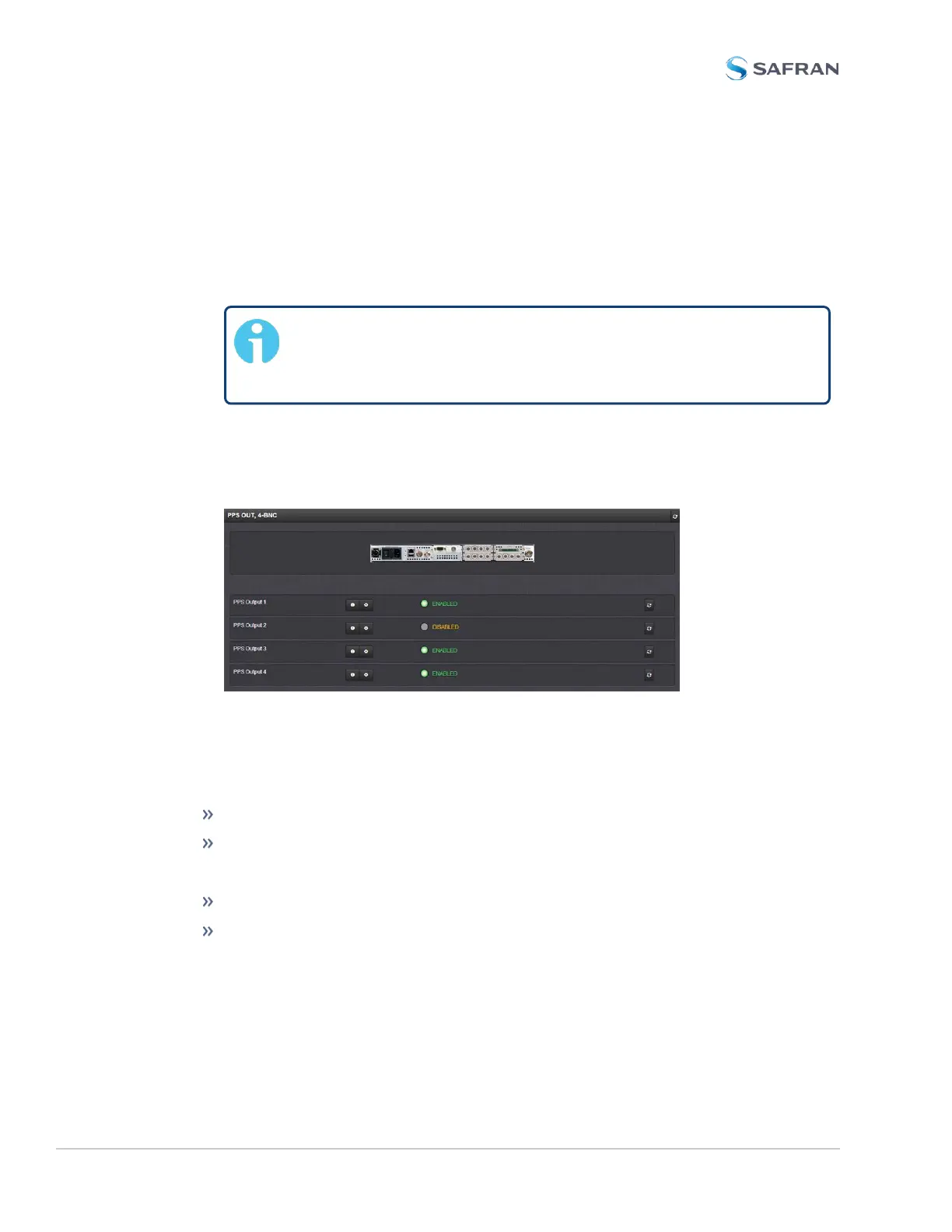

click the list entry of the option card identified above. The option card’s
Status Summary panel opens:
All the inputs and/or outputs of this option card are listed in the Status Summary
panel.
In accordance with the Signature Control setting, and the Lock Status, the cur-
rent signal state for an output is indicated as:
ENABLED (green); or
DISABLED (orange)
The current state of an input signal is indicated as:
VALID (in green); or
INVALID (in red)
The Status Summary panel will be refreshed automatically every 30seconds.
Click the Refresh button (circling arrows) on the right to refresh the status
