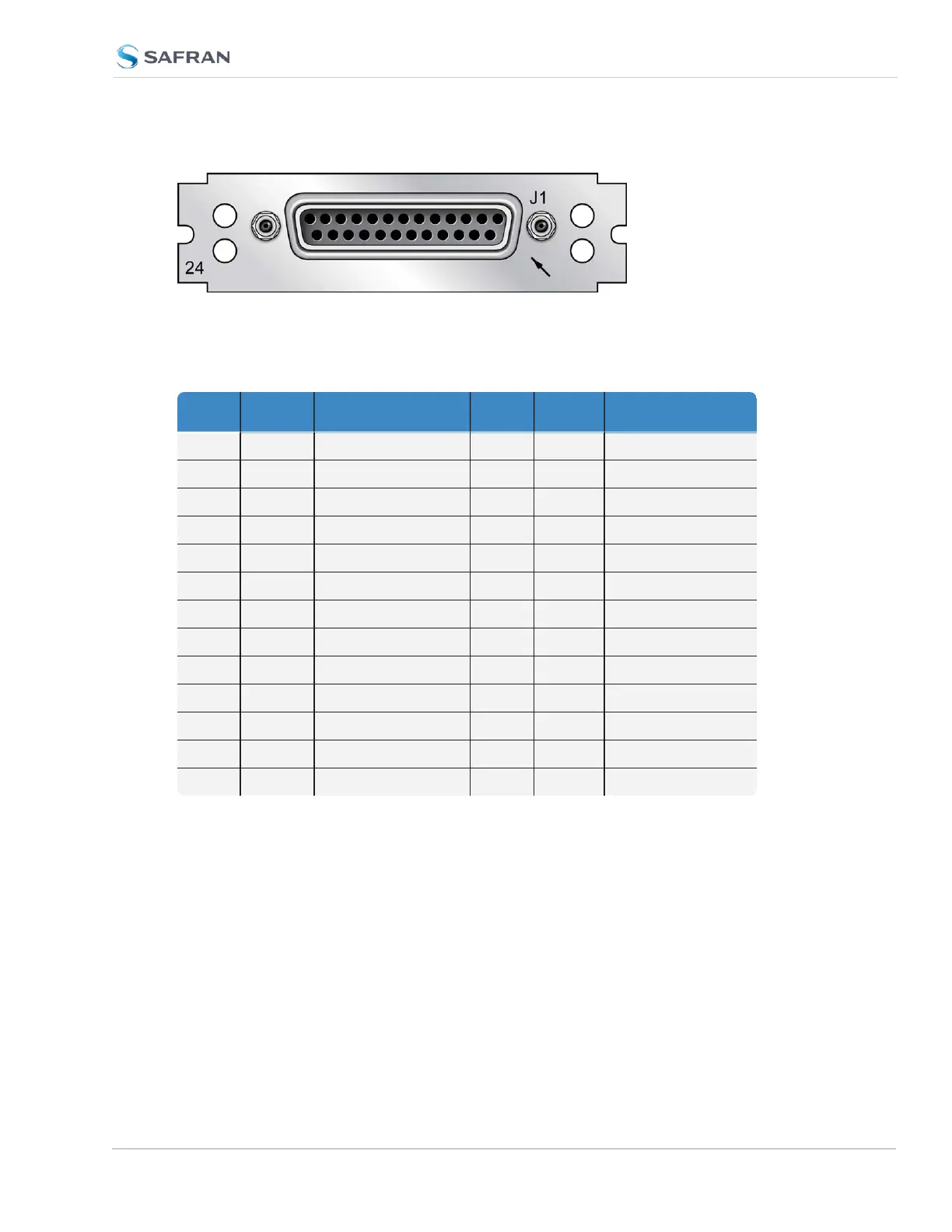

Figure 5-46: Model 1204-24 option card rear plate
Pin Assignments
Pin No. Signal Function Pin No. Signal Function
1 GND Ground 14 TOD1- TOD1 RS-485- Input
2 TOD1+ TOD1 RS-485+ Input 15 NC -
3 NC - 16 NC -
4 TOD2+ TOD2 RS-485+ Input 17 TOD2- TOD2 RS-485- Input
5 NC - 18 NC -
6 GND Ground 19 NC -
7 GND Ground 20 NC -
8 NC - 21 1PPS- 1PPS RS-485- Input
9 1PPS+ 1PPS RS-485+ Input 22 NC -
10 TFD Time Fault Discrete 23 GND Ground
11 TOD1 TOD1 TTL Input 24 1PPS 1PPS TTL Input
12 GND Ground 25 GND Ground
13 TOD2 TOD2 TTL Input
Table 5-20: 1204-1D, 1204-24 option cards: DB-25 pin-outs
STANAG Input: Edit Window
To configure a STANAG Input (also referred to as ‘Reference’), go to its Edit win-
dow. For instructions, see: "Configuring Option Card Inputs/Outputs" on
page364.
The Web UI list entries for this card are: STANAG In and STANAG In, Isolated.
The inputs are named: Stanag HQ Input [number].
