b. Remove blank option card plate, or existing option card. Save the screws.
c. Place one of the supplied washers over each of the two chassis screw holes
(see Figurebelow), then screw the 18mm standoffs (the longer standoffs)
into the chassis (see Figurebelow), applying a torque of 0.9Nm/8in-lbs.

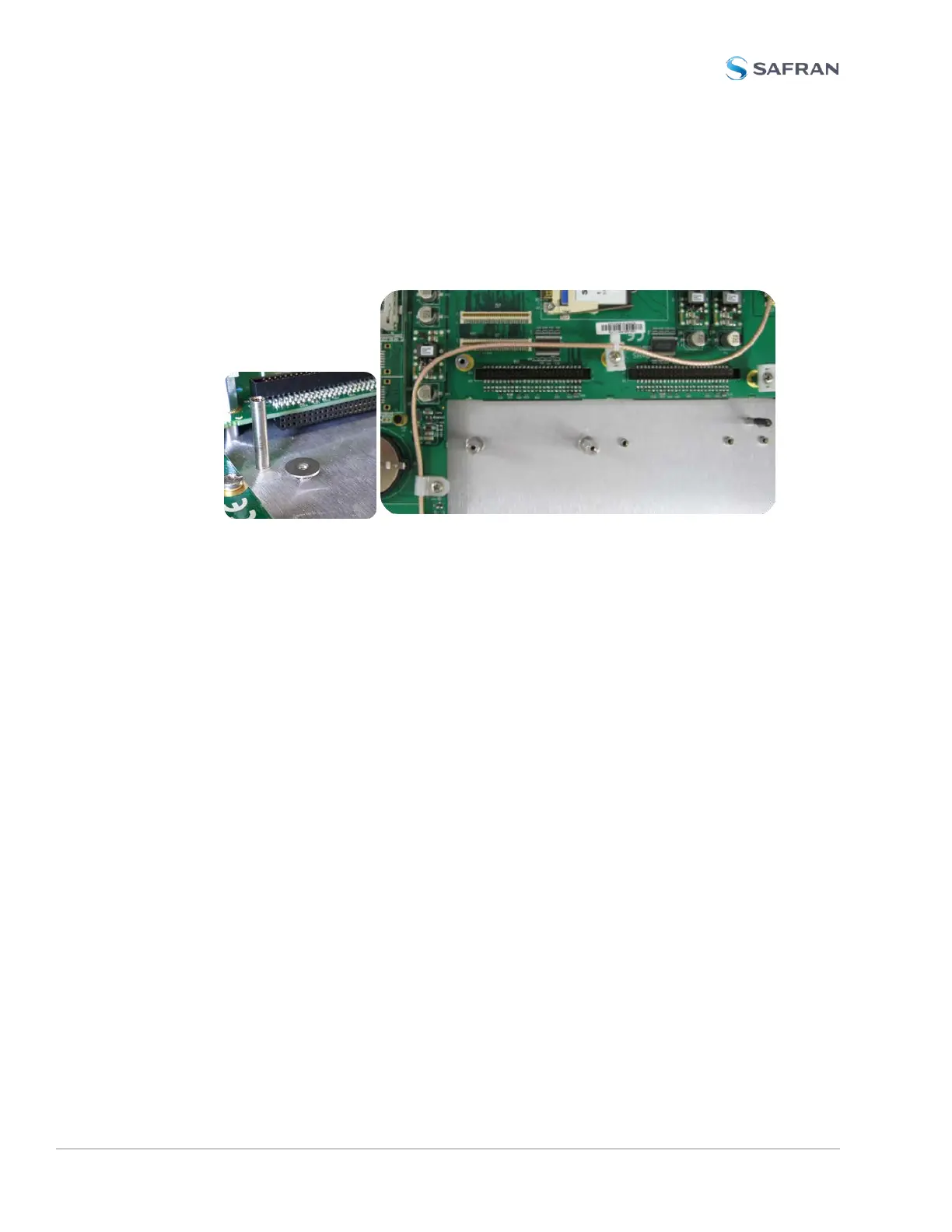

Figure 5-6: Washers & standoffs secured to chassis screw holes
d. Insert option card into the slot, lining up the screw holes on the card with
the standoffs.
e. Using the supplied M3 screws, screw the board into the standoffs, and the
option card plate into the chassis, applying a torque of 0.9Nm/8in-lbs.
f. Take the supplied 50-pin ribbon cable and carefully press it into the con-
nector on the mainboard (lining up the indicated end of the cable with PIN 1
on the mainboard), then into the connector on the option card (see
Figurebelow).
