Note: The double-wide NENA card can only be installed in slots 1 & 2
on the SecureSync 2400.
a. After installation in slots 1 and 2, connect the supplied cable, part number
8195-0000-5000, to the mainboard connector J19, pins 3 - 8.
Note: Pins 1 and 2 of connector J19 are not used:

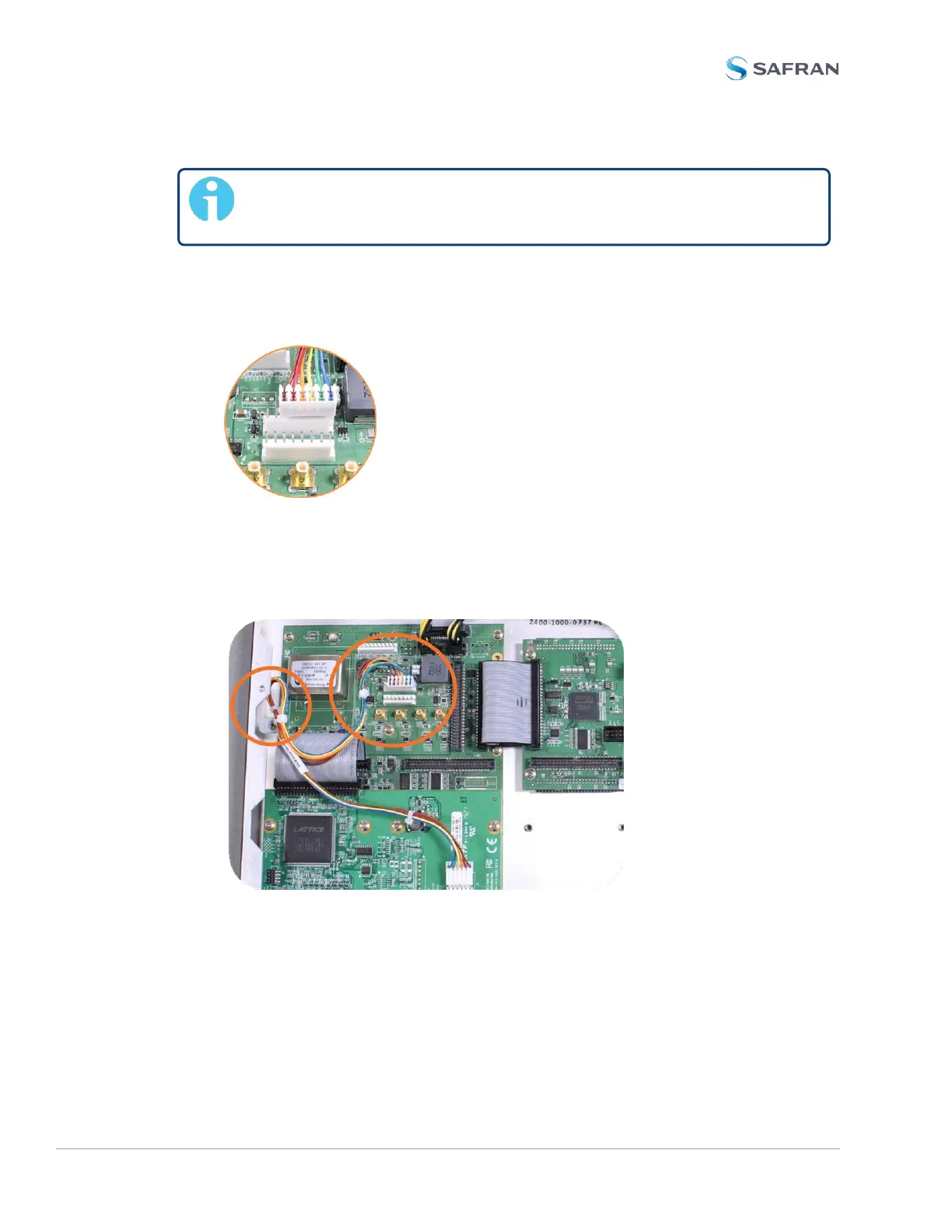

Figure 5-13: J19 Connector, seen from rear of unit.
b. Using the supplied cable ties, secure the cable, part number 8195-0000-
5000, from the option card to the white nylon cable tie holder fastened to
the mainboard (see figurebelow).
Figure 5-14: Cable routing
384 SecureSync 2400 User Manual
