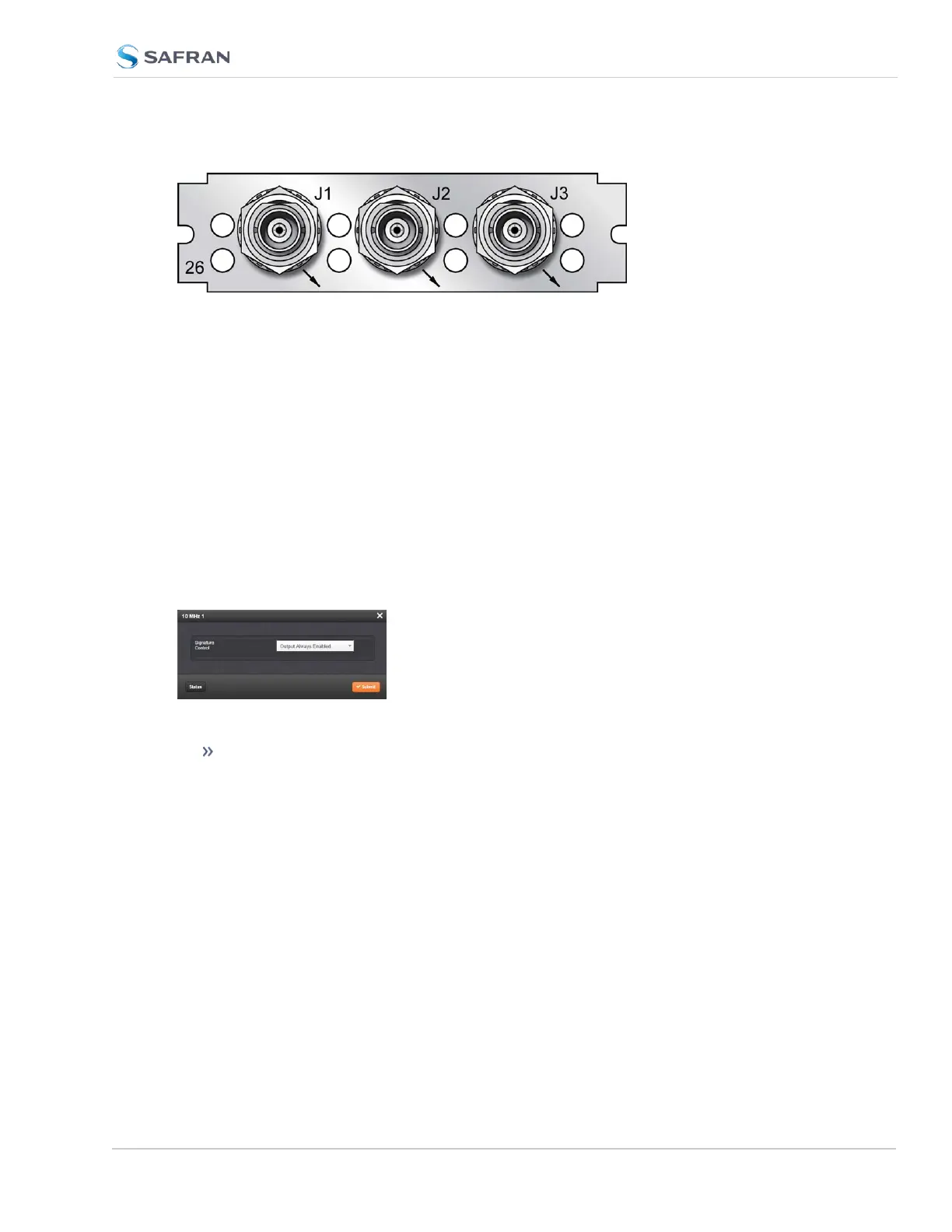

Figure 5-25: Model 1204-26 option card rear plate
The Frequency Out option cards each have 3 outputs, distributing a 1MHz signal,
5MHz or 10MHz signal (depending on the card model). All 3 outputs are con-
figured as a single output and will appear as such in the SecureSync Web UI,
numbered sequentially by card instance, starting with 0 (except the 10 MHz
option card, which starts with no.1 because of the built-in 10MHz output.)
Frequency Output: Edit Window
To configure the settings of a Frequency Output, go to its Edit window. For
instructions, see: "Configuring Option Card Inputs/Outputs" on page364.
The list entry for this card is named: 1/5/10MHz BNC (or: TNC)
The connector numbers are: J1…J3.
The Edit window allows the configuration of the following settings:
Signature Control: Controls when the output will be present; see "Sig-
nature Control" on page183.
Frequency Output: Status Window
To view the settings of a Frequency output, go to its Status window. For instruc-
tions, see: "Viewing Input/Output Configuration Settings" on page363.
The Web UI list entry for this card is named: 1/5/10MHz BNC (or: TNC).
The connector numbers are: J1…J3.
