RS232:
Output level: ± 5.0 V, impedance 300 Ω
Input level: -15 to 15 V (max), threshold 0.6 V min to 2.4 V max, imped-
ance 3 kΩ min
RS485 (2):
Output level: ± 1.5 V, impedance 54 Ω
Input level: -7 to 12 V (max), sensitivity - ± 200 mV, impedance 12 kΩ
min
Available Output Types: 1PPS, ASCII Time Code, IRIG (DCLS), IRIG (AM),
HAVEQUICK, GPO
Available Input ("Reference") Types: 1PPS, ASCIITime Code, HAVEQUICK, IRIG
(DCLS)
Pinout:

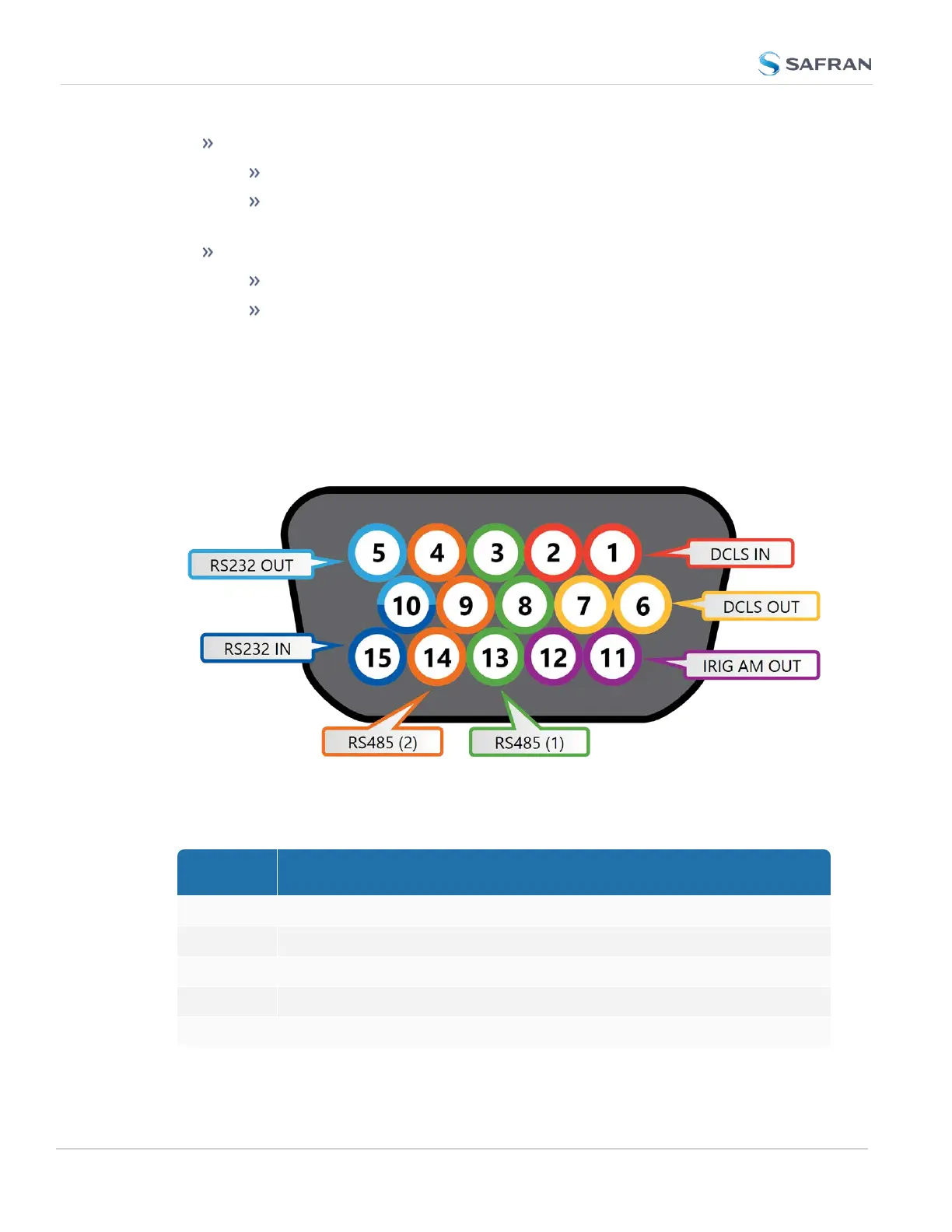

Figure 1-7: Multi I/O connector, viewed in mating direction on rear of unit
Table 1-9: Multi I/O connector signal pinout
Pin Signal
1 DCLS IN
2 GND
3 (First signal) RS485 A, non-inverting
4 (Second signal) RS485 A, non-inverting
5 RS232 TX OUT
