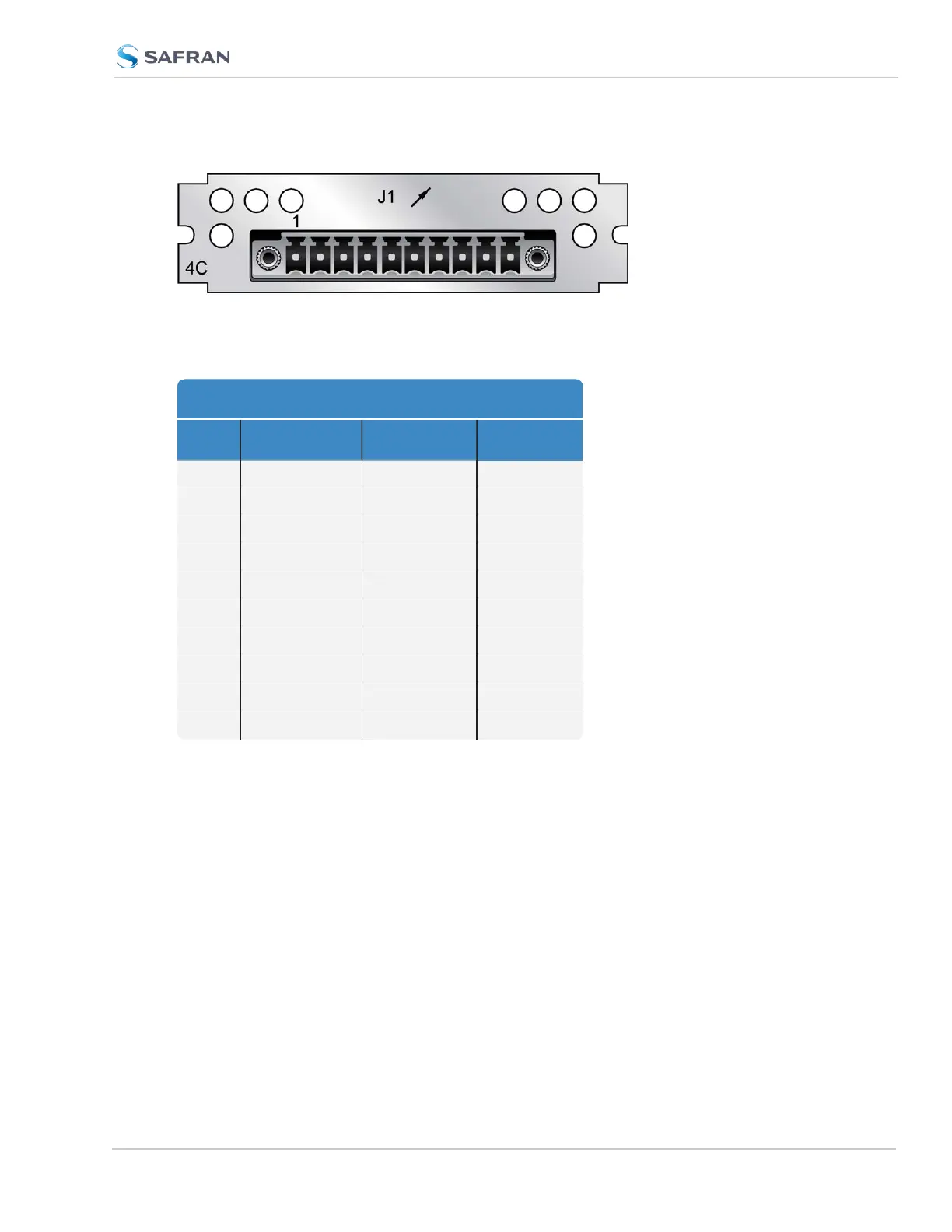

Figure 5-37: Model 1204-4C option card rear plate
Table 5-15: 1204-4C option card pin assignments
Pin Assignments
Pin No. Signal Function Description
1 GND Ground Ground
2 T1/E1 output A1 GR-499/G.703 Tip
3 T1/E1 output B1 GR-499/G.703 Ring
4 T1/E1 output A2 GR-499/G.703 Tip
5 T1/E1 output B2 GR-499/G.703 Ring
6 T1/E1 output A3 GR-499/G.703 Tip
7 T1/E1 output B3 GR-499/G.703 Ring
8 T1/E1 output A4 GR-499/G.703 Tip
9 T1/E1 output B4 GR-499/G.703 Ring
10 GND Ground Ground
E1/T1 Output: Edit Window
To configure an E1/T1 data output (1.544/2.048MHz clock on J1 BNC connector
and unbalanced E1/T1 outputs on J2 to J3 BNC connectors, or all terminal block J1
outputs), navigate to its Edit window. For instructions, see: "Configuring Option
Card Inputs/Outputs" on page364.
In the Web UI this card is listed under: E1/T1 Out BNC and E1/T1 OUT Terminal.
