Optical Connector: ST
Accuracy: n/a
Number of Cards: Up to 6
Ordering Information: 1204-27, IRIG module, Fiber Optic ST Connector
IRIG In/Out, Fiber Opt. [1204-27]: Output Specifications
Signal: IRIG A, B, E, G or NASA-36, (DCLS only, unmodulated)
Operating Wavelength: 820/850 nm
Optical Power: -15dBm average into 50/125 fiber
Fiber Optic Compatibility: 50/125μm, 62.5/125μm multi-mode cable
Optical Connector: ST
Accuracy: see "IRIG Output Accuracy Specifications" on page604
Number of Cards: Up to 6
Ordering Information: 1204-27, IRIG module, Fiber Optic ST Connector

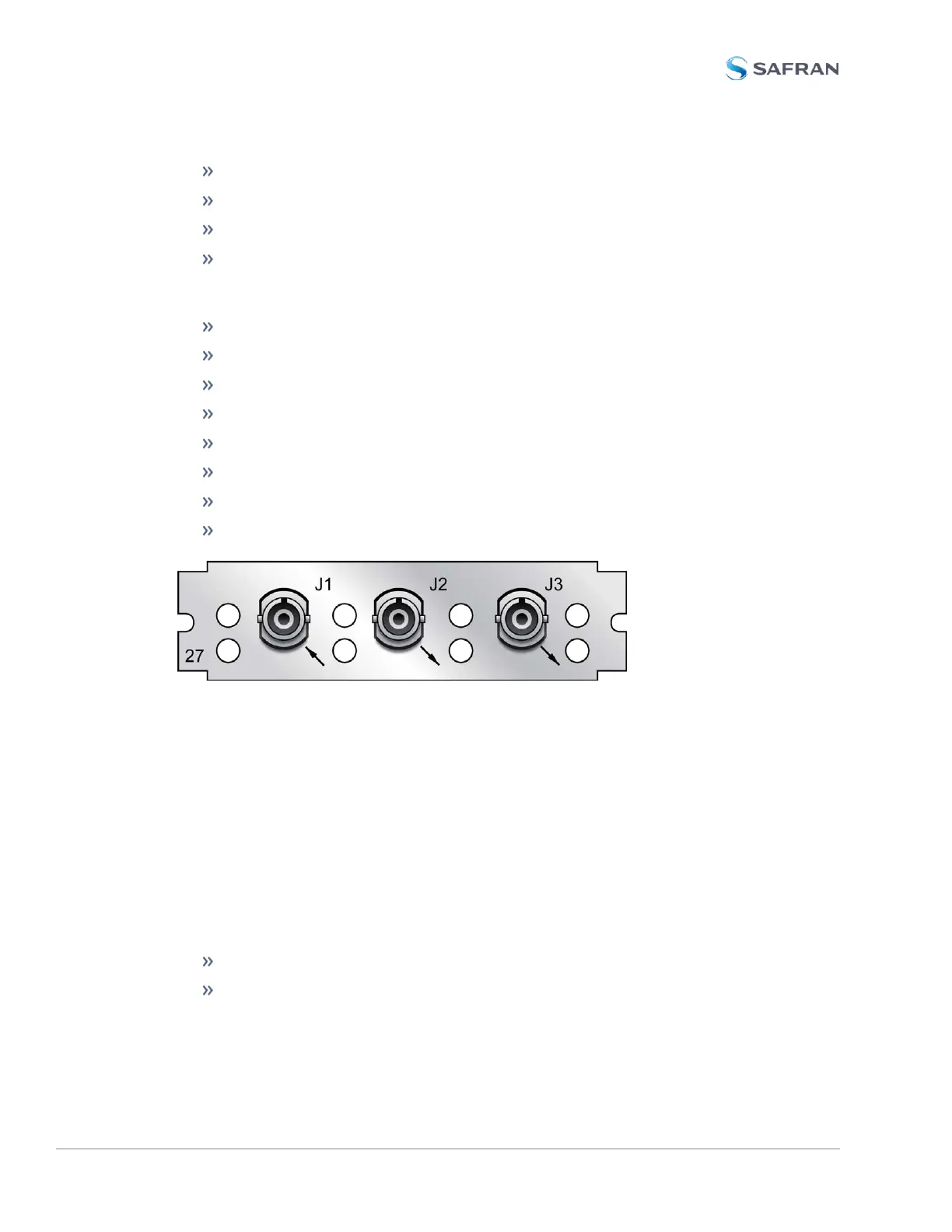

Figure 5-42: Model 1204-27 option card rear plate
Supported IRIG Formats
The IRIG option cards models 1204-05 and -27 support IRIG input and output
formats A, B, and G (DCLS). IRIG-E is also available as an output, and the 1204-05
card supports A, B, E, G, and AM formats (see the following tables). Additionally,
the cards support inputs with frequency/resolution values of no carrier/index
count interval, 1kHz/1ms, 10kHz/0.1ms, and 100kHz/10ms, as well as IRIG input
coded expressions of the fields BCD
TOY
, CF, SBS, and BCD
YEAR
.
The IRIG inputs support the following coded expression combinations for
BCD
TOY
, CF, SBS, and BCD
YEAR
fields:
0 – BCD
TOY
, CF, SBS
1 – BCD
TOY
, CF
