Pin No. Signal Function Pin No. Signal Function
11 TOD1 TOD1 TTL Out 24 1PPS 1PPS TTL Out
12 GND Ground 25 GND Ground
13 TOD2 TOD2 TTL Out
Table 5-19: Models 1204-11, -25: DB-25 pin-out

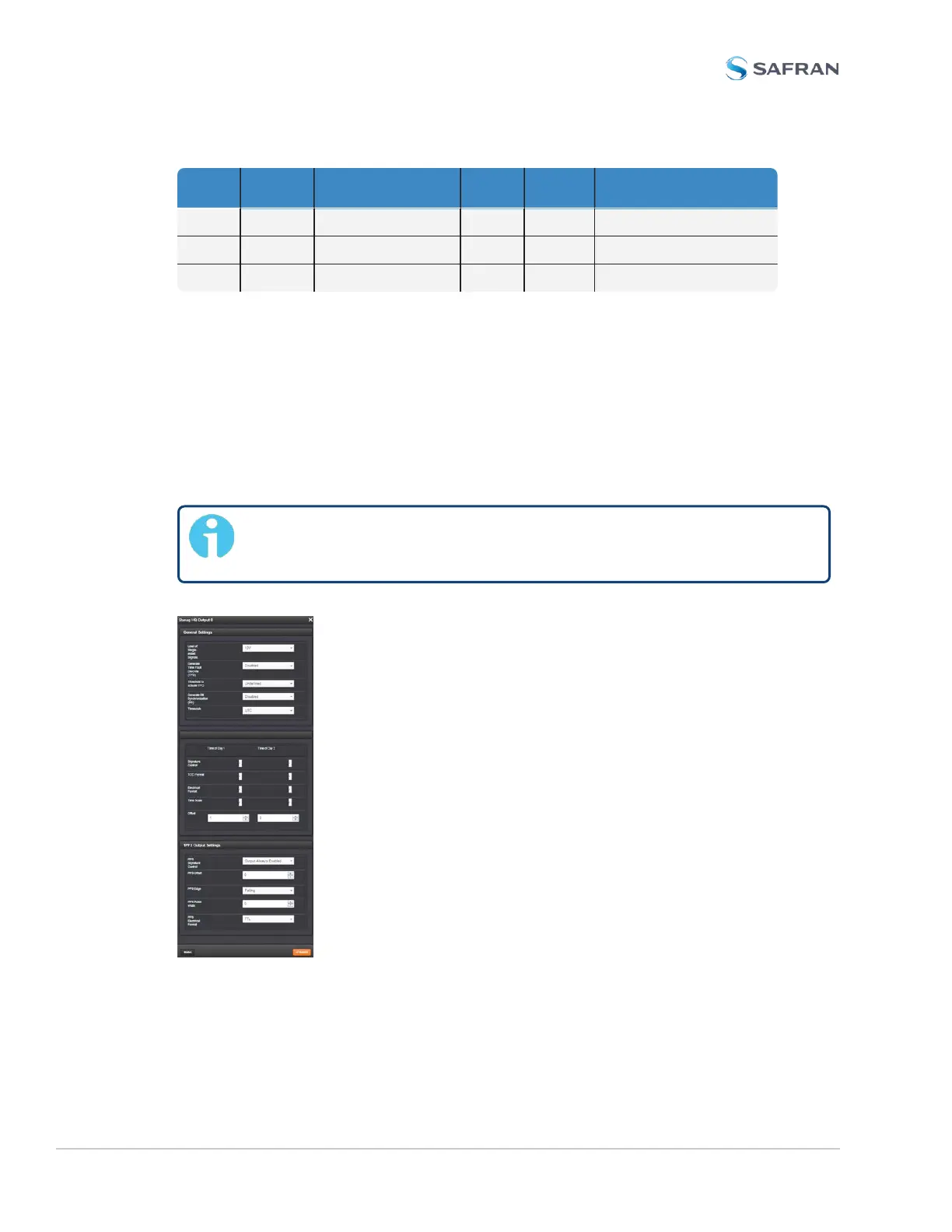

STANAG Output: Edit Window
To configure a STANAG output, go to its Edit window. For instructions, see: "Con-
figuring Option Card Inputs/Outputs" on page364.
The Web UI list entries for these cards are: STANAG Out and STANAG Out, Isol-
ated.
The outputs are named: Stanag HQ Output [number].
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and
10MHz outputs start at1, because of the built-in outputs).
The Edit window allows the configuration of the following settings:
