PPS Pulse Width: Configures the Pulse Width of the 1PPS output. The Pulse
Width is entered and displayed in nanoseconds (the default Pulse Width is
200 ms).
PPS Electrical Format: Selects signaling on either RS-485 or TTL (sup-
porting up to 10V levels) signal lines.

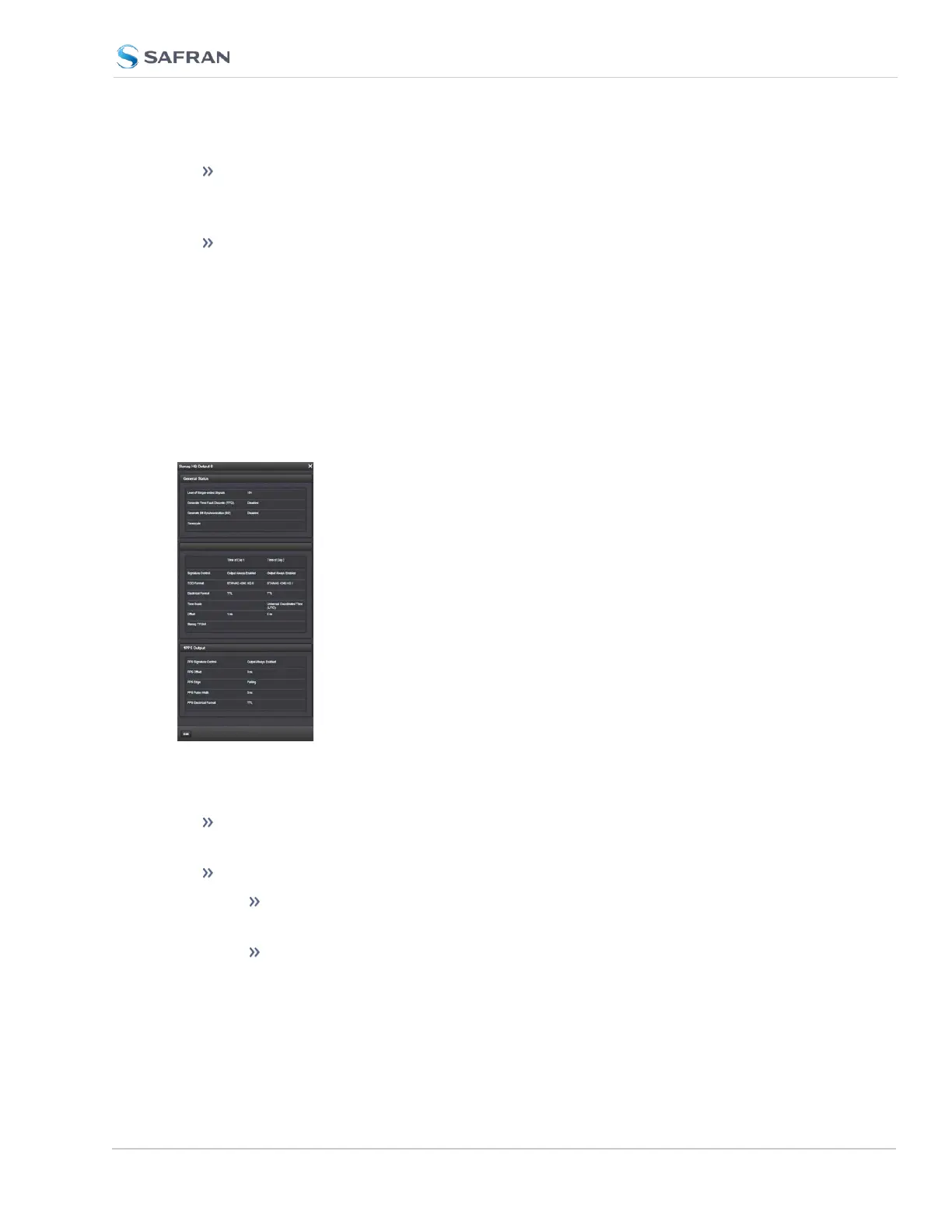

STANAG Output: Status Window
To view the current settings of a STANAG Output, go to its Status window. For
instructions, see: "Viewing Input/Output Configuration Settings" on page363.
The Web UI list entries for these cards are: STANAG Out and STANAG Out, Isol-
ated.
The outputs are named: Stanag HQ Output [number].
The Status window displays the following settings:
Under General Status:
Level of Single-ended Signals: 10V or 5V will be indicated for the TOD 1
and 1PPS Output.
Generate Time Fault Discrete (TFD):
Enabled: The TFD signal uses the “Threshold to activate” value to
provide the level of TFD.
Disabled: The TFD signal is always valid.
SecureSync 2400 User Manual 459
APPENDIX
