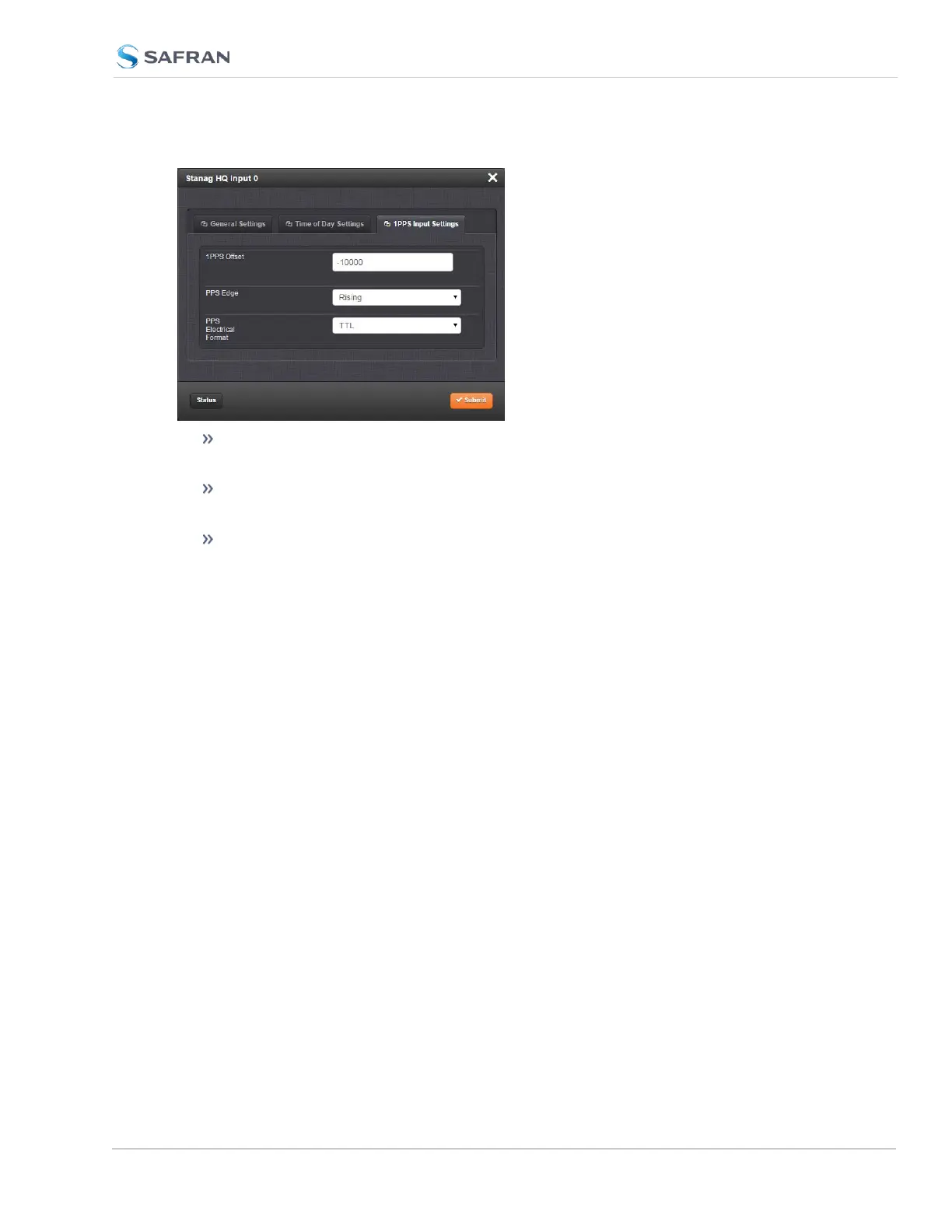

1PPS Offset: Used to account for 1PPS cable delays or other latencies in the
1PPS input. Available Offset range is –500 to +500ms in 5ns steps
PPS Edge: The operator can select if the output signal is a rising or falling
edge pulse.
PPS Electrical Format: Selects synchronization to either RS-485 or TTL
(supporting up to 10V levels) signal lines.
STANAG Input: Status Window
To view the current settings of a STANAG Input (also referred to as ‘Reference’),
go to its Status window. For instructions, see: "Viewing Input/Output Con-
figuration Settings" on page363.
The Web UI list entries for this card are: STANAG In and STANAG In, Isolated.
The inputs are named: Stanag HQ Input [number].
