GPS: The raw GPS time as transmitted by the GNSS satellites (as of
22-August-2023, this is 18 seconds ahead of UTC time).
Offset: Provides the ability to account for HAVE QUICK cable delays or
other latencies in the HAVE QUICK outputs. The Offset values are entered
in nanoseconds (ns). The available Offset range is –500 to +500 ms.
TFOM: The Time Figure of Merit for the input.
HAVE QUICK Output: Edit Window
To configure the settings of a HAVE QUICK Output, go to its Edit window. For
instructions, see: "Configuring Option Card Inputs/Outputs" on page364.
The Web UI list entry for this card is: HAVE QUICK In/Out.
Outputs are named: HQ Output [number].

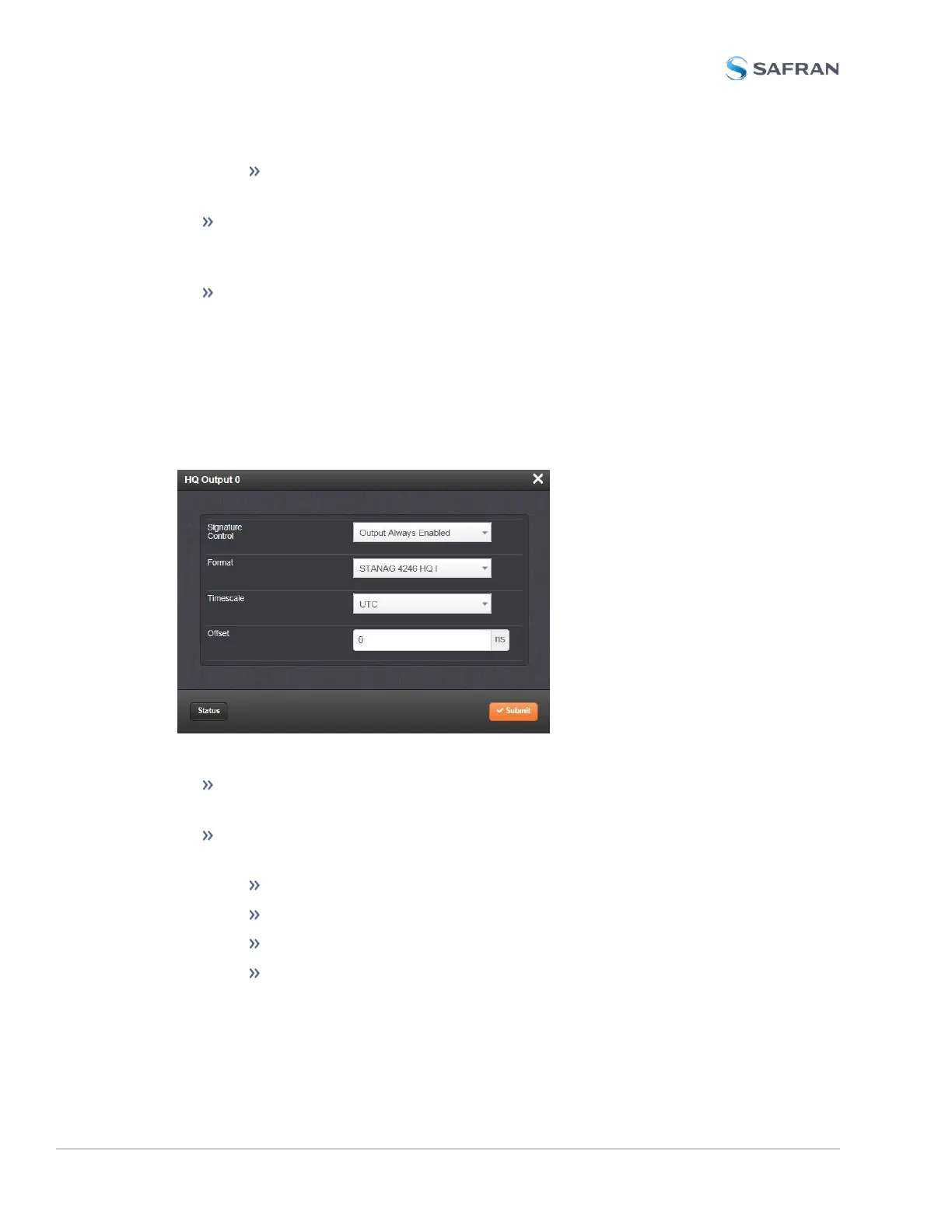

The Edit window allows the configuration of the following settings:
Signature Control: Signature Control is used to control when the HAVE
QUICK modulation is present, see "Signature Control" on page183.
Format: Used to configure the formatting of the four available HAVE
QUICK outputs. The available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
STANAG 4372 HQ IIA
STANAG 4430 Ext HQ (Extended HAVE QUICK)
