The DC ancillary kit includes, among other things, the following connector parts:
Mating 12 V
DC
Connector, circular, 2-pin, solder socket, 16AWG,13A,300V:
Amphenol P/N 97-3106A10SL-4S(946); (Safran P/N P240R-0021-000G)
OR, Mating 24/48 V
DC
Connector, circular, 3-pin, solder socket,
16AWG,13A,300V: Amphenol P/N DL3106A10SL-3S; (Safran part no.
P240R-0032-002F):

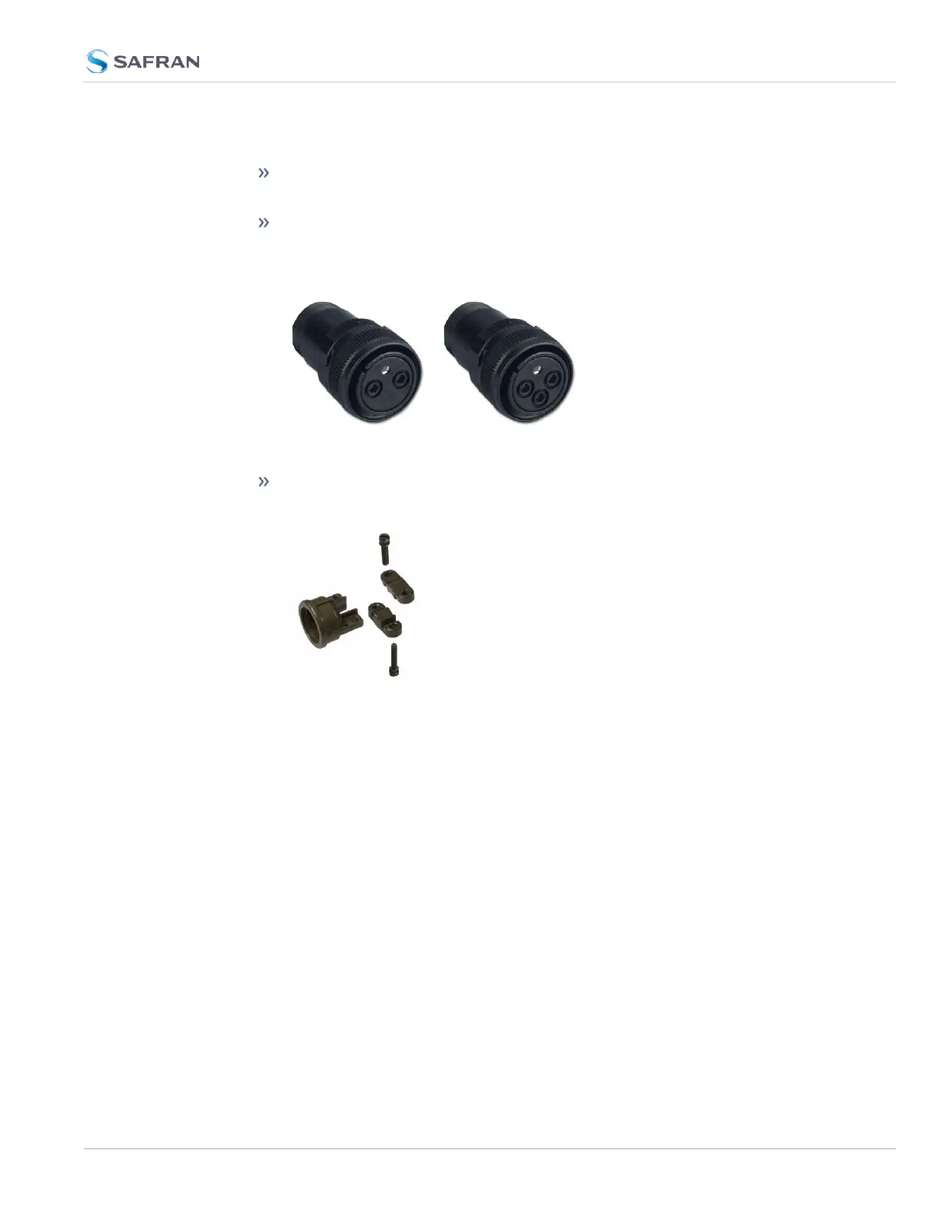

Figure 2-4: DC Connector, 2-Pin and DC Connector, 3-Pin
Cable Clamp, circular: Amphenol P/N: 97-3057-1004(621); (Safran part no.
MP06R-0004-0001)
Figure 2-5: Cable Clamp, DC Power
Pinout description, DC connectors
Pin B goes to the most positive DC voltage of the DC source. For +12V or
+24/48V this would be the positive output from the DC source. For a -12V or -
24/48V
DC
source this would be the ground or return of the DC source.
Pin A goes to the most negative voltage of the DC source. For +12V or +24/48V
this would be the ground or return output from the DC source. For a -12V or -
24/48V
DC
source this would be the negative output from the DC source.
Pin C goes to the Earth ground of the DC source (on +24/48 V units ONLY).
The grounding post provides an earth ground for the +12 V power supply (using
a customer-supplied grounding ring)
