SINAMICS G120 Control Units CU240B-2/CU240E-2 List Manual (LH11), 01/2016, A5E33839529
583
3 Function diagrams
3.4 PROFIenergy

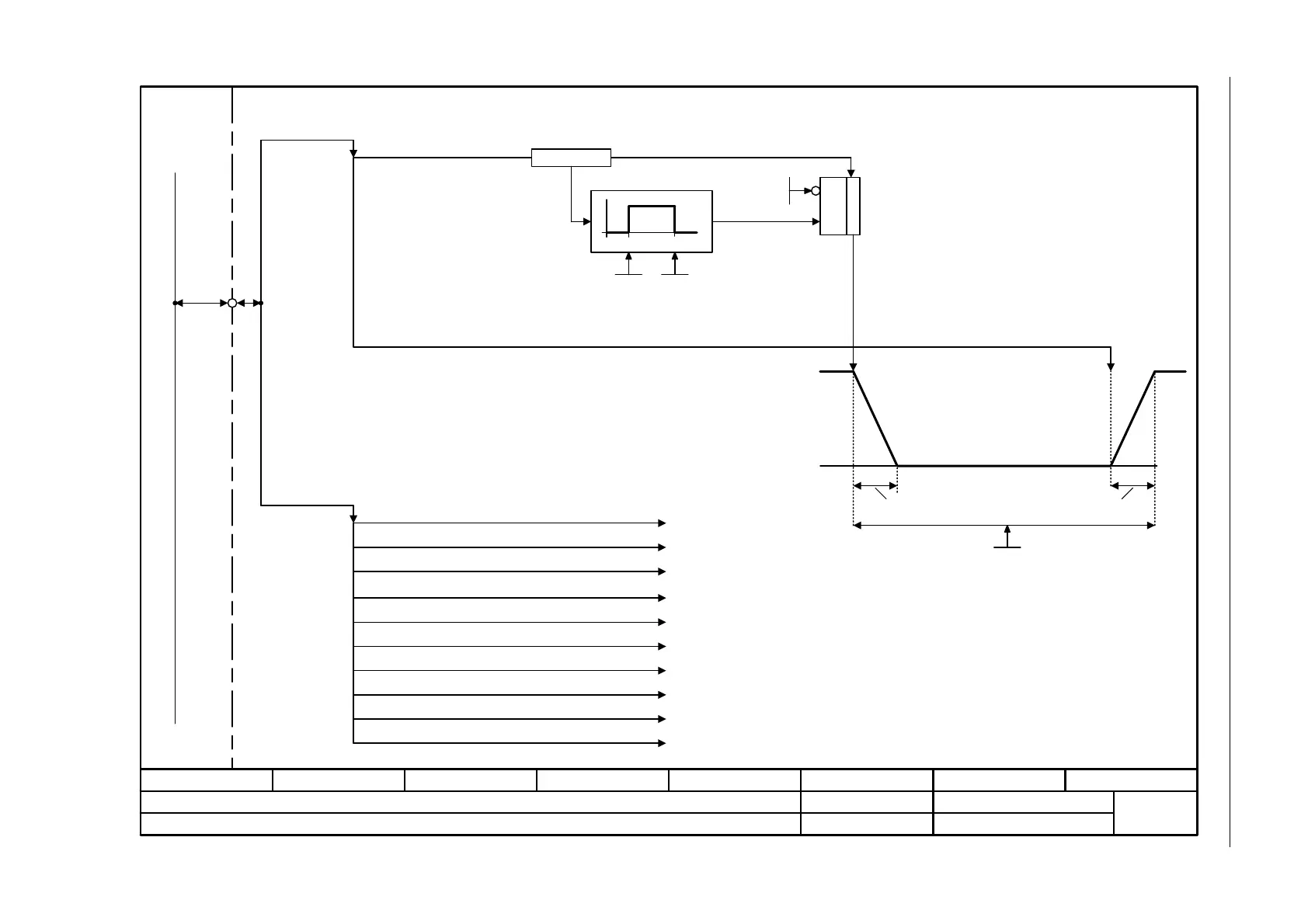

Fig. 3-19 2381 – Control commands and interrogation commands
- 2381 -
Function diagram
87654321
fp_2381_97_62.vsd
PROFIenergy
G120 CU240E-2_PN
09.12.2015 V4.7.6
Control commands and interrogation commands
PROFINET
Port 1
Port 2
PROFIenergy
interrogation commands
[2382]
PROFIenergy
control commands
"Start_Pause_with_time_response"
"End_Pause"
"List_Energy_Saving_Modes“
"Get_Mode“
"PEM_Status“
"PE_Identify“
"Query_Version“
"Get_Measurement_List“
"Get_Measurement_Values“
"Get_Measurement_Values_with_object_number“
"Get_Measurement_List_with_object_number“
"PEM_Status_with_CTTO“
Pe mod t_pause min
p5602
p5611.0
Ready for operation
r5600 = 255
r5600 = 2
Energy-saving mode 2
1 = Inhibit
PROFIenergy
Pause_Time
&
Time_to_pause Time_to_operate
1
0
min max
p5606
+ Time_to_pause
+ Time_to_operate
p5602
"Start_Pause"
