3 Function diagrams

3.20 Diagnostics

SINAMICS G120 Control Units CU240B-2/CU240E-2

758 List Manual (LH11), 01/2016, A5E33839529

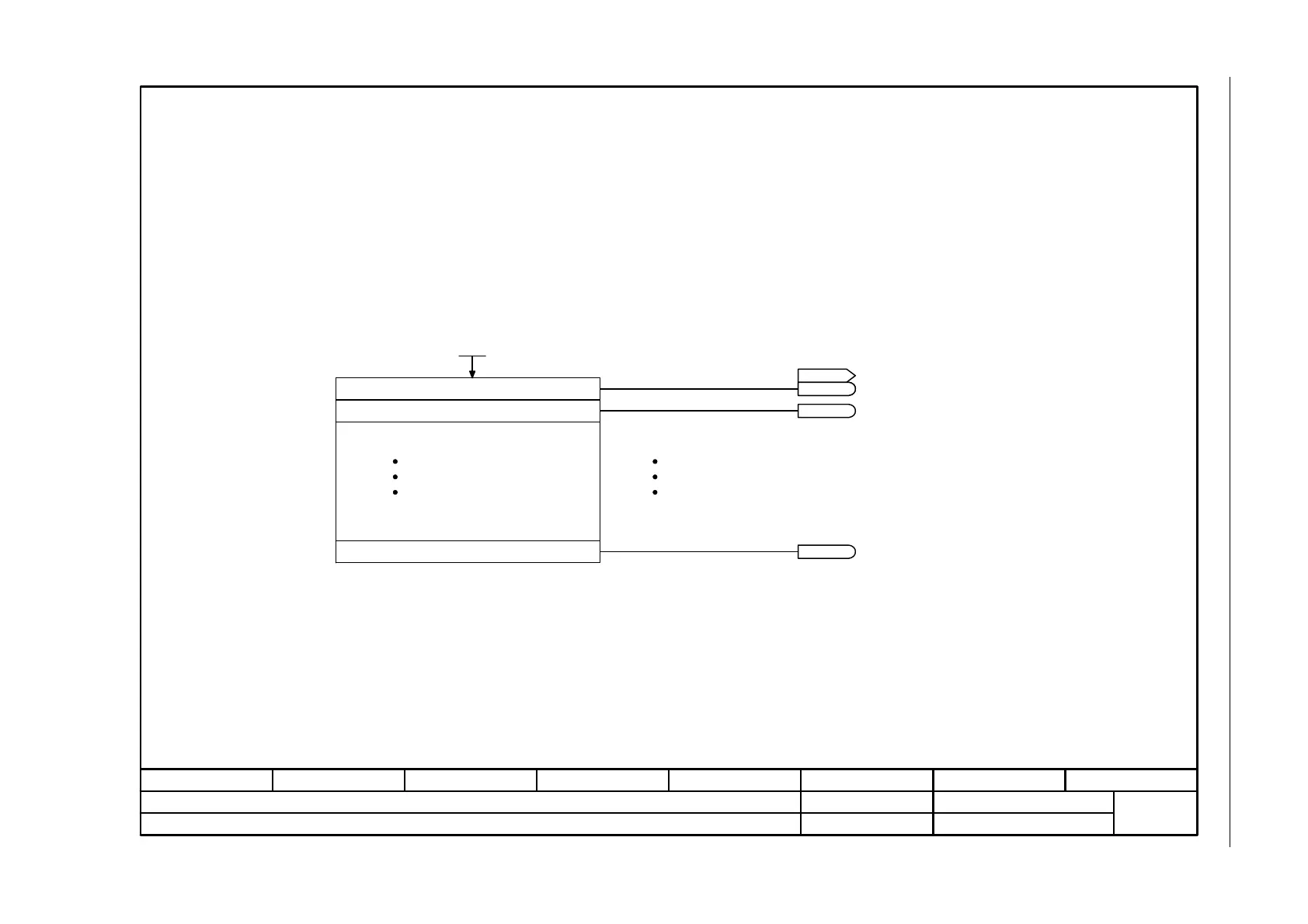

Fig. 3-178 8070 – Faults/alarms trigger word (r2129)

- 8070 -

Function diagram

87654321

fp_8070_97_61.vsd

Diagnostics

G120 CU240B/E-2

09.12.2015 V4.7.6

Faults/alarms trigger word (r2129)

[0]

[1]

[15]

r2129.15

r2129.1

0. Fault/alarm code

1. Fault/alarm code

15. Fault/alarm code

Setting fault/alarm trigger

1. Message/signal present

0. Message/signal present

15. Message/signal present

Fault/alarm trigger word

(e.g. as trigger condition to record traces)

F/A trigger sel

0 ... 65535

p2128 (0)

F/A trigger word

r2129

r2129.0
