Siemens CU240B-2 List Manual

3 Function diagrams 3.18 Technology controller
SINAMICS G120 Control Units CU240B-2/CU240E-2
736 List Manual (LH11), 01/2016, A5E33839529

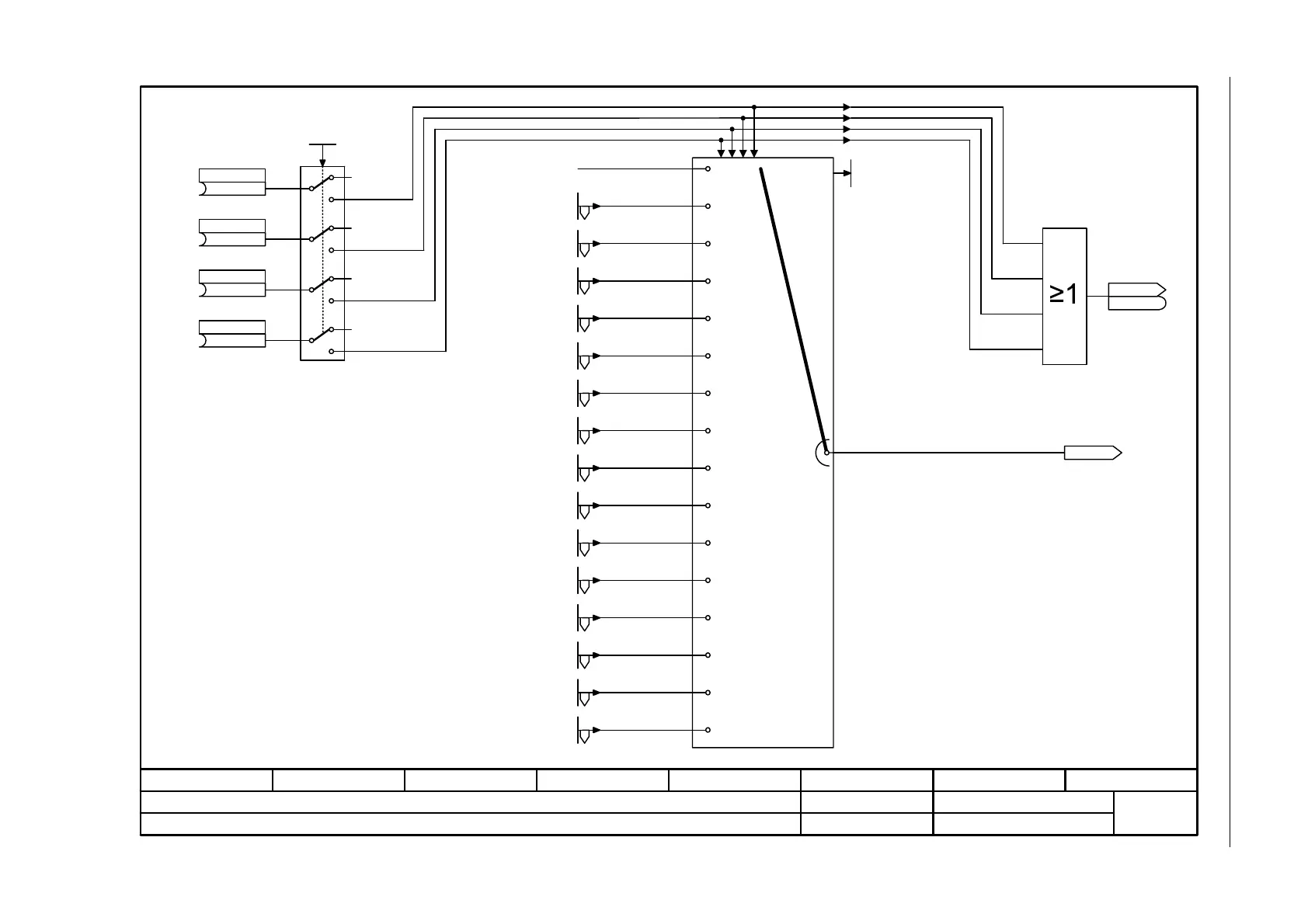

Fig. 3-158 7950 – Fixed value selection binary (p2216 = 2)
- 7950 -
Function diagram
87654321
fp_7950_97_51.vsd
Technology controller
G120 CU240B/E-2
09.12.2015 V4.7.6
Fixed value selection binary (p2216 = 2)
0 1 1 0
1 0 1 0
1 1 0 0
1 1 1 0
0 0 0 1
0 0 1 0
0 0 0 0
0 1 0 0
1 0 0 0
0.00 %
0 1 1 1
1 1 1 1
1 1 0 1
1 0 1 1
0 0 1 1
0 1 0 1
1 0 0 1
0 ... 15
2
0
2
3
(0)
Tec_ctrl sel bit 0
p2220 [C]
(0)
Tec_ctrl sel bit 1
p2221 [C]
(0)
Tec_ctrl sel bit 2
p2222 [C]
(0)
Tec_ctrl sel bit 3
p2223 [C]
Tec_ctrl No. act
r2229
r2224
Tec_ctr FixVal eff [%]
Tec_ctr FixVal ZSW
r2225
r2225
.0
Tec_ctrl fix val1 [%]
p2201 [D] (10.00)
Tec_ctr fix val 2 [%]
p2202 [D] (20.00)
Tec_ctr fix val 3 [%]
p2203 [D] (30.00)
Tec_ctr fix val 4 [%]
p2204 [D] (40.00)
Tec_ctr fix val 5 [%]
p2205 [D] (50.00)
Tec_ctr fix val 6 [%]
p2206 [D] (60.00)
Tec_ctr fix val 7 [%]
p2207 [D] (70.00)
Tec_ctr fix val 8 [%]
p2208 [D] (80.00)
Tec_ctr fix val 9 [%]
p2209 [D] (90.00)
Tec_ctr fix val 10 [%]
p2210 [D] (100.00)
Tec_ctr fix val 11 [%]
p2211 [D] (110.00)
Tec_ctr fix val 12 [%]
p2212 [D] (120.00)
Tec_ctr fix val 13 [%]
p2213 [D] (130.00)
Tec_ctr fix val 14 [%]
p2214 [D] (140.00)
Tec_ctr fix val 15 [%]
p2215 [D] (150.00)
Tec_ctr FixVal sel
1 ... 2
p2216 [D] (1)
[7951]
1
1
1
1
2
2
2
2
[7951]
[7951]
[7951]
