Setting up the machine
2.7 Work offsets
Milling
104 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
Note
Activate base offsets
The offsets specified here are immediately active.
2.7.4 Displaying and editing settable zero offset
All settable offsets, divided into coarse and fine offsets, are displayed in the "Work Offset -
G54..G599" window.
Rotation, scaling and mirroring are displayed.

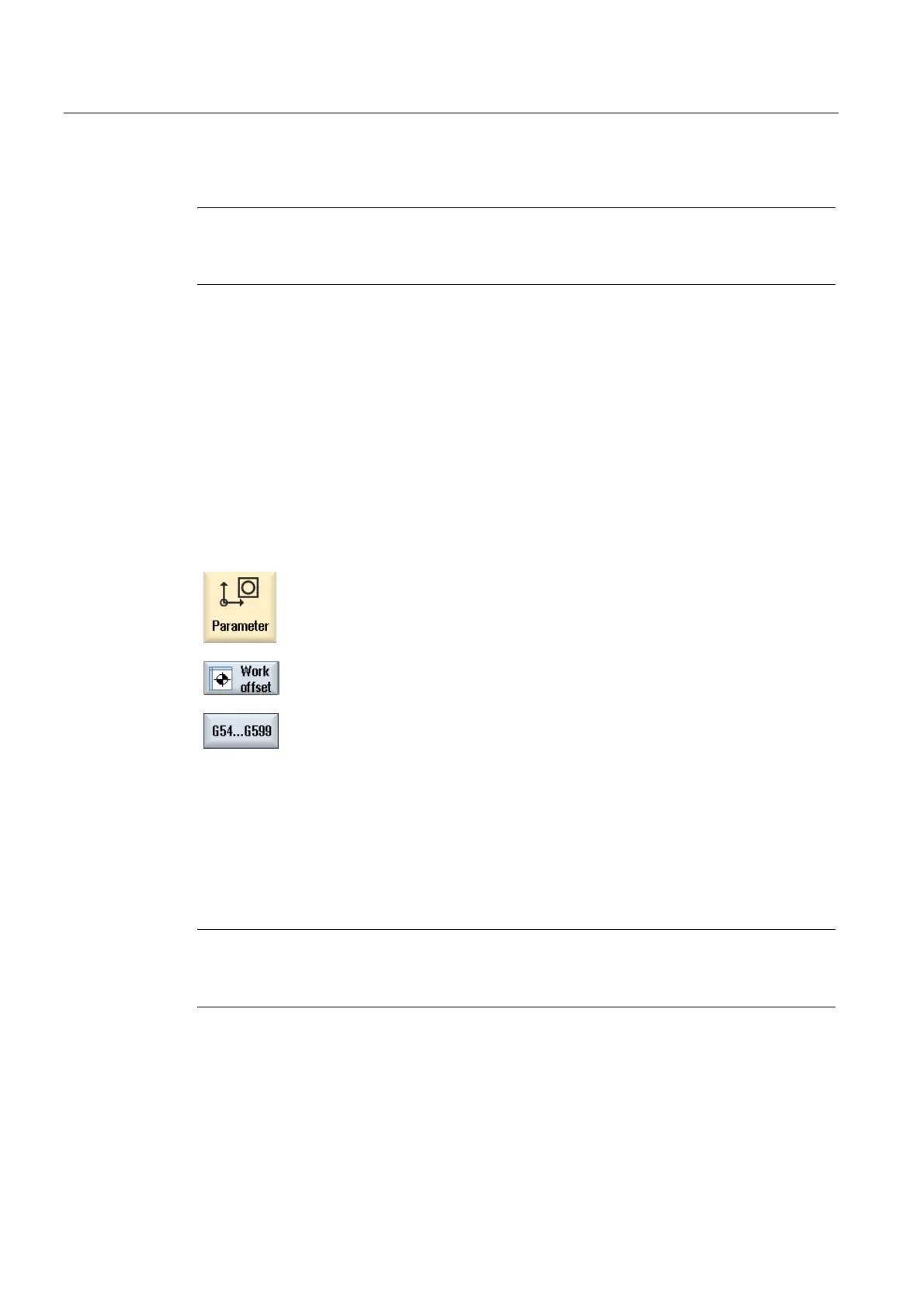

Procedure
1. Select the "Parameter" operating area.
2. Press the "Work offset" softkey.
3. Press the "G54…G599" softkey.
The "Work Offset - G54..G599" window is opened.
Note
The labeling of the softkeys for the adjustable work offsets varies, i.e.
the selectable work offsets configured at the machine are displayed
(examples: G54…G57, G54…G505, G54…G599).
Please observe the machine manufacturer's specifications.
4. You can edit the values directly in the table.
Note
Activate settable work offsets
The settable work offsets must first be selected in the program before they have an impact.
