Programming technological functions (cycles)

8.7 Further cycles and functions ShopMill

Milling

424 Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

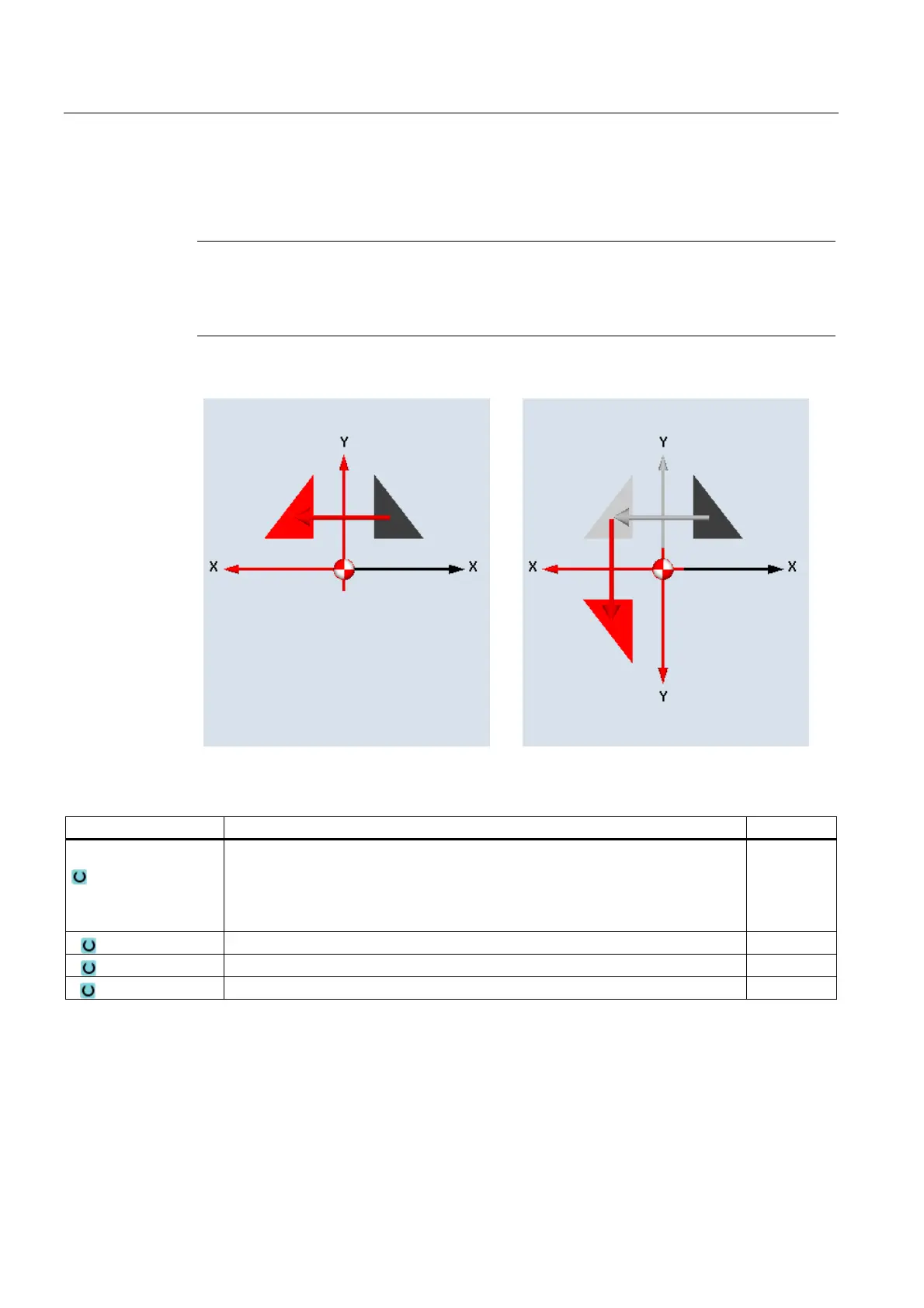

8.7.5 Mirroring

Furthermore, you can mirror all axes. Enter the axis to be mirrored in each case.

Note

Travel direction of the milling cutter

Note that with mirroring, the travel direction of the cutting tool (conventional/climbing) is also

mirrored.

New mirroring

Additive mirroring

Parameter Description Unit

Mirroring

 New

New mirroring

 Additive

Additive mirroring

X Mirroring of the X axis, on/off

Y Mirroring of the Y axis, on/off

Z Mirroring of the Z axis, on/off
