Execution in manual mode

3.2 Selecting a tool and spindle

Milling

Operating Manual, 03/2010, 6FC5398-7CP20-1BA0

119

3.2.2 Selecting a tool

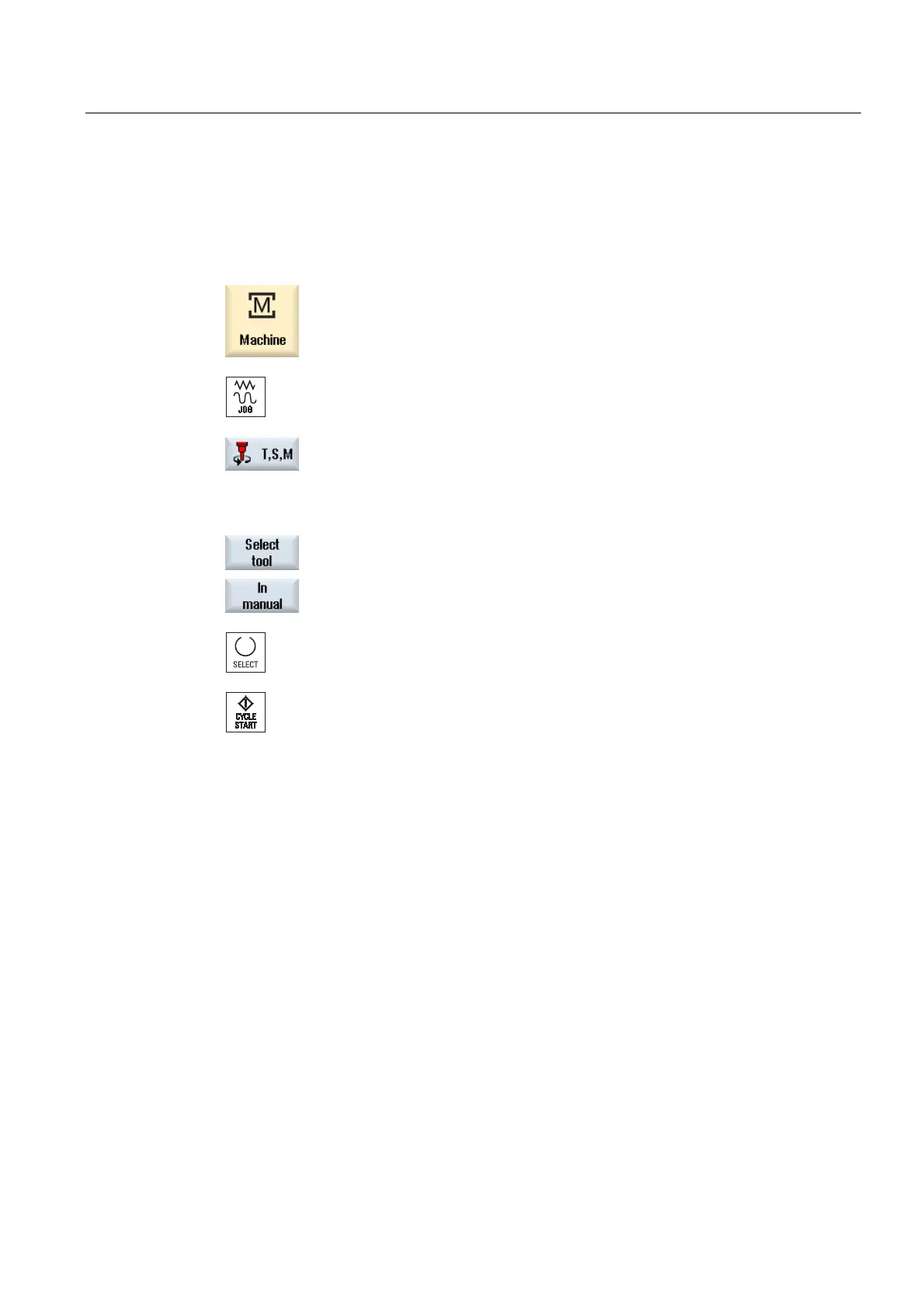

Procedure

1. Select the "JOG" operating mode.

2. Press the "T, S, M" softkey.

3. Enter the name or the number of the tool T in the input field.

- OR -

Press the "Select tool" softkey to open the tool list, position the cursor

on the desired tool and press the "In Manual" softkey.

The tool is transferred to the "T, S, M... window" and displayed in the

field of tool parameter "T".

4. Select tool edge D or enter the number directly in field "D".

5. Press the <CYCLE START> key.

The tool is loaded into the spindle.
