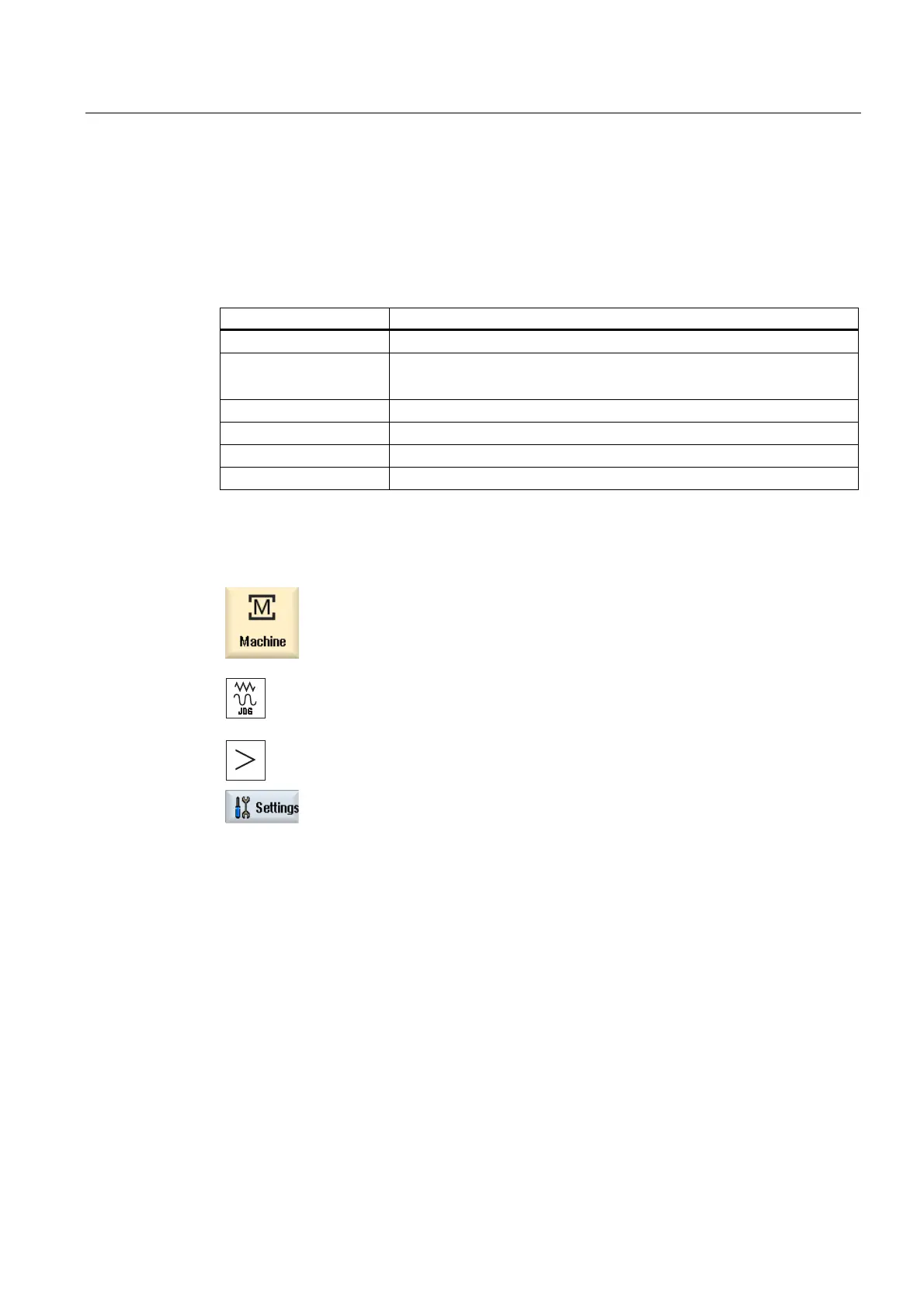

Page #133 background image
Execution in manual mode
3.7 Default settings for manual mode
Milling
Operating Manual, 03/2010, 6FC5398-7CP20-1BA0
133
3.7 Default settings for manual mode
Specify the configurations for manual mode in the "Settings for manual operation" window.
Presettings
Settings Description
Type of feedrate Here, you select the type of feedrate.
G94: Axis feedrate/linear feedrate
G95: Rev. feedrate
Default feedrate G94 Enter the desired feedrate in mm/min.
Default feedrate G95 Enter the desired feedrate in mm/r.
Variable increment Enter the desired increment for axis traversal by variable increments.
Spindle speed Enter the desired spindle speed in rpm.
Proceed as follows
1. Select the "Machine" operating area.
2. Press the <JOG> key.
3. Press the menu forward key and the "Settings" softkey.
The "Settings for manual operation" window is opened.
