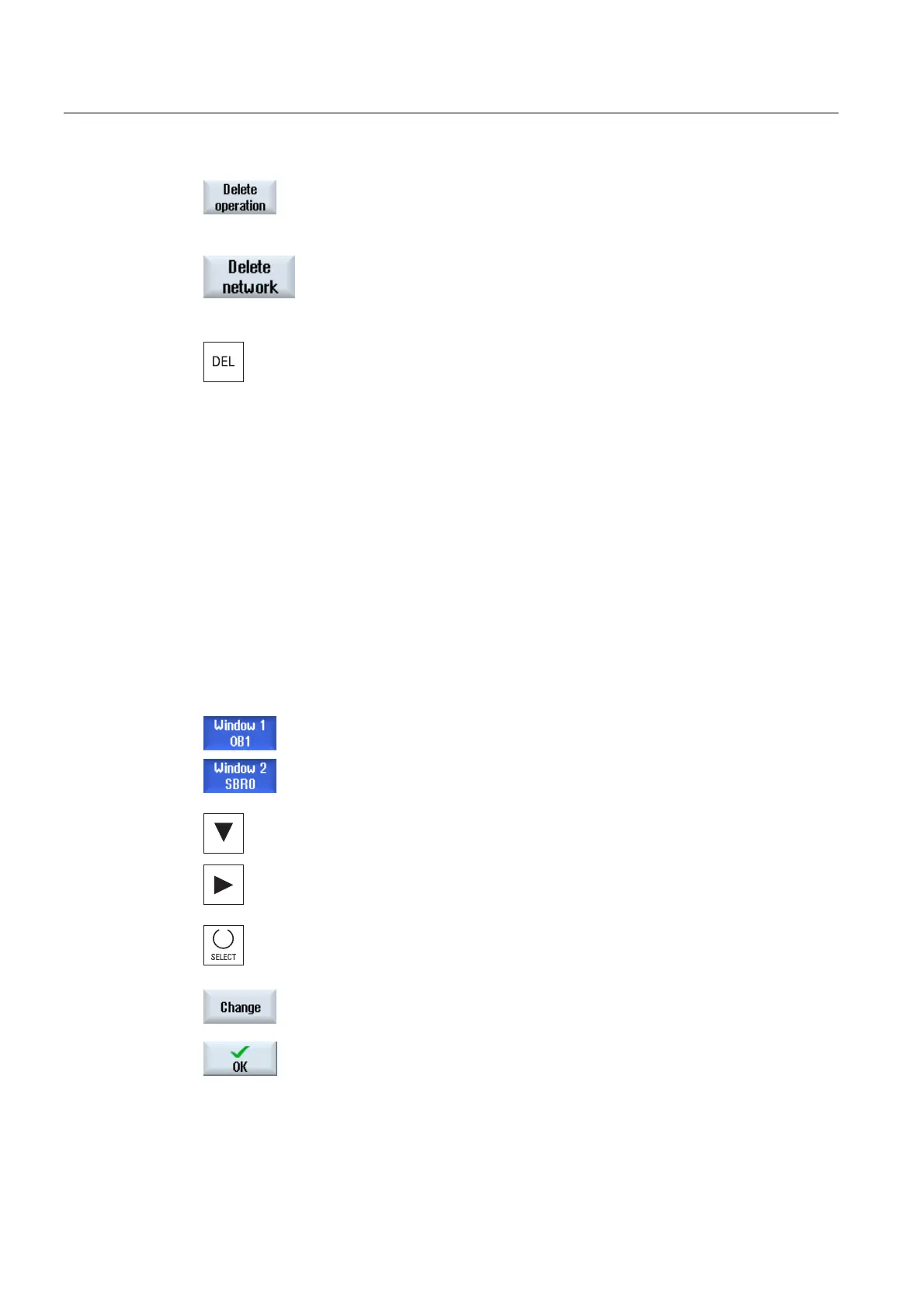

9. Position the cursor on the operation that you want to delete and press
the "Delete operation" softkey.
- OR -
Position the cursor on the title of the network that you want to delete
and press the "Delete network" softkey.
- OR -
Press the <DEL> key.
The network, including all the logic operations and operands, or the
selected operation is deleted.
19.13 Editing network properties
You can edit the network properties of an INT block.
Network title and network comment
The title can have a maximum of three lines and 128 characters. The comment can have a
maximum of 100 lines and 4096 characters.
Procedure
1. The ladder diagram display (LAD) is opened.
2. Use the cursor keys to select the network that you want to edit.
3. Press the <SELECT> key.
The "Network title / comment" window opens and shows the title and a
possibly assigned comment for the selected network.
5. Press the "Change" softkey.
The fields can be edited.
6. Enter the changes and press the "OK" softkey to transfer the data to
the user program.
